Category :
Transmission

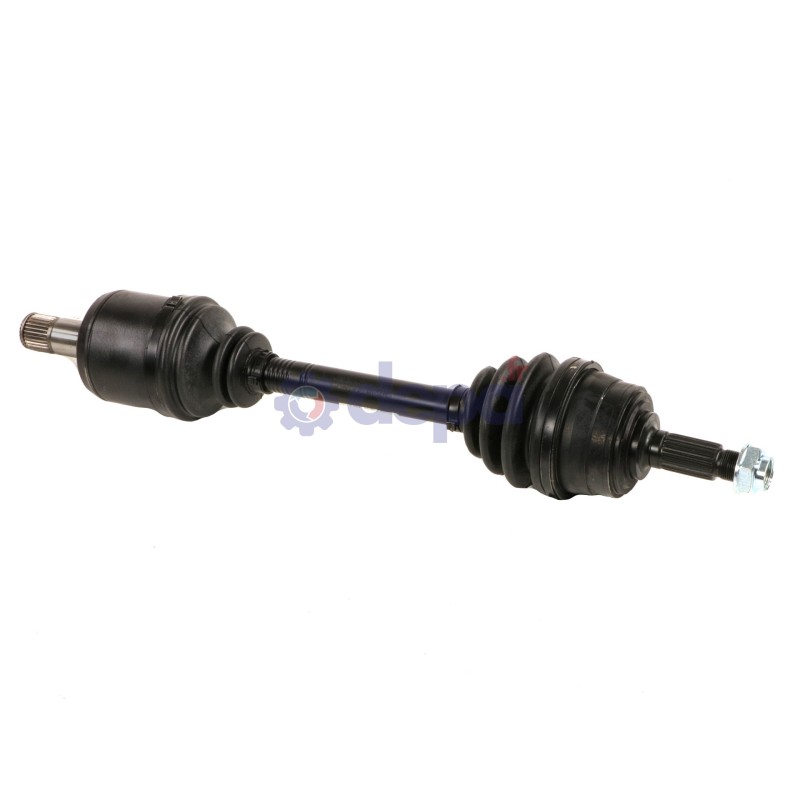

Ref : 3130970
Matching vehicles :
220Family :TR
Height : 20 mm
Compressed length : 595 mm
ABS on the vehicle : No
Thread pitch type : 22X150
Nut type : Flange nut

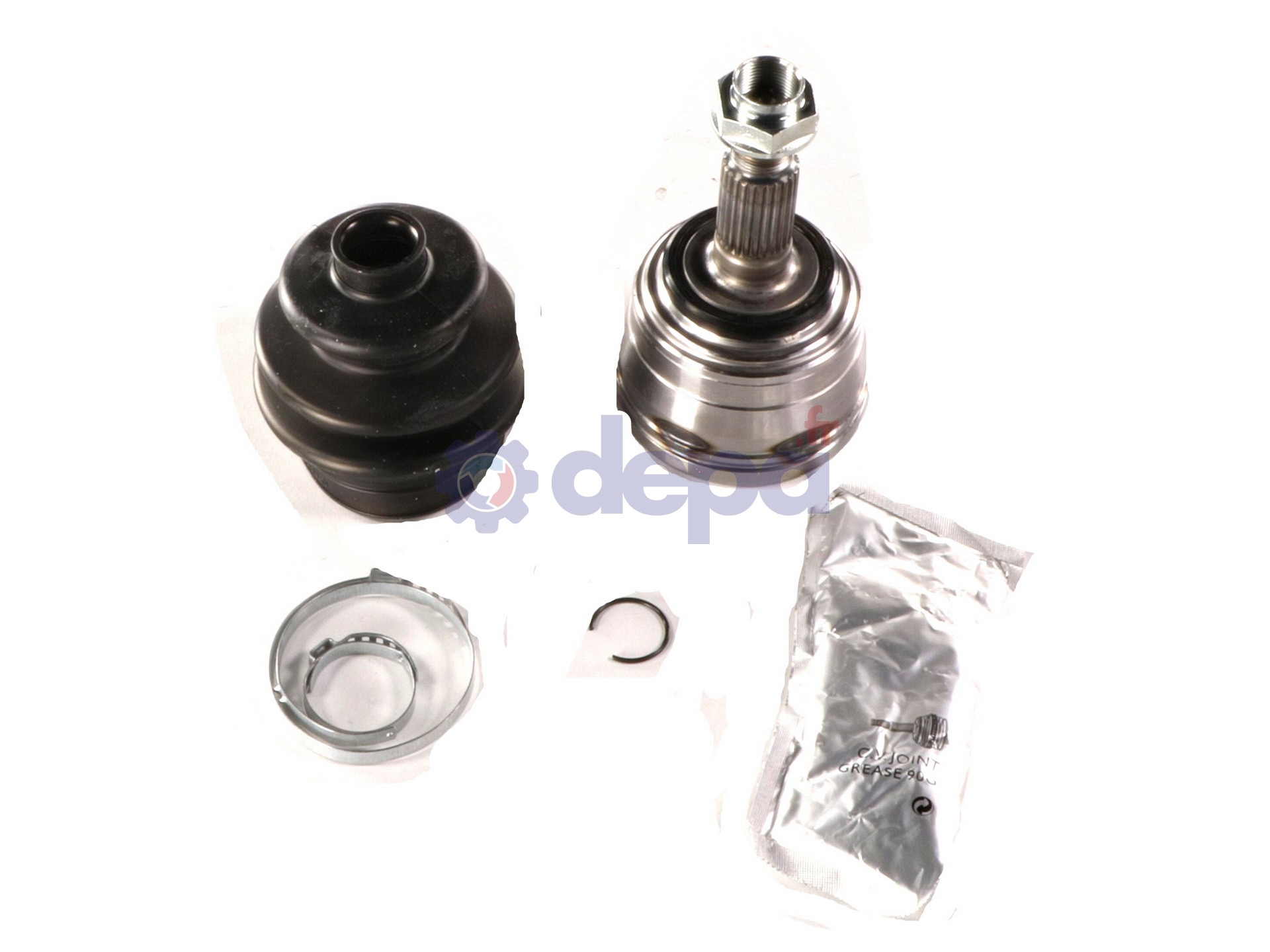

JOINT HOMOCINETIQUE COTE ROUE
Outer spline diameter : 27 mm
Housing diameter : 92 mm
Shoulder diameter : 49 mm
Number of external splines : 26
Number of splines on inner race : 32
Type and position (snap ring/circlip) : Internal snap ring
SOUFFLET COTE BOITE
Diameter (big) : 80 mm
Diameter (little) : 21 mm
Length : 84 mm
Number of grooves : 1
Type of material : NITRILE
SOUFFLET COTE ROUE
Diamètre (grand) : 88 mm
Diamètre (petit) : 22 mm
Longueur : 88 mm
Nombre de gorges : 1
Type de matière : NÉOPRÈNE
| CV joint | COTE ROUE | JRO14 |
|
| COTE BOITE | CBRO19 |
|
|
| Sealing kit | COTE ROUE | 5020 |
|
| COTE BOITE | 6056 |
|
|
| 6056 |
|
||
| Fixation | COTE ROUE | EC020 |
|
