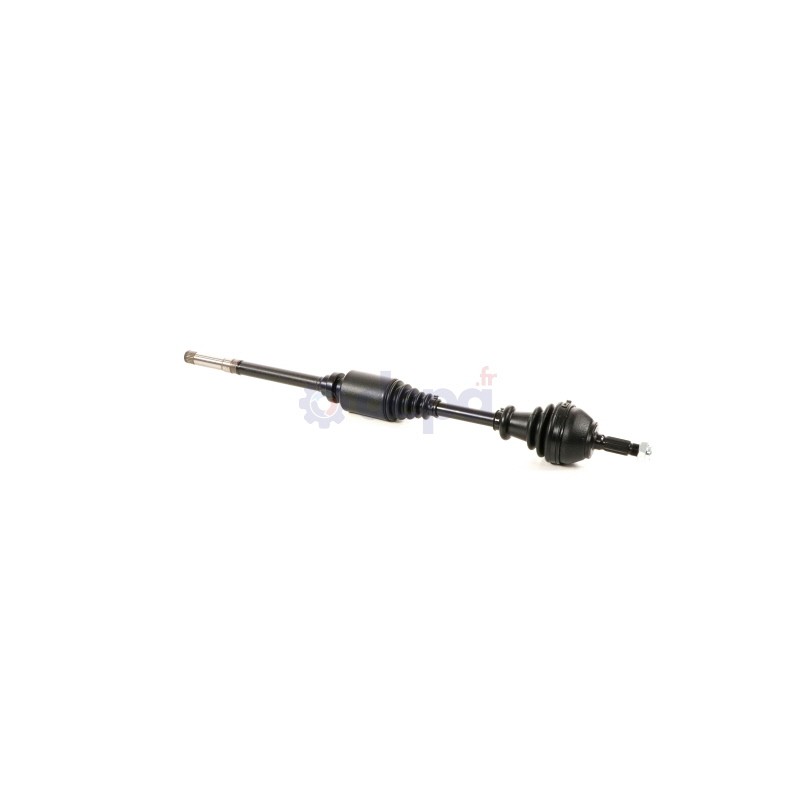

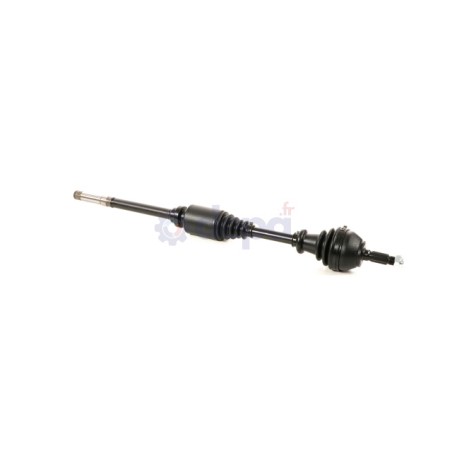

PEUGEOT 306 RIGHT-SIDE

Name: PEUGEOT 306 RIGHT-SIDE
Brand: Depa
SKU: 3180100
Price: 98.22 EUR
Availability: InStock

Ref : 3180100

Matching vehicles :

306

Family :TR

Height : 17 mm

Compressed length : 875 mm

Length of the shaft (including bearing unit) : 328 mm

ABS on the vehicle : No

Thread pitch type : 20X150

Nut type : To strike

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 29.8 mm

Outer spline diameter : 24 mm

Housing diameter : 70 mm

Length of the shaft (including bearing unit) : 328 mm

Length of the gearbox output without seal seat : 72 mm

Number of external splines : 22

ROULEMENT COTE BOITE

Outer diameter : 55 mm

Inner diameter : 30 mm

Width : 13 mm

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 20 mm

Length : 172 mm

Housing length : 87 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 20 mm

Longueur : 116 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30 mm

Height : 25 mm

Number of splines : 22

Fixation	GENERAL	EC004
Sealing kit	COTE ROUE	T3004
		5003
		T3007
		5010
	COTE BOITE	6013
CV joint	COTE ROUE	JTRIP95
Tripod joint	COTE BOITE	TRIP01
Bearing	COTE BOITE	RLT017
Transmission seal		B2985

Equivalence to manufacturer references

PEUGEOT : 32734V
PEUGEOT : 32735A
PEUGEOT : 32737S
PEUGEOT : 3273G1
PEUGEOT : 3273Q2
PEUGEOT : 3273Z4
