Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

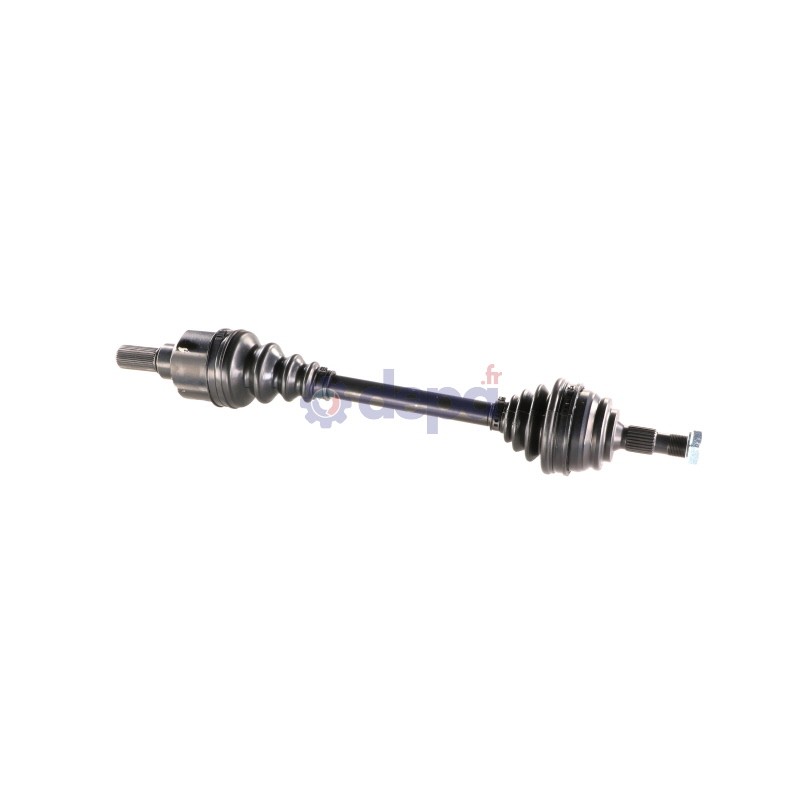

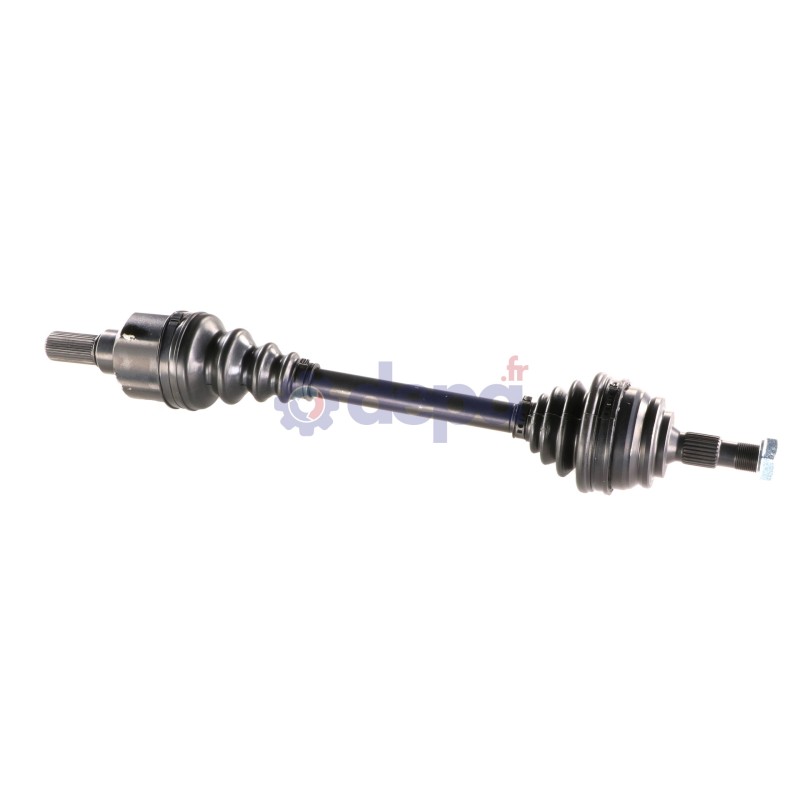

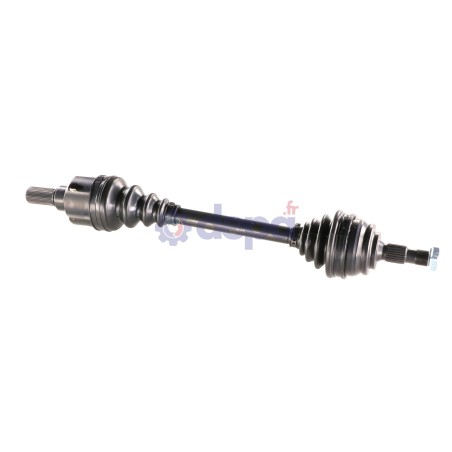

PEUGEOT 208 II AUTOMATIC TRANSMISSION LEFT-SIDE

Name: PEUGEOT 208 II AUTOMATIC TRANSMISSION LEFT-SIDE
Brand: Depa
SKU: 3180570
Price: 157.75 EUR
Availability: InStock

Ref : 3180570

Matching vehicles :

CORSA F - 208 II (UB_, UP_, UW_, UJ_) - CORSA F (P2JO) - 208 II

Family :TR

Height : 23 mm

Non-compressed length : 650 mm

ABS on the vehicle : Yes

Thread pitch type : 24X200

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 28 mm

Housing diameter : 71 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27.3 mm

Diamètre du bol : 86 mm

Shoulder diameter : 55.8 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 34

Observations : Threading Ø24mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 26 mm

Beads thickness : 13 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 20 mm

Longueur : 116 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33 mm

Height : 26 mm

Number of splines : 34

KITS ETANCHEITE TR neuf	COTE ROUE	5005
		T3074
		5010
	COTE BOITE	6121
	COTE BOITE	6106
FIXATION	COTE ROUE	EC018
FIXATION		EC008
JOINT HOMO Echange	COTE ROUE	JP11
JOINT HOMO Echange	COTE BOITE	CBMP8970GT
TRIAXE	COTE BOITE	TRIC43

Equivalence to manufacturer references

PEUGEOT : 1647577780
PEUGEOT : 9825392980
