Catalog

Search by vehicle

Category :

Transmission

Return

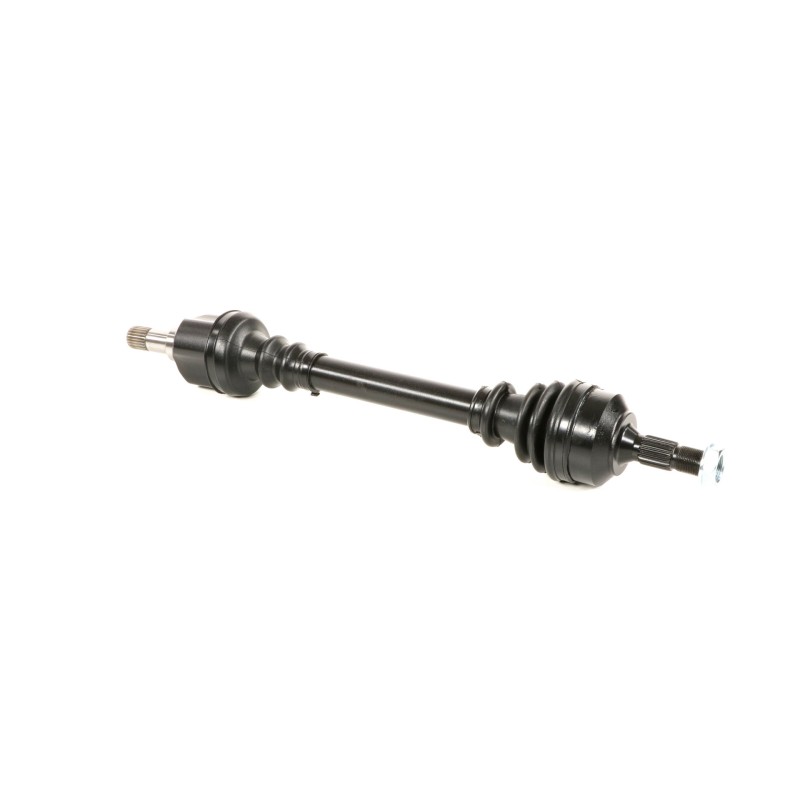

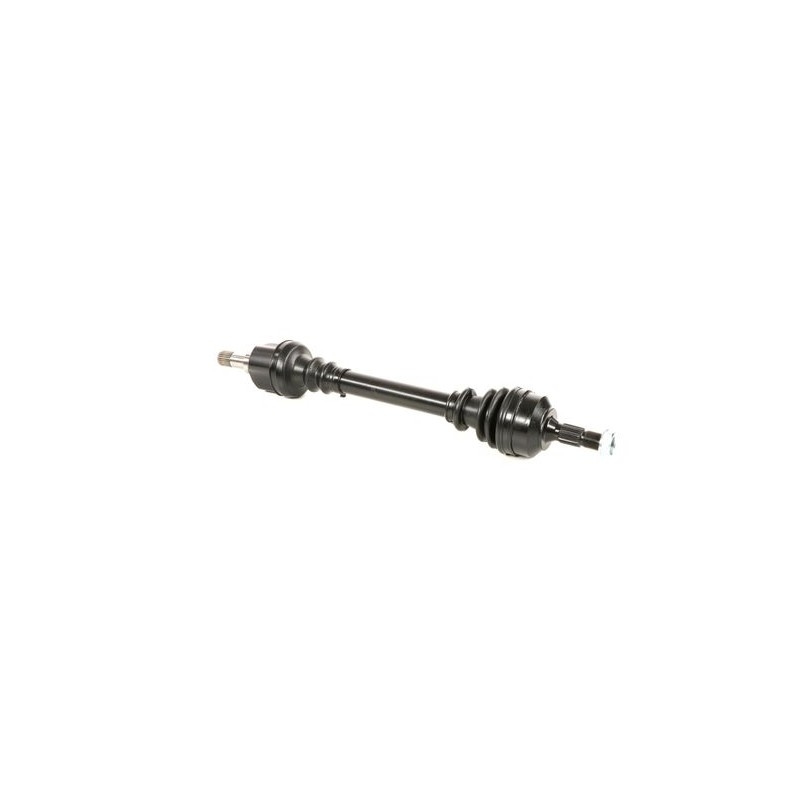

PEUGEOT 306 DIESEL G

Name: PEUGEOT 306 DIESEL G
Brand: Depa
SKU: 3188650
Price: 100.31 EUR
Availability: InStock

Ref : 3188650

Matching vehicles :

405 - 306 - 306 BREAK (7E, N3, N5)

Family :TR

Non-compressed length : 628 mm

ABS on the vehicle : No

COTE BOITE

Outer spline diameter : 26 mm

Length of the gearbox output without seal seat : 62 mm

Seal seat diameter : 40 mm

Nombre de cannelures extérieures : 24

Diamètre du bol : 78 mm

COTE ROUE

Number of external splines : 25

Number of splines on inner race : 23

Housing diameter : 90 mm

Diamètre des cannelures extérieures : 27 mm

Shoulder diameter : 60 mm

Observations : 5012 (Arbre) 5053 (Tube)

Type and position (snap ring/circlip) : Internal snap ring

Sealing kit	COTE ROUE	T3005
		5014
		5012
		5053
		5012
		5014
	COTE BOITE	6065
		6031
		6034
		6034
		6031
FIXATION	COTE ROUE	EC008
CV joint	COTE ROUE	JP841
		JP841
		JP841
		JP84
		JP84
	COTE BOITE	CBMC40G
	COTE BOITE	CBMC40G
TRIAXE	COTE BOITE	TRIC99
		TRIC99
		TRIC43
		TRIC43
		TRIC43

Equivalence to manufacturer references

PEUGEOT : 32720A
PEUGEOT : 3272F8
PEUGEOT : 3272F6
