Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

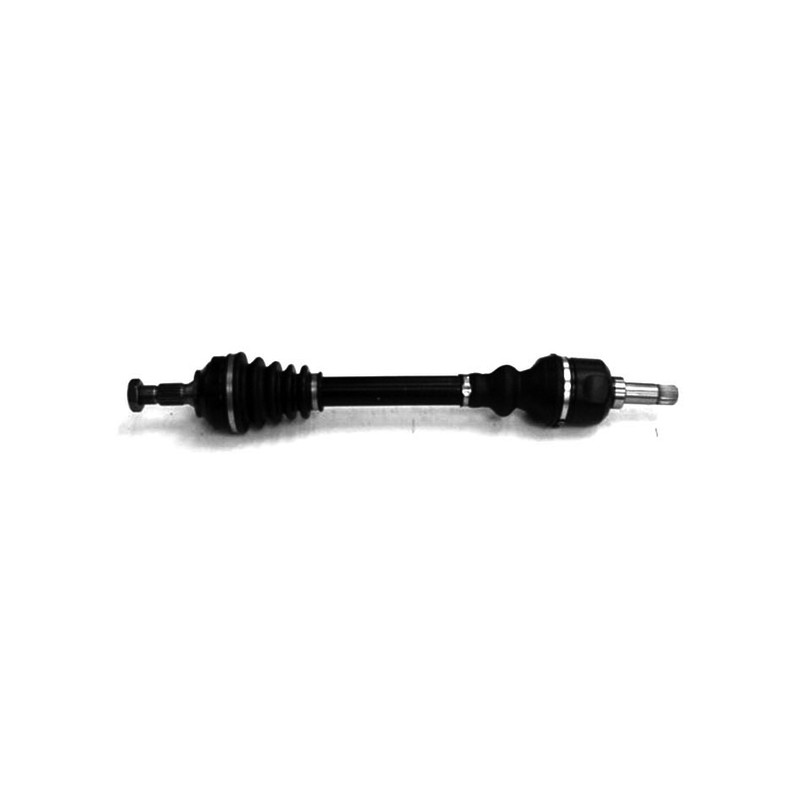

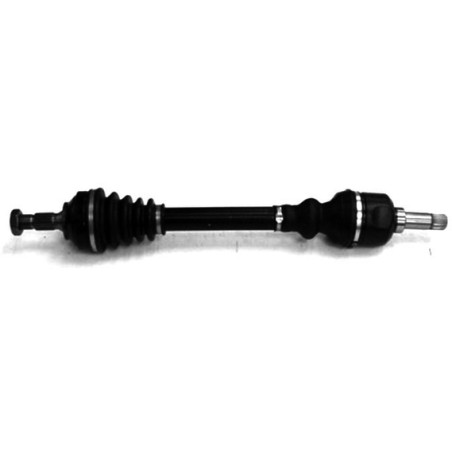

PEUGEOT 406 LEFT-SIDE

Name: PEUGEOT 406 LEFT-SIDE
Brand: Depa
SKU: 3189150
Price: 142.75 EUR
Availability: InStock

Ref : 3189150

Matching vehicles :

406

Family :TR

Height : 13.5 mm

Compressed length : 655 mm

ABS on the vehicle : No

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 30 mm

Outer spline diameter : 26 mm

Housing diameter : 79 mm

Length of the shaft (including bearing unit) : 350 mm

Length of the gearbox output without seal seat : 96 mm

Number of external splines : 24

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 90 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 34

Observations :

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 76 mm

Diameter (little) : 34 mm

Length : 100 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 85 mm

Diamètre (petit) : 23 mm

Longueur : 101 mm

Type de matière : NÉOPRÈNE

KITS ETANCHEITE TR neuf	COTE ROUE	T3008
		T3061
		T3005
		5014
		5094
	COTE BOITE	6065
	COTE BOITE	6065
JOINT HOMO Echange	COTE ROUE	JC42
FIXATION	COTE ROUE	EC008
BAGUE ETANCHEITE FIFF.		B4058

Equivalence to manufacturer references

PEUGEOT : 3272S2
PEUGEOT : 3272S5
