Catalog

Search by vehicle

Category :

Transmission

Return

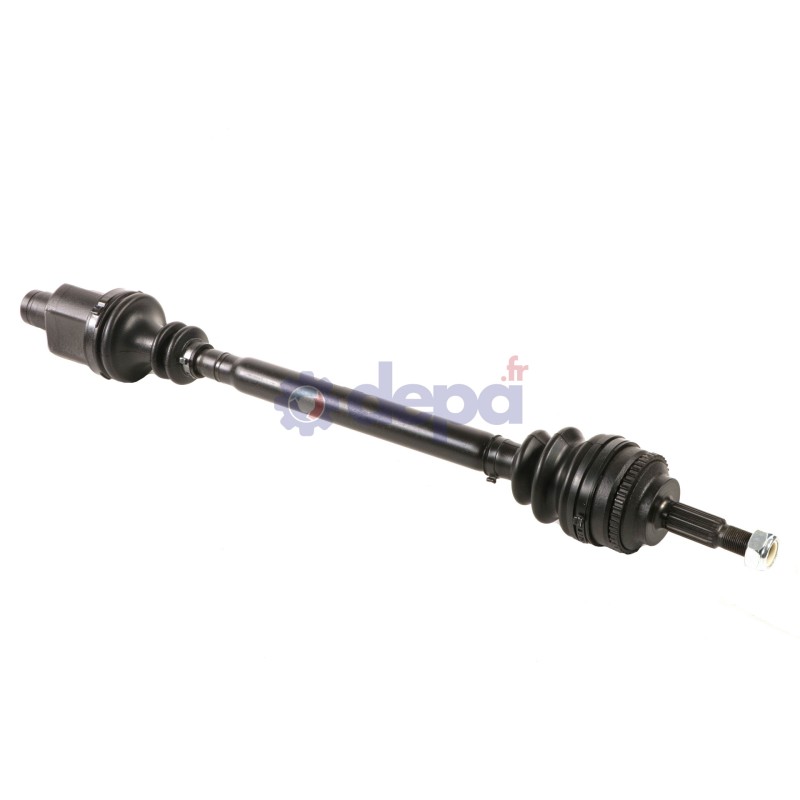

RENAULT MEGANE DTI WITH ABS RIGHT-SIDE

Name: RENAULT MEGANE DTI WITH ABS RIGHT-SIDE
Brand: Depa
SKU: 3201405
Price: 130.03 EUR
Availability: InStock

Ref : 3201405

Matching vehicles :

MEGANE 1 - SCENIC

Family :TR

Height : 16.5 mm

Compressed length : 750 mm

Non-compressed length : 775 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

COURONNE ABS COTE ROUE

Outer diameter : 85 mm

Inner diameter : 75 mm

Width : 8 mm

Number of teeth : 44

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 25 mm

Housing diameter : 72 mm

Number of internal splines : 23

Presence of a pin : No

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 25 mm

Diamètre du bol : 81 mm

Shoulder diameter : 56 mm

Number of external splines : 23

Number of splines on inner race : 30

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 23 mm

Beads thickness : 15.5 mm

Length : 104 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30 mm

Height : 24 mm

Number of splines : 30

Sealing kit	COTE ROUE	T3025
		T3007
		T3026
		5005
		5016
		5020
	COTE BOITE	6041
CV joint	COTE ROUE	JR241
		JR242
		JR24
		JR1405
Fixation	COTE ROUE	EC005
Tripod joint	COTE BOITE	TRIR07
ABS ring		COU022
Transmission seal		B2795

Equivalence to manufacturer references

RENAULT : 7700111914
RENAULT : 7700111918
RENAULT : 7700115196
RENAULT : 7711134940
RENAULT : 7711135206
RENAULT : 7711135208
RENAULT : 7711135216
RENAULT : 8200173584
