Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

RENAULT : 7700108465
RENAULT : 7701352620
RENAULT : 7701469963

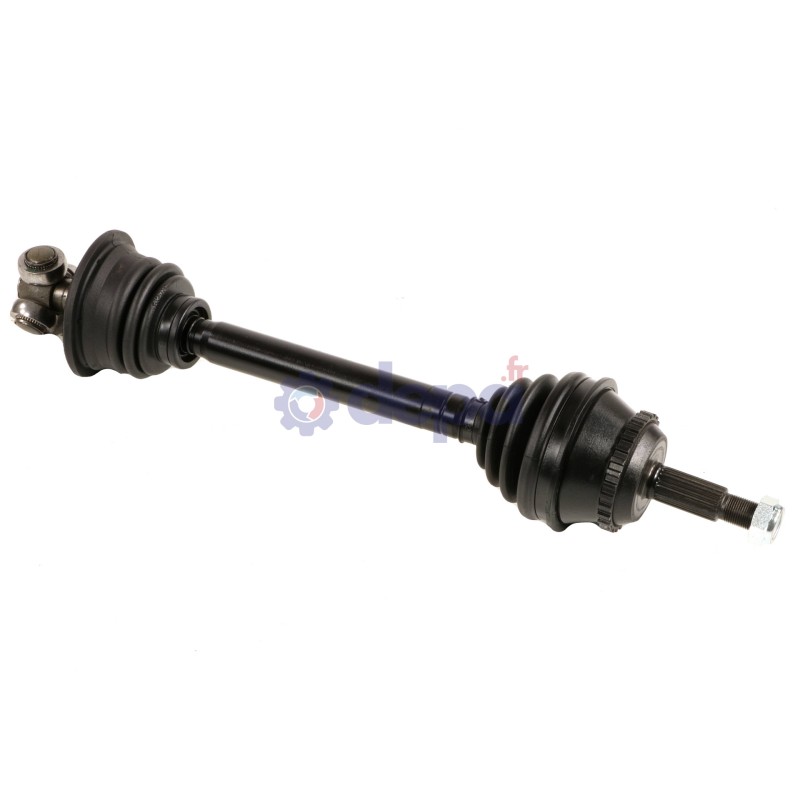

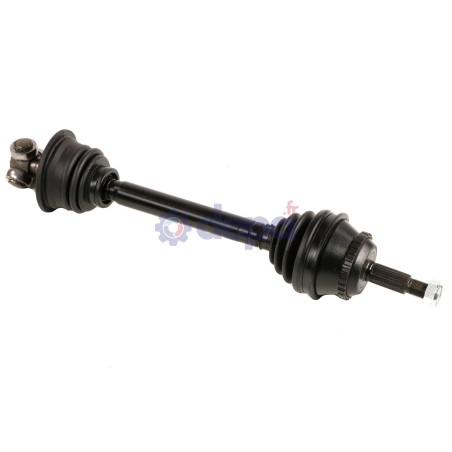

RENAULT SAFRANE WITH ABS LEFT-SIDE

Name: RENAULT SAFRANE WITH ABS LEFT-SIDE
Brand: Depa
SKU: 3203455
Price: 156.01 EUR
Availability: InStock

Ref : 3203455

Matching vehicles :

SAFRANE 2

Family :TR

Collapsed length : 600 mm

ABS on the vehicle : Yes

COURONNE ABS COTE ROUE

Outer diameter : 85 mm

Inner diameter : 75 mm

Width : 10 mm

Number of teeth : 30

FIXATION COTE ROUE

Height : 16.5 mm

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 25 mm

Housing diameter : 98 mm

Shoulder diameter : 56 mm

Number of external splines : 23

Number of splines on inner race : 27

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 85 mm

Diameter (little) : 27.8 mm

Inner bearing diameter : 27.8 mm

Length : 80 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 37 mm

Height : 29 mm

Number of splines : 25

Fixation	COTE ROUE	EC005
Sealing kit	COTE ROUE	5026
	COTE BOITE	6030
	COTE BOITE	6030
CV joint	COTE ROUE	JR3030
CV joint	COTE BOITE	CBTRIR256030
Tripod joint	COTE BOITE	TRIR25
Tripod joint	COTE BOITE	TRIR25
ABS ring		COU094
