Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

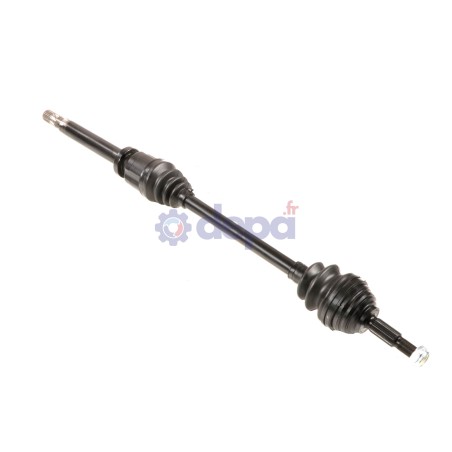

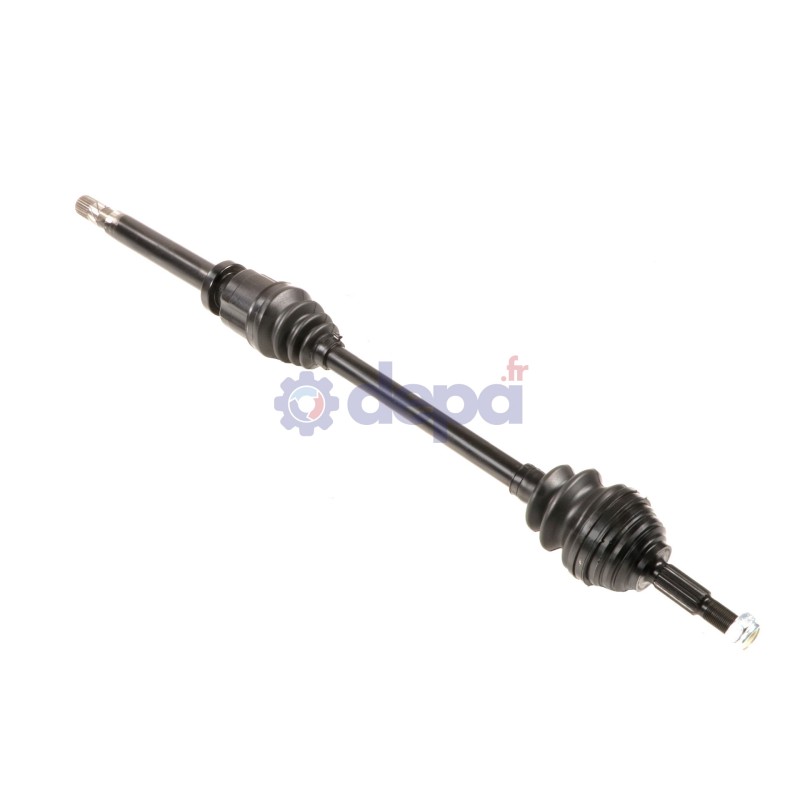

MODUS II/CLIO 3 1.2 TURBO RIGHT-SIDE

Name: MODUS II/CLIO 3 1.2 TURBO RIGHT-SIDE
Brand: Depa
SKU: 3204200
Price: 150.75 EUR
Availability: InStock

Ref : 3204200

Matching vehicles :

CLIO 3 - MODUS

Family :TR

Height : 16.5 mm

Compressed length : 895 mm

Length of the shaft (including bearing unit) : 275 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 33 mm

Outer spline diameter : 26.5 mm

Housing diameter : 69 mm

Length of the shaft (including bearing unit) : 275 mm

Length of the gearbox output without seal seat : 63 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25 mm

Diamètre du bol : 81 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 23

Number of splines on inner race : 30

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 14 mm

SOUFFLET COTE BOITE

Diameter (big) : 66 mm

Diameter (little) : 18 mm

Length : 83 mm

Number of grooves : 2

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 35 mm

Height : 24.5 mm

Number of splines : 30

KITS ETANCHEITE TR neuf	COTE ROUE	T3113
		T3081
		5016
	COTE BOITE	5037
FIXATION	COTE ROUE	EC005
JOINT HOMO Echange	COTE ROUE	JR29
JOINT HOMO Echange	COTE BOITE	PALCBMR42DT
ROULEMENT	COTE BOITE	RLT018
TRIAXE	COTE BOITE	TRIR12

Equivalence to manufacturer references

RENAULT : 391009067R
RENAULT : 391009893R
RENAULT : 8200557126
RENAULT : 8201187693
RENAULT : 8201272592
