Catalog

Search by vehicle

Category :

Transmission

Return

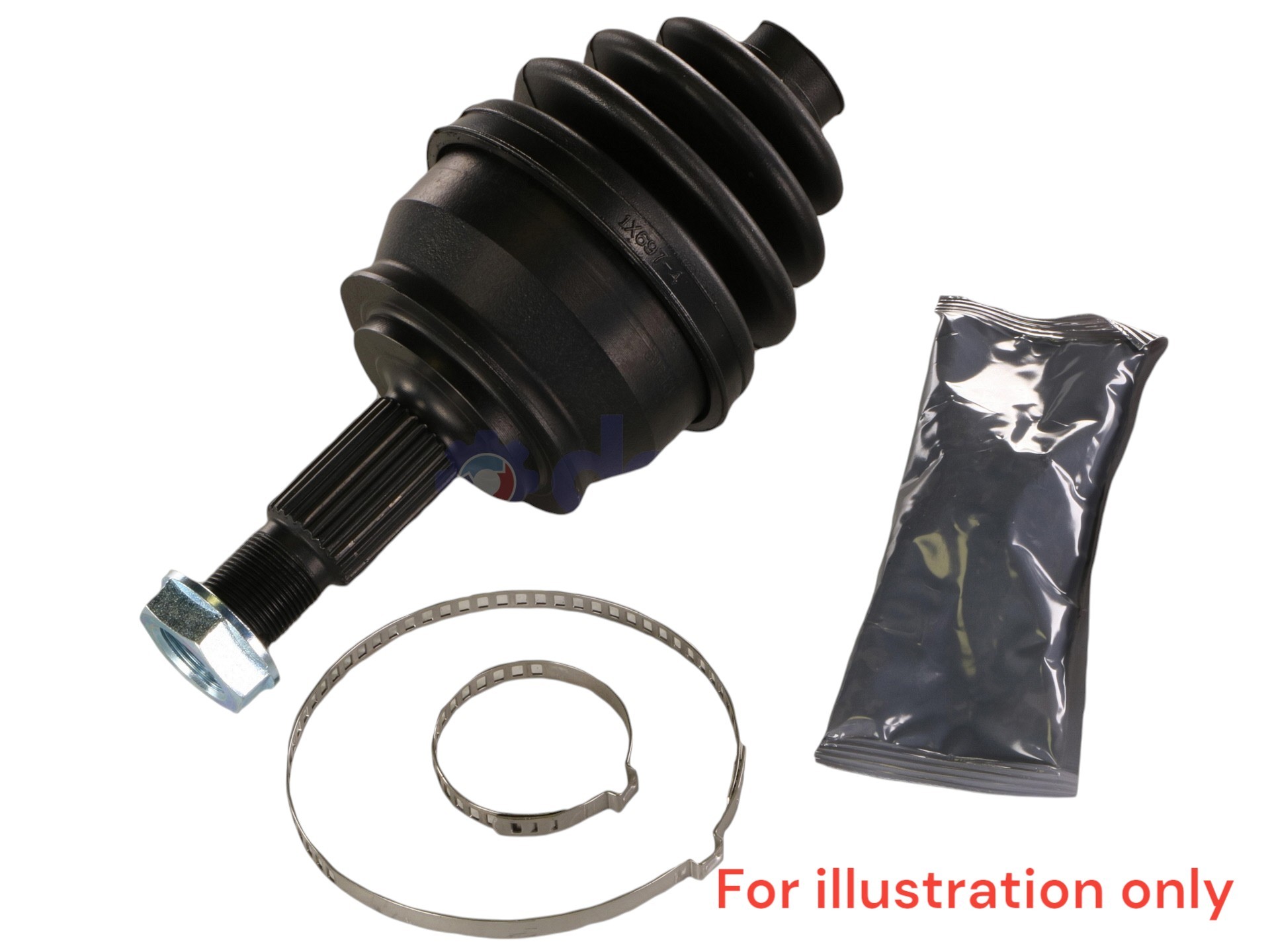

RENAULT LAGUNA II RIGHT-SIDE

Name: RENAULT LAGUNA II RIGHT-SIDE
Brand: Depa
SKU: 3206200
Price: 176.54 EUR
Availability: InStock

Ref : 3206200

Matching vehicles :

LAGUNA 2

Family :TR

Height : 25 mm

Compressed length : 795 mm

Length of the shaft (including bearing unit) : 185 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Inner spline diameter : 25 mm

Housing diameter : 67.5 mm

Length of the shaft (including bearing unit) : 185 mm

Number of splines on inner race : 23

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 29.5 mm

Diamètre du bol : 81 mm

Shoulder diameter : 56 mm

Number of external splines : 27

Nombre de cannelures sur la noix : 30

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 14 mm

SOUFFLET COTE BOITE

Diameter (big) : 55 mm

Diameter (little) : 18 mm

Beads thickness : 11.5 mm

Length : 90 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 29.8 mm

Height : 24 mm

Number of splines : 28

CV joint	COTE ROUE	JR62
	COTE ROUE	JR64
	COTE BOITE	PALCBFR24DT
Sealing kit	COTE ROUE	5016
Sealing kit	COTE BOITE	6053
Fixation	COTE ROUE	EC011
Bearing	COTE BOITE	RLT018
Transmission		110026

Equivalence to manufacturer references

RENAULT : 7711134780
RENAULT : 7711368296
RENAULT : 8200035673
RENAULT : 8200276640
