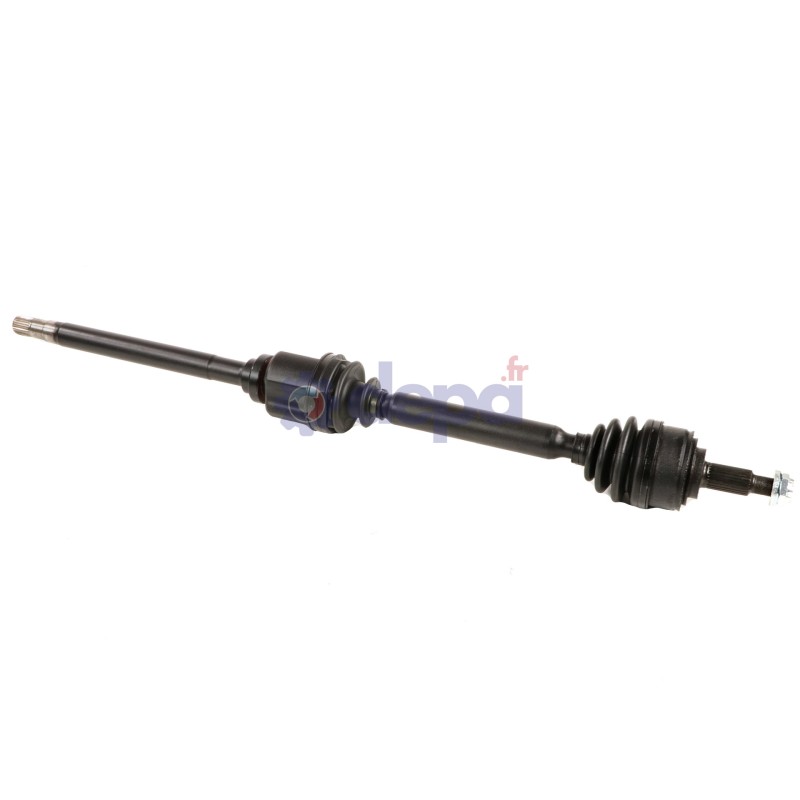

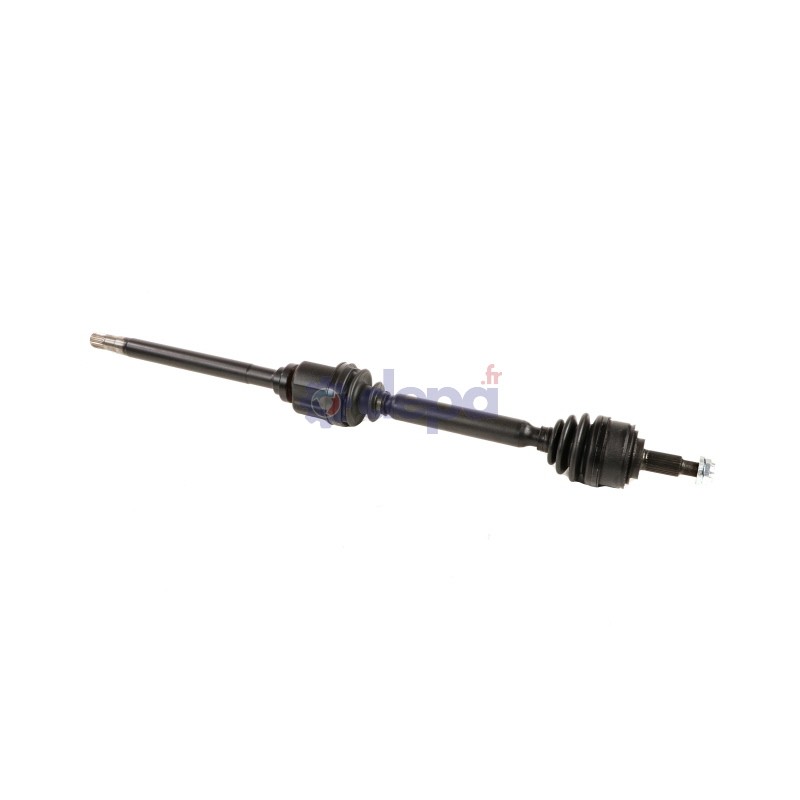

RENAULT VEL SATIS AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: RENAULT VEL SATIS AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3207200
Price: 226.52 EUR
Availability: InStock

Ref : 3207200

Matching vehicles :

VEL SATIS

Family :TR

Compressed length : 1000 mm

ABS on the vehicle : Yes

Length of the shaft (including bearing unit) : 388 mm

COTE BOITE

Length of the shaft (including bearing unit) : 388 mm

Seal seat diameter : 31 mm

Outer spline diameter : 26.5 mm

Number of external splines : 26

Length of the gearbox output without seal seat : 51 mm

Diamètre du bol : 77 mm

COTE ROUE

Number of splines on inner race : 26

Housing diameter : 92 mm

Shoulder diameter : 56 mm

Diamètre des cannelures extérieures : 29 mm

Type and position (snap ring/circlip) : Centered snap ring

Observations : 6 balls/Threading length 33mm/Threading Ø22mm

Nombre de cannelures extérieures : 27

Sealing kit	COTE ROUE	T3073
	COTE ROUE	5020
	COTE BOITE	6043
FIXATION	COTE ROUE	EC011
CV joint	COTE ROUE	JR71
CV joint	COTE BOITE	PALCBMR72DT
TRIAXE	COTE BOITE	TRIFO35
ROULEMENT	COTE BOITE	RLT018

Equivalence to manufacturer references

RENAULT : 8200387381
RENAULT : 8200176144
