Catalog

Search by vehicle

Category :

Transmission

Return

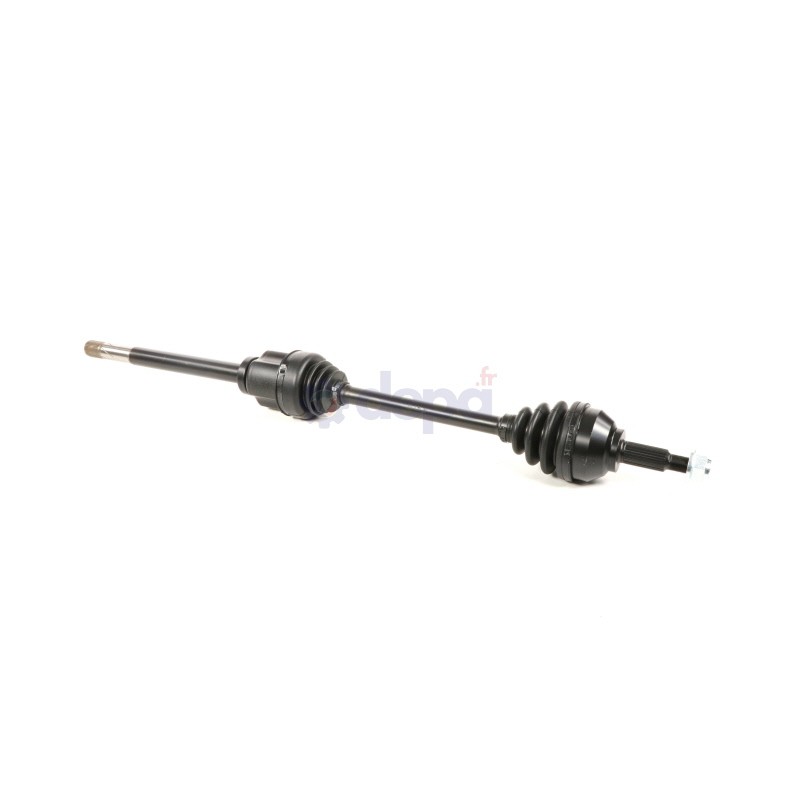

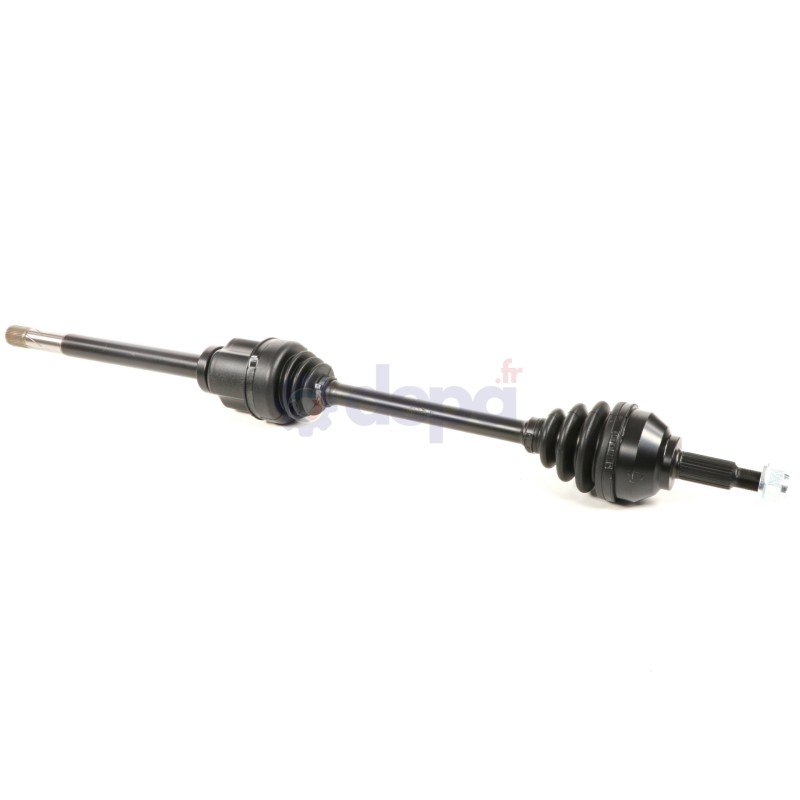

TRAFFIC II/OPEL VIVARO RIGHT-SIDE

Name: TRAFFIC II/OPEL VIVARO RIGHT-SIDE
Brand: Depa
SKU: 3238700
Price: 210.88 EUR
Availability: InStock

Ref : 3238700

Matching vehicles :

TRAFIC II - PRIMASTAR - VIVARO A

Family :TR

Height : 25 mm

Compressed length : 1045 mm

Length of the shaft (including bearing unit) : 430 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 30 mm

Outer spline diameter : 30 mm

Housing diameter : 80 mm

Length of the shaft (including bearing unit) : 430 mm

Length of the gearbox output without seal seat : 73 mm

Number of external splines : 39

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29 mm

Diamètre du bol : 101 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 36

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 14 mm

SOUFFLET COTE BOITE

Diameter (big) : 77 mm

Diameter (little) : 27.5 mm

Beads thickness : 13 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43.6 mm

Height : 27.5 mm

Number of splines : 27

CV joint	COTE ROUE	JR96
CV joint	COTE BOITE	PALCBMR871DT
Fixation	COTE ROUE	EC011
Sealing kit	COTE ROUE	5036
	COTE BOITE	6193
	COTE BOITE	6066
Bearing	COTE BOITE	RLT018
Tripod joint	COTE BOITE	TRIC70

Equivalence to manufacturer references

GMC : 93856307
NISSAN : 3910000QAM
OPEL : 4411698
OPEL : 4417909
OPEL : 93850890
RENAULT : 7711368832
RENAULT : 8200452273
