Search by vehicle

Category :

Transmission

Return

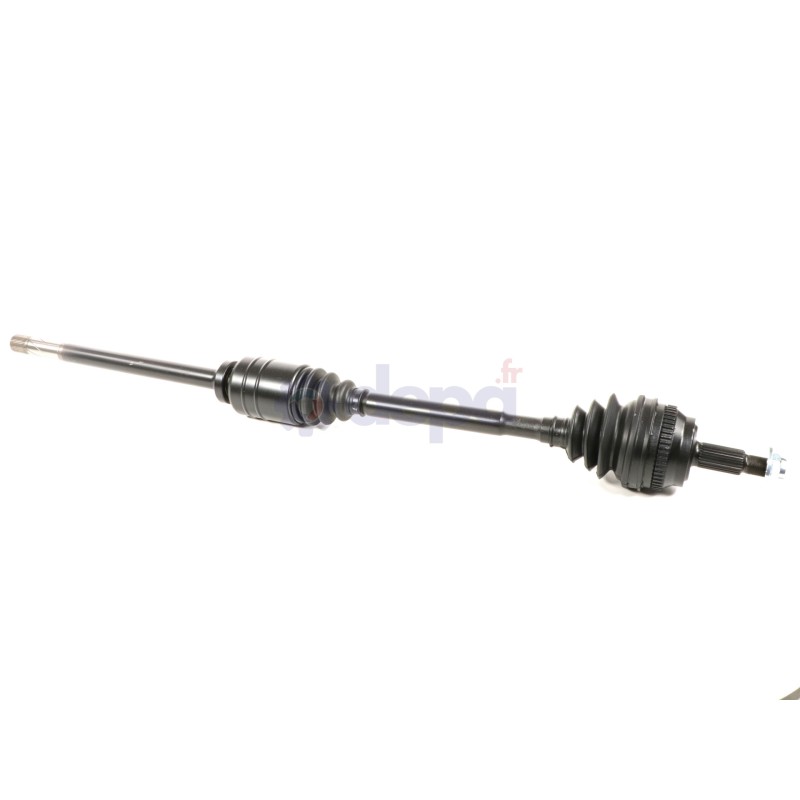

RENAULT/OPEL/NISSAN DCI WITH ABS RIGHT-SIDE

Name: RENAULT/OPEL/NISSAN DCI WITH ABS RIGHT-SIDE
Brand: Depa
SKU: 3239825
Price: 210.76 EUR
Availability: InStock

Ref : 3239825

Matching vehicles :

MASTER 2 - MOVANO I - INTERSTAR

Family :TR

Height : 28 mm

Compressed length : 1130 mm

Length of the shaft (including bearing unit) : 420 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

COURONNE ABS COTE ROUE

Outer diameter : 102 mm

Inner diameter : 94 mm

Width : 11 mm

Number of teeth : 51

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 29 mm

Housing diameter : 81 mm

Length of the shaft (including bearing unit) : 420 mm

Length of the gearbox output without seal seat : 105 mm

Number of external splines : 39

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 30.5 mm

Diamètre du bol : 101.5 mm

Shoulder diameter : 67 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 36

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Diamètre extérieur : 62 mm

Diamètre intérieur : 35 mm

Width : 14 mm

SOUFFLET COTE BOITE

Diameter (big) : 81.5 mm

Diameter (little) : 23 mm

Length : 190 mm

Housing length : 113.5 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 34 mm

Height : 30 mm

Number of splines : 27

Sealing kit	COTE ROUE	5036
Sealing kit	COTE BOITE	6050
Fixation	COTE ROUE	EC012
CV joint	COTE ROUE	JR9851
CV joint	COTE BOITE	PALCBMR98D
Tripod joint	COTE BOITE	TRIR95
Bearing	COTE BOITE	RLT018
ABS ring		COU027

Equivalence to manufacturer references

OPEL : 4417359
OPEL : 4502441
RENAULT : 7701473014
