Catalog

Search by vehicle

Category :

Transmission

Return

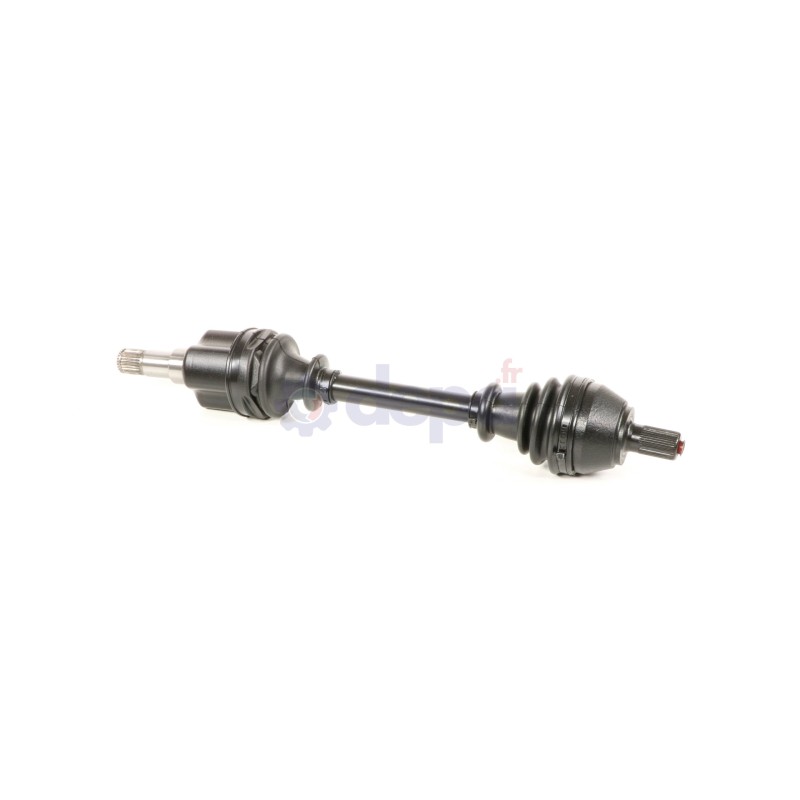

FOCUS II/ C-MAX/VOLVO C30 LEFT-SIDE

Name: FOCUS II/ C-MAX/VOLVO C30 LEFT-SIDE
Brand: Depa
SKU: 3252602
Price: 227.09 EUR
Availability: InStock

Ref : 3252602

Matching vehicles :

S40 II - C-MAX - FOCUS C-MAX - V50

Family :TR

Compressed length : 585 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 28 mm

Housing diameter : 78 mm

Length of the gearbox output without seal seat : 68 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27.5 mm

Diamètre du bol : 87 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 36

Number of splines on inner race : 26

Observations :

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 69 mm

Diameter (little) : 25 mm

Beads thickness : 16.5 mm

Length : 100 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 20 mm

Longueur : 116 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 37 mm

Height : 27.5 mm

Number of splines : 32

CV joint	COTE ROUE	JFO27
CV joint	COTE ROUE	JFO26
Sealing kit	COTE ROUE	5020
	COTE ROUE	5010
	COTE BOITE	6201
Fixation	COTE ROUE	VI001
Tripod joint	COTE BOITE	TRIFO35
Tripod joint	COTE BOITE	TRIFO26

Equivalence to manufacturer references

FORD : 1223785
FORD : 1305939
FORD : 1353398
FORD : 1417778
FORD : 1437541
FORD : 1495069
FORD : 1600575
FORD : 1682285
FORD : 3M513B437DAC
FORD : 3M513B437DAD
FORD : 3M513B437DAE
FORD : 3M513B437DAF
FORD : 3M513B437DAG
FORD : RL3M513B437DAX
FORD : RM3M513B437DAE
FORD : RM3M513B437DAF
VOLVO : 30681126
VOLVO : 36000141
VOLVO : 36001357
VOLVO : 8603362
VOLVO : 8603594
