Catalog

Search by vehicle

Category :

Transmission

Return

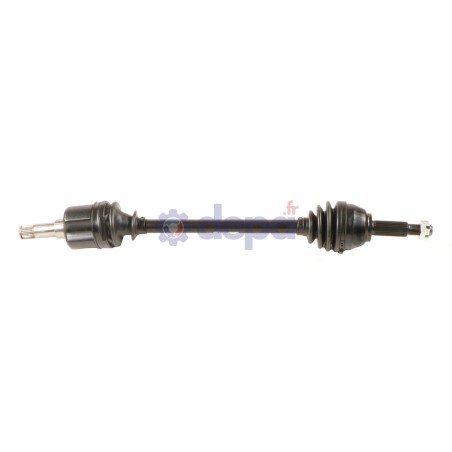

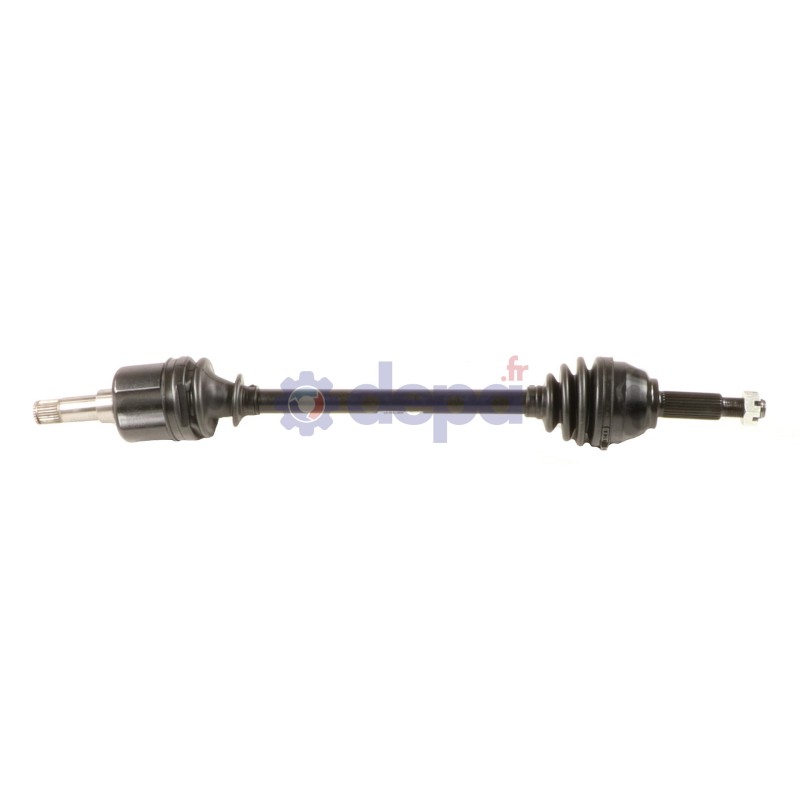

FORD TRANSIT LEFT-SIDE

Name: FORD TRANSIT LEFT-SIDE
Brand: Depa
SKU: 3253502
Price: 251.47 EUR
Availability: InStock

Ref : 3253502

Matching vehicles :

TRANSIT III

Family :TR

Height : 23 mm

Compressed length : 795 mm

ABS on the vehicle : No

Thread pitch type : 24X200

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 28 mm

Housing diameter : 77 mm

Length of the gearbox output without seal seat : 76 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 30.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 57 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 25 mm

Beads thickness : 18.5 mm

Length : 100 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 38 mm

Height : 29 mm

Number of splines : 26

Sealing kit	COTE ROUE	5020
	COTE BOITE	6193
	COTE BOITE	6043
CV joint	COTE ROUE	JFO35
CV joint	COTE BOITE	CBMFO35GT
Fixation	COTE ROUE	EC018
Tripod joint	COTE BOITE	TRIFO35

Equivalence to manufacturer references

FORD : 1C153B437AE
FORD : 1C153B437AF
FORD : 4104910
FORD : 4166491
