Catalog

Search by vehicle

Category :

Transmission

Return

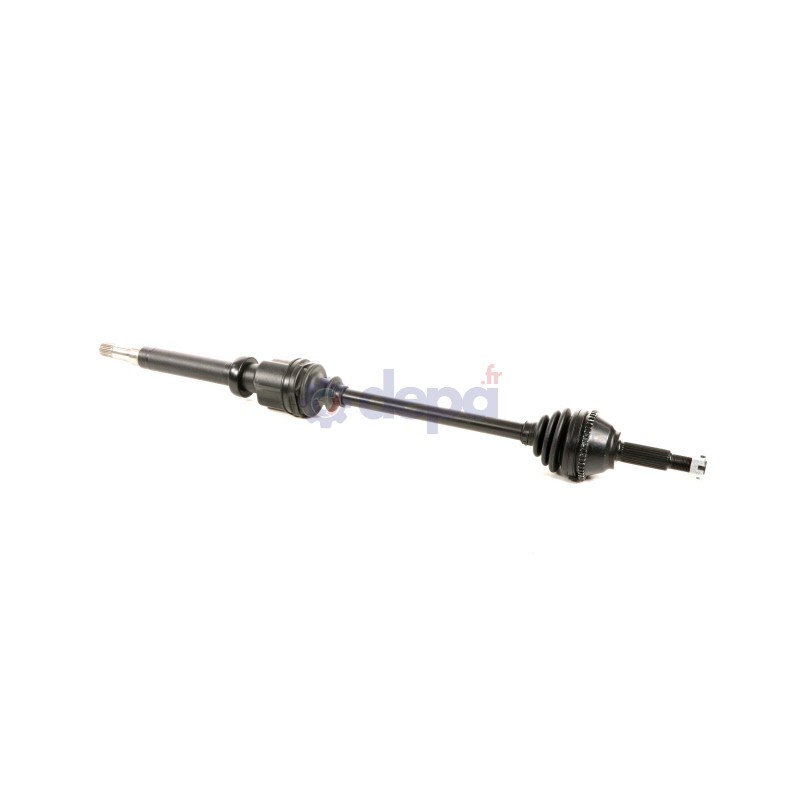

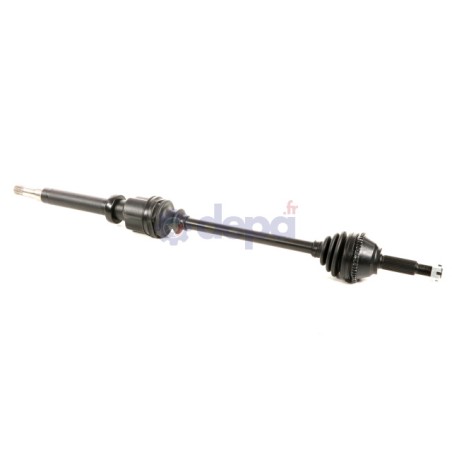

FORD TRANSIT ABS D

Name: FORD TRANSIT ABS D
Brand: Depa
SKU: 3253648
Price: 261.24 EUR
Availability: InStock

Ref : 3253648

Matching vehicles :

TRANSIT III

Family :TR

Compressed length : 1050 mm

ABS on the vehicle : Yes

Length of the shaft (including bearing unit) : 330 mm

COTE ROUE

Shoulder diameter : 57 mm

Outer spline diameter : 30.5 mm

Housing diameter : 91 mm

Type and position (snap ring/circlip) : Centered snap ring

Number of splines on inner race : 26

Nombre de cannelures extérieures : 28

COTE BOITE

Length of the gearbox output without seal seat : 76 mm

Seal seat diameter : 40 mm

Number of external splines : 36

Diamètre du bol : 77 mm

Diamètre des cannelures extérieures : 29 mm

Length of the shaft (including bearing unit) : 330 mm

Sealing kit	COTE ROUE	5020
	COTE ROUE	5036
	COTE BOITE	6043
	COTE BOITE	6182
CV joint	COTE ROUE	JFO3548
	COTE ROUE	JFO37481
	COTE BOITE	PALCBMFO361DT
	COTE BOITE	PALCBMFO36DT
FIXATION	COTE ROUE	EC018
TRIAXE	COTE BOITE	TRIAL11
TRIAXE	COTE BOITE	TRIFO35
ROULEMENT	COTE BOITE	RLT033
ROULEMENT	COTE BOITE	RLT033
COURONNE ABS		COU051
COURONNE ABS		COU052

Equivalence to manufacturer references

FORD : 1417761
FORD : 1754384
FORD : RM3C113B436B1C
FORD : RM3C113B436BC
FORD : 1601966
FORD : 3C113B436BB
FORD : 3C113B436BC
FORD : 4507298
FORD : 4615963
