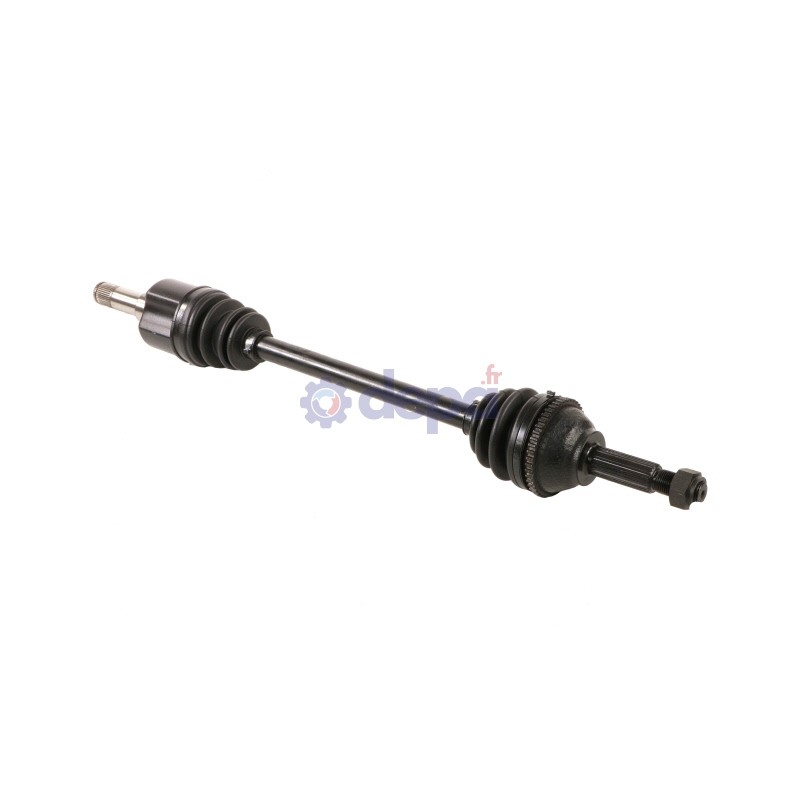

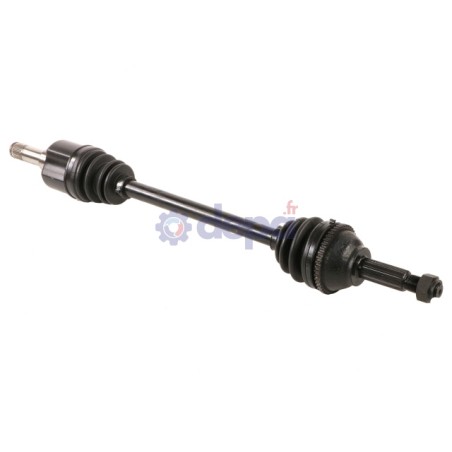

FORD TRANSIT WITH ABS LEFT-SIDE

Name: FORD TRANSIT WITH ABS LEFT-SIDE
Brand: Depa
SKU: 3253658
Price: 261.24 EUR
Availability: InStock

Ref : 3253658

Matching vehicles :

TRANSIT III

Family :TR

Height : 23 mm

Compressed length : 795 mm

ABS on the vehicle : Yes

Thread pitch type : 24X200

Nut type : Lock

COURONNE ABS COTE ROUE

Outer diameter : 105 mm

Inner diameter : 91 mm

Width : 8 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 29 mm

Housing diameter : 81 mm

Number of external splines : 36

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 30.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 57 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 25 mm

Beads thickness : 14 mm

Length : 95 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 38 mm

Height : 29 mm

Number of splines : 26

CV joint	COTE ROUE	JFO37481
	COTE ROUE	JFO3548
	COTE BOITE	CBMFO361GT
	COTE BOITE	CBMFO36GT
Fixation	COTE ROUE	EC018
Sealing kit	COTE ROUE	5020
	COTE ROUE	5036
	COTE BOITE	6193
	COTE BOITE	6182
Tripod joint	COTE BOITE	TRIFO35
ABS ring		COU051
ABS ring		COU052

Equivalence to manufacturer references

FORD : 1754399
FORD : 1754407
FORD : 2C143B437AB
FORD : 2C143B437BB
FORD : 4421003
FORD : 4421004
FORD : RM2C143B437B1B
FORD : RM3C113B437B1C
