Catalog

Search by vehicle

Category :

Transmission

Return

FIAT DOBLO II D

Name: FIAT DOBLO II D
Brand: Depa
SKU: 3260920
Price: 193.3 EUR
Availability: InStock

Ref : 3260920

Matching vehicles :

DOBLO II

Family :TR

Length of the shaft (including bearing unit) : 433 mm

Compressed length : 970 mm

Observations : With heavy-duty suspension

ABS on the vehicle : Yes

COTE BOITE

Number of external splines : 25

Housing diameter : 73 mm

Outer spline diameter : 27 mm

Length of the shaft (including bearing unit) : 432 mm

Seal seat diameter : 30 mm

Length of the gearbox output without seal seat : 75 mm

COTE ROUE

Type and position (snap ring/circlip) : Centered snap ring

Number of splines on inner race : 26

Shoulder diameter : 59 mm

Diamètre des cannelures extérieures : 29.5 mm

Diamètre du bol : 90 mm

Nombre de cannelures extérieures : 27

Sealing kit	COTE ROUE	T3034
	COTE ROUE	5020

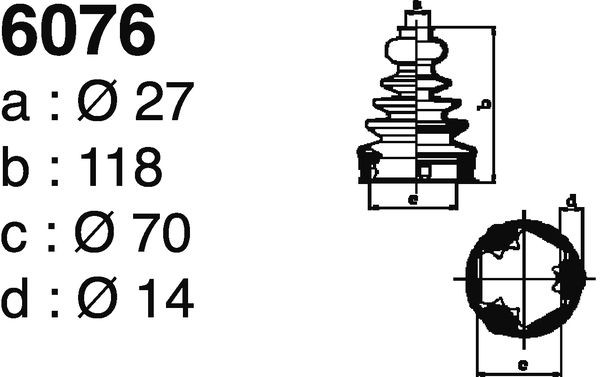

	COTE BOITE	6076
FIXATION	COTE ROUE	EC021
CV joint	COTE ROUE	JAL75
CV joint	COTE BOITE	PALCBMAL30DT
TRIAXE	COTE BOITE	TRIAL70
ROULEMENT		RLT006

Equivalence to manufacturer references

FIAT : 52130452+55214684
FIAT : 51933670+55214684
FIAT : 71797036+55214684
FIAT : 51822813+55214684
FIAT : 71797154+55214684
