Catalog

Search by vehicle

Category :

Transmission

Return

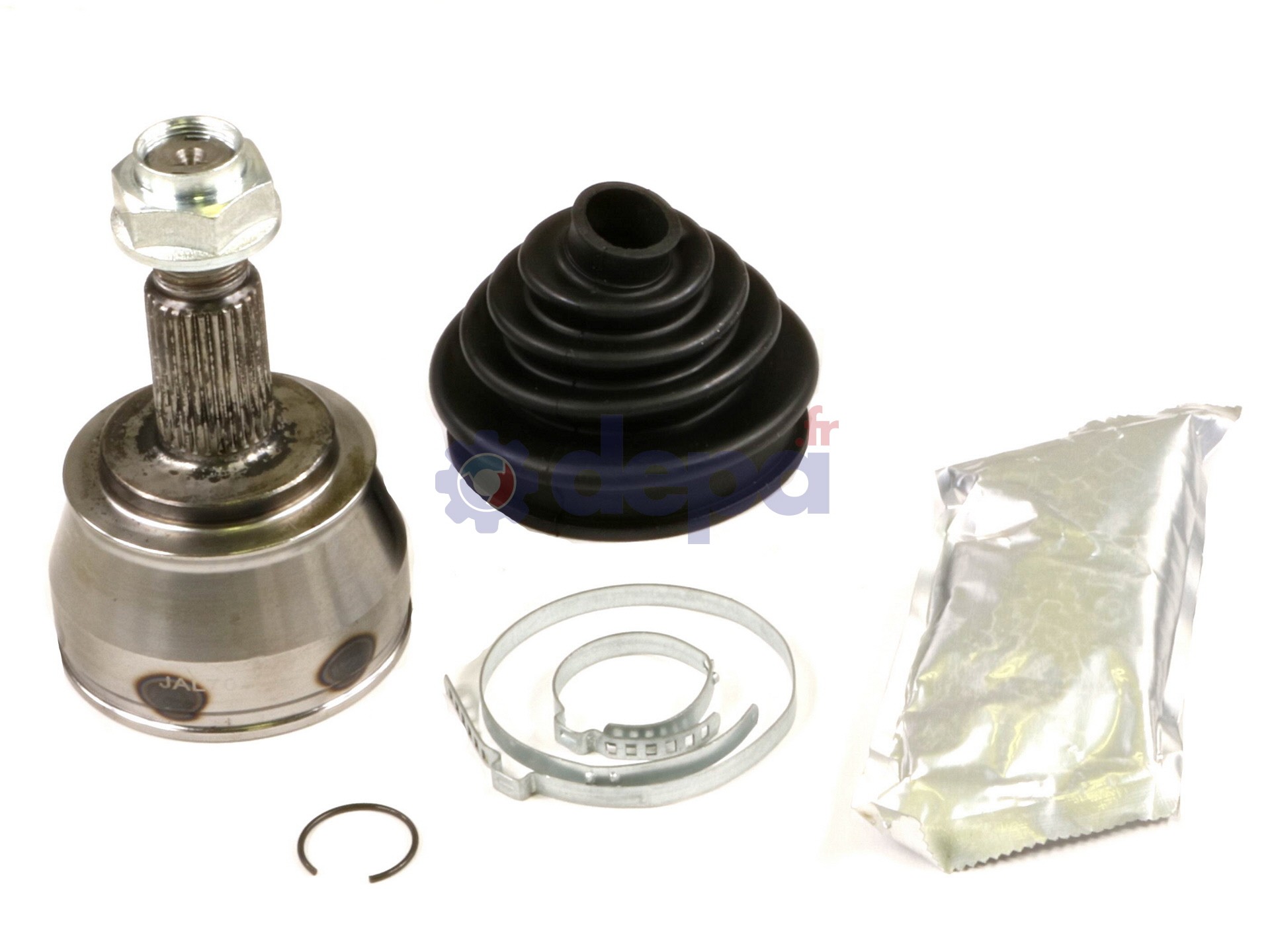

FIAT DOBLO II LEFT-SIDE

Name: FIAT DOBLO II LEFT-SIDE
Brand: Depa
SKU: 3260990
Price: 193.3 EUR
Availability: InStock

Ref : 3260990

Matching vehicles :

DOBLO II

Family :TR

Height : 25 mm

Compressed length : 595 mm

Observations : With heavy-duty suspension

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 32 mm

Outer spline diameter : 27 mm

Housing diameter : 72.5 mm

Length of the gearbox output without seal seat : 58 mm

Number of external splines : 25

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29.5 mm

Diamètre du bol : 90 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21.5 mm

Beads thickness : 14 mm

Length : 70 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 26

Sealing kit	COTE ROUE	T3034
	COTE ROUE	5020

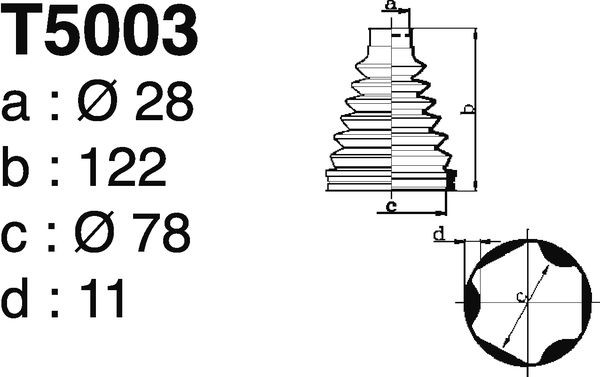

	COTE BOITE	T5003
	COTE BOITE	6085
CV joint	COTE ROUE	JAL75
CV joint	COTE BOITE	CBMAL30GT
Fixation	COTE ROUE	EC021
Tripod joint	COTE BOITE	TRIAL70

Equivalence to manufacturer references

FIAT : 51822813+55221323
FIAT : 51933670+55221323
FIAT : 52130452+55221323
FIAT : 71797036+55221323
FIAT : 71797154+55221323
