Catalog

Search by vehicle

Category :

Transmission

Return

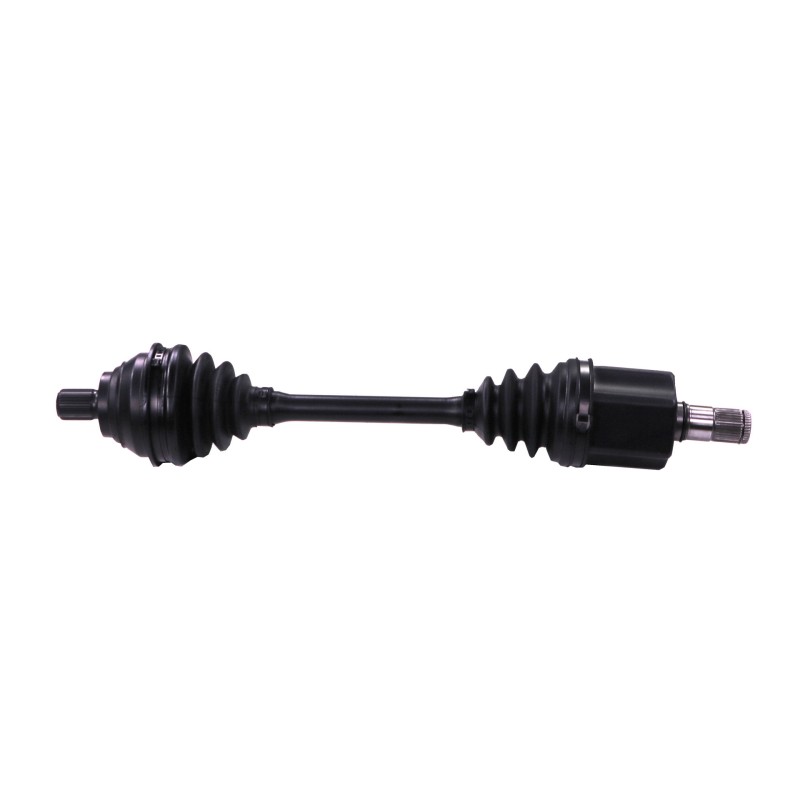

VW TIGUAN II ALLSPACE AUTOMATIC TRANSMISSION LEFT-SIDE

Name: VW TIGUAN II ALLSPACE AUTOMATIC TRANSMISSION LEFT-SIDE
Brand: Depa
SKU: 3778270
Price: 520.81 EUR
Availability: OutOfStock

Ref : 3778270

Matching vehicles :

TIGUAN II ALLSPACE

Family :TR

Compressed length : 570 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 30 mm

Housing diameter : 72.5 mm

Length of the gearbox output without seal seat : 52 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28.5 mm

Diamètre du bol : 94 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 36

Number of splines on inner race : 28

Observations : 8 balls

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21.5 mm

Beads thickness : 14 mm

Length : 70 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 34

Fixation	COTE ROUE	VI003
CV joint	COTE ROUE	JSE12
CV joint	COTE BOITE	CBMW2370GT
Sealing kit	COTE ROUE	5026
Sealing kit	COTE BOITE	6085
Tripod joint	COTE BOITE	TRIFO81

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 5QN407271K
