Catalog

Search by vehicle

Category :

Transmission

Return

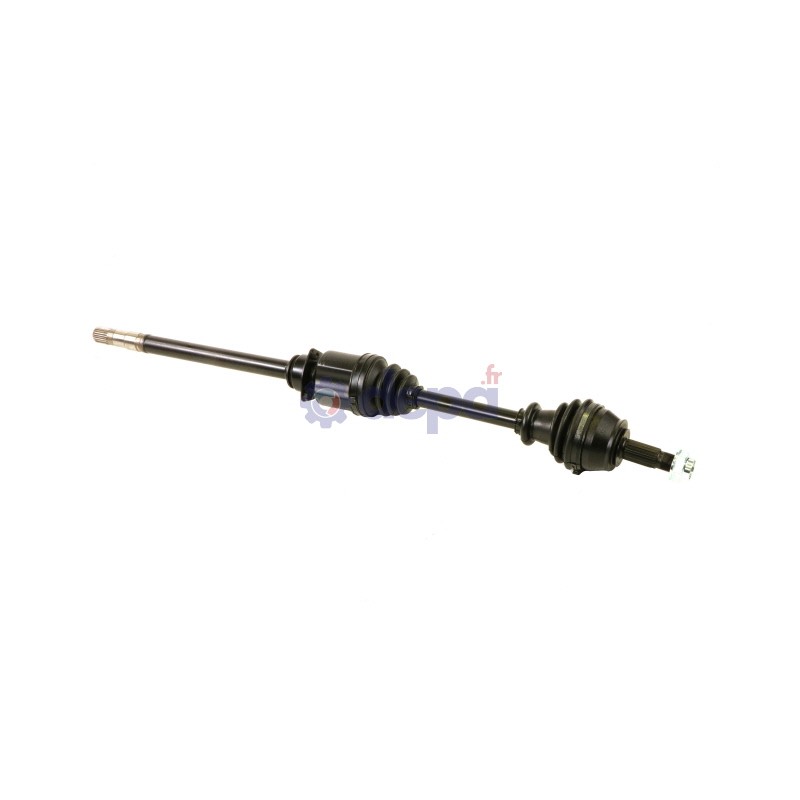

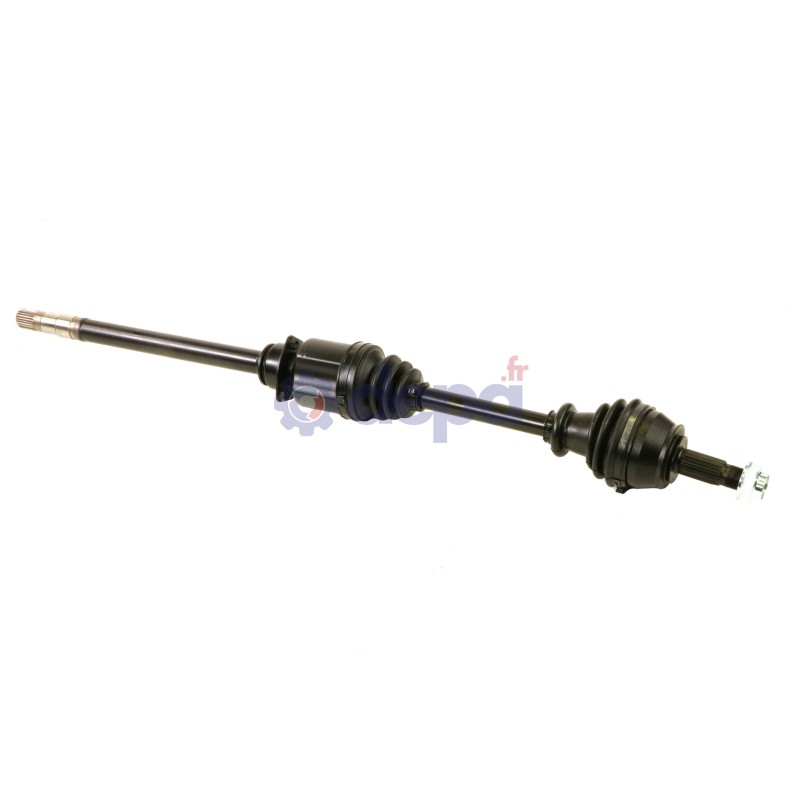

FIAT FIORINO / QUBO JTD D

Name: FIAT FIORINO / QUBO JTD D
Brand: Depa
SKU: 3269200
Price: 162.42 EUR
Availability: InStock

Ref : 3269200

Matching vehicles :

FIORINO II / QUBO - FIORINO II

Family :TR

Length of the shaft (including bearing unit) : 380 mm

ABS on the vehicle : Yes

Observations : Flange Ø71mm/Not EURO 5

Compressed length : 950 mm

COTE ROUE

Outer spline diameter : 27 mm

Observations : Coll, Diam,71

Number of external splines : 25

Shoulder diameter : 51 mm

Number of splines on inner race : 24

Type and position (snap ring/circlip) : Centered snap ring

Diamètre du bol : 86 mm

COTE BOITE

Housing diameter : 73 mm

Nombre de cannelures extérieures : 24

Length of the gearbox output without seal seat : 60 mm

Diamètre des cannelures extérieures : 26 mm

Seal seat diameter : 30 mm

Length of the shaft (including bearing unit) : 380 mm

Sealing kit	COTE ROUE	T3037
	COTE ROUE	5017
	COTE BOITE	6061
CV joint	COTE ROUE	JF03
CV joint	COTE BOITE	PALCBMF09DT
FIXATION	COTE ROUE	EC021
ROULEMENT	COTE BOITE	RLT002
TRIAXE	COTE BOITE	TRIF09

Equivalence to manufacturer references

FIAT : 71797913+55205034
FIAT : 51787180+55205034
FIAT : 51934087+55205034
