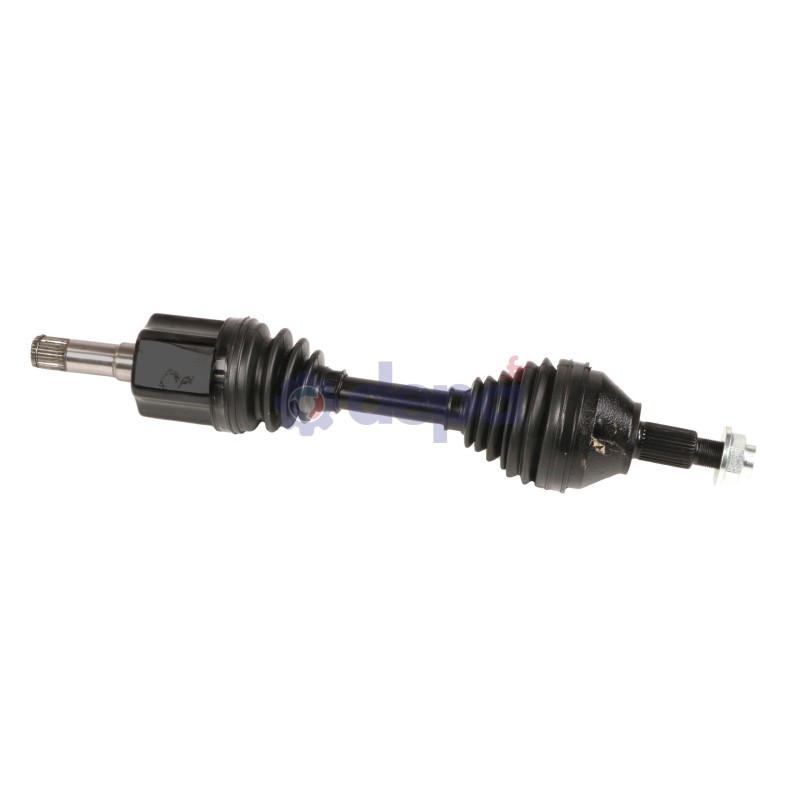

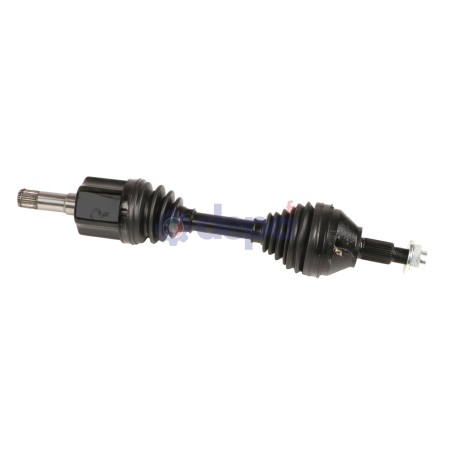

ALFA 159/BRERA 2.4 JTD LEFT-SIDE

Name: ALFA 159/BRERA 2.4 JTD LEFT-SIDE
Brand: Depa
SKU: 3291150
Price: 207.08 EUR
Availability: InStock

Ref : 3291150

Matching vehicles :

159 - BRERA

Family :TR

Height : 25 mm

Compressed length : 600 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 29.5 mm

Housing diameter : 80 mm

Length of the gearbox output without seal seat : 78 mm

Number of external splines : 27

Number of splines on inner race : 27

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 32.5 mm

Diamètre du bol : 100 mm

Shoulder diameter : 61 mm

Nombre de cannelures extérieures : 30

Nombre de cannelures sur la noix : 27

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 75 mm

Diameter (little) : 28.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 46.7 mm

Height : 23 mm

Number of splines : 27

Sealing kit	COTE ROUE	5026
		T3035
		T3038
		5036
	COTE BOITE	T5006
		T5004
		T5003
		6182
		6113
Fixation	COTE ROUE	EC021
CV joint	COTE ROUE	JAL11
CV joint	COTE BOITE	CBMAL11GT
Tripod joint	COTE BOITE	TRIAL11
