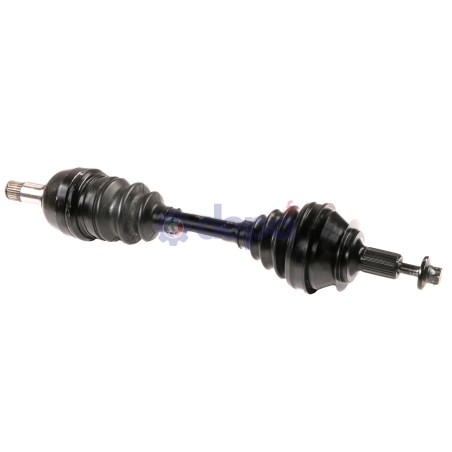

MERCEDES B-CLASS II/CLA LEFT-SIDE

Name: MERCEDES B-CLASS II/CLA LEFT-SIDE
Brand: Depa
SKU: 3305170
Price: 322.79 EUR
Availability: InStock

Ref : 3305170

Matching vehicles :

CLASSE CLA (X117) - CLASSE B II - CLASSE GLA (X156) - CLASSE A III

Family :TR

Compressed length : 535 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 38 mm

Outer spline diameter : 29 mm

Housing diameter : 96 mm

Length of the gearbox output without seal seat : 65 mm

Number of external splines : 27

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 31.5 mm

Diamètre du bol : 100 mm

Shoulder diameter : 65 mm

Nombre de cannelures extérieures : 30

Number of splines on inner race : 27

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 68 mm

Diameter (little) : 18 mm

Length : 97 mm

Number of grooves : 1

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

KITS ETANCHEITE TR neuf	COTE ROUE	5026
KITS ETANCHEITE TR neuf	COTE BOITE	5002

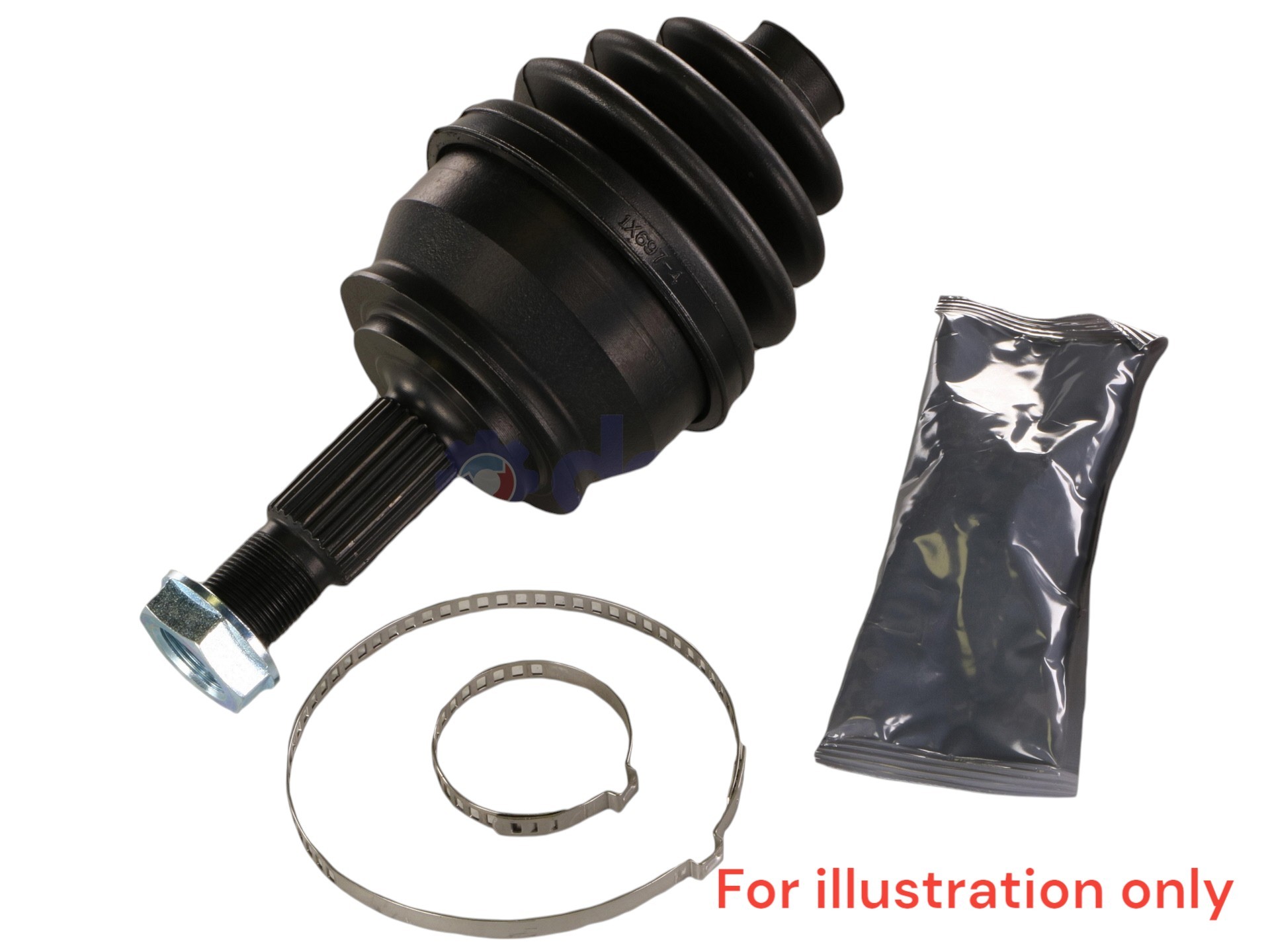

JOINT HOMO Echange	COTE ROUE	JME54
JOINT HOMO Echange	COTE BOITE	CBMME54G
FIXATION	COTE ROUE	VI002

Equivalence to manufacturer references

MERCEDES-BENZ : 2463301601
MERCEDES-BENZ : 2463302001
MERCEDES-BENZ : 2463303100
MERCEDES-BENZ : 2463309400
