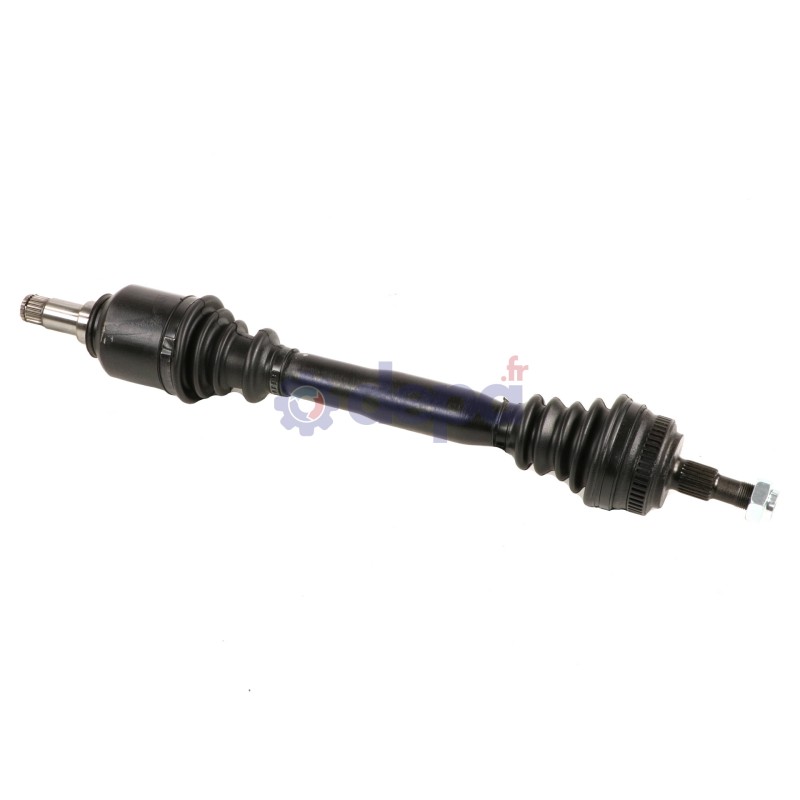

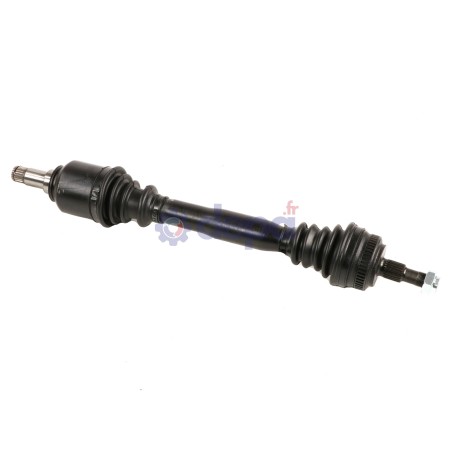

MERCEDES A-CLASS LEFT-SIDE

Name: MERCEDES A-CLASS LEFT-SIDE
Brand: Depa
SKU: 3308002
Price: 316.43 EUR
Availability: InStock

Ref : 3308002

Matching vehicles :

VANEO - CLASSE A I

Family :TR

Height : 22 mm

Compressed length : 573 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

COURONNE ABS COTE ROUE

Outer diameter : 73 mm

Inner diameter : 69 mm

Width : 13 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 36 mm

Outer spline diameter : 25 mm

Housing diameter : 73 mm

Length of the gearbox output without seal seat : 56 mm

Number of external splines : 22

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 24.5 mm

Diamètre du bol : 82 mm

Shoulder diameter : 57 mm

Nombre de cannelures extérieures : 24

Number of splines on inner race : 27

Type and position (snap ring/circlip) : Internal snap ring

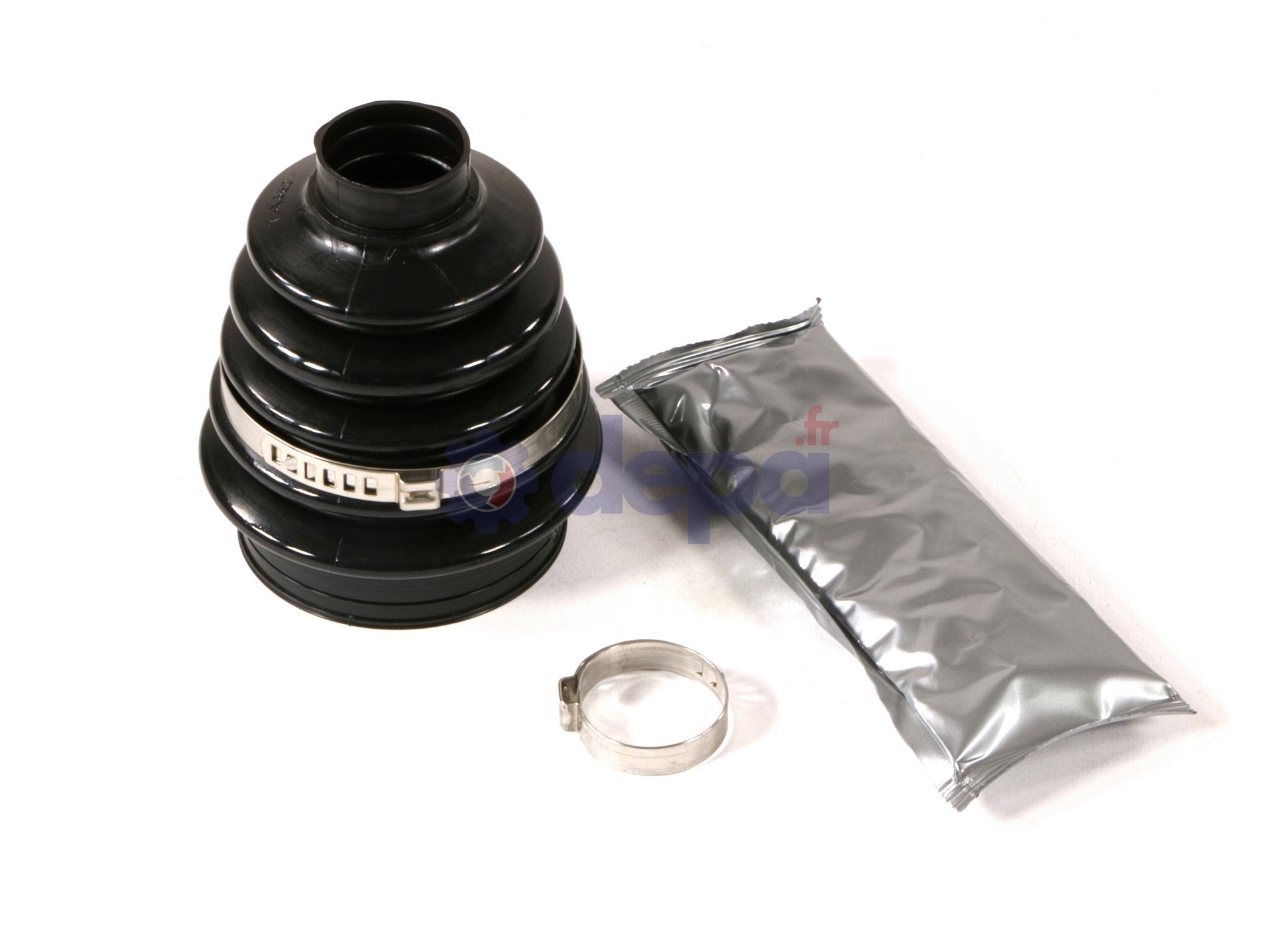

SOUFFLET COTE BOITE

Diameter (big) : 73 mm

Diameter (little) : 21 mm

Length : 91 mm

Type of material : NITRILE

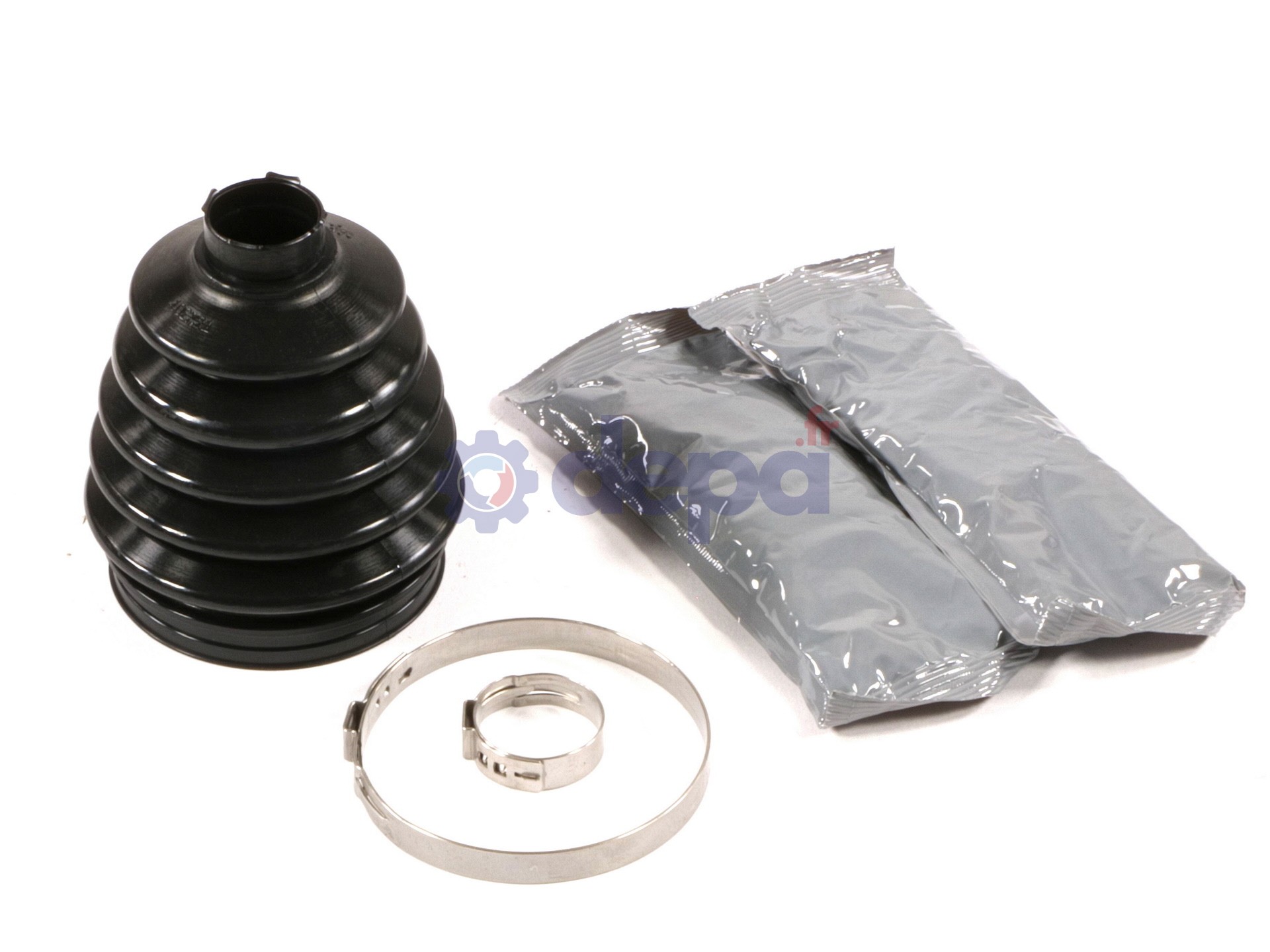

SOUFFLET COTE ROUE

Diamètre (grand) : 73 mm

Diamètre (petit) : 21 mm

Longueur : 91 mm

Type de matière : NÉOPRÈNE

Sealing kit	COTE ROUE	5025
		T3129
		T3102
		5025
	COTE BOITE	5025
		T5026
		5025
CV joint	COTE ROUE	JME80
	COTE ROUE	JME80
	COTE BOITE	CBMME80G
Fixation	COTE ROUE	EC031
Fixation		EC031
ABS ring		COU076

Equivalence to manufacturer references

MERCEDES-BENZ : 1683603172
MERCEDES-BENZ : 1683603472
MERCEDES-BENZ : 1683603772
MERCEDES-BENZ : 1683604572
MERCEDES-BENZ : 1683604772
MERCEDES-BENZ : A1683603172
MERCEDES-BENZ : A1683603472
MERCEDES-BENZ : A1683603772
MERCEDES-BENZ : A1683604572
