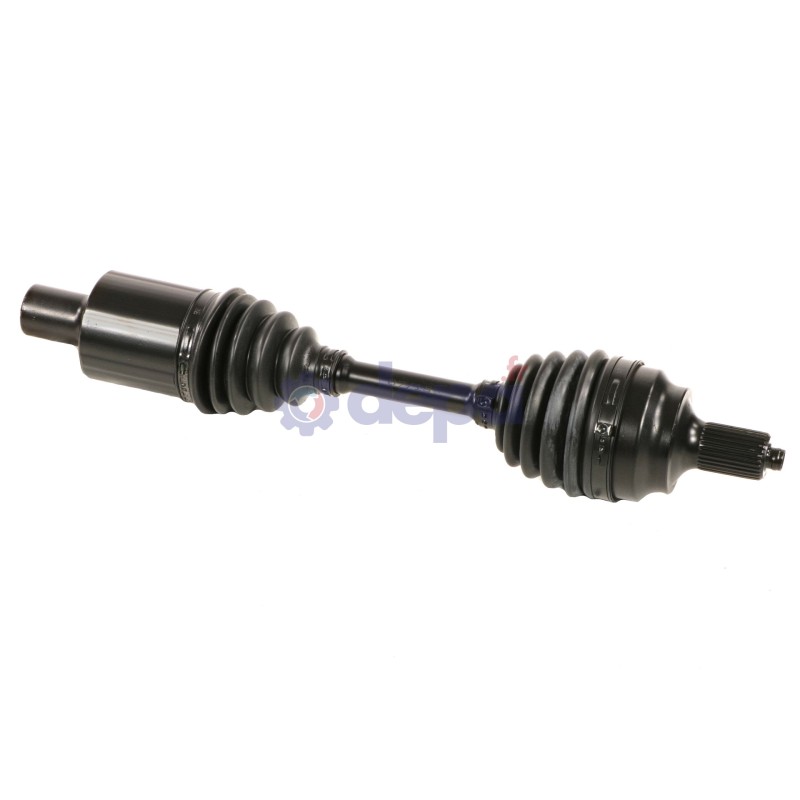

MERCEDES CIII-CLASS AUTOMATIC TRANSMISSION FRONT LEFT-SIDE

Name: MERCEDES CIII-CLASS AUTOMATIC TRANSMISSION FRONT LEFT-SIDE
Brand: Depa
SKU: 3309702
Price: 297.59 EUR
Availability: InStock

Ref : 3309702

Matching vehicles :

CLASSE C III - CLASSE C (W204)

Family :TR

Compressed length : 498 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 27 mm

Housing diameter : 76 mm

Number of internal splines : 34

Presence of a pin : No

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 32 mm

Diamètre du bol : 89 mm

Shoulder diameter : 71 mm

Number of external splines : 30

Number of splines on inner race : 25

Observations : Internal threading 16x150

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 68 mm

Diameter (little) : 18 mm

Length : 97 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 38 mm

Height : 25 mm

Number of splines : 27

CV joint	COTE ROUE	JME97
CV joint	COTE BOITE	CBFME97D
Fixation	COTE ROUE	VI002
Fixation		VI007
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	5002

Equivalence to manufacturer references

MERCEDES-BENZ : 2043301101
MERCEDES-BENZ : 2043301300
MERCEDES-BENZ : 204330130080
MERCEDES-BENZ : 2043302001
MERCEDES-BENZ : 2043302401
MERCEDES-BENZ : 2043305100
MERCEDES-BENZ : 204330510080
MERCEDES-BENZ : 2043305500
MERCEDES-BENZ : 204330550080
MERCEDES-BENZ : A2043301101
MERCEDES-BENZ : A2043301300
MERCEDES-BENZ : A204330130080
MERCEDES-BENZ : A2043302001
MERCEDES-BENZ : A2043302401
MERCEDES-BENZ : A2043305100
MERCEDES-BENZ : A204330510080
MERCEDES-BENZ : A2043305500
MERCEDES-BENZ : A204330550080
