Catalog

Search by vehicle

Category :

Transmission

Return

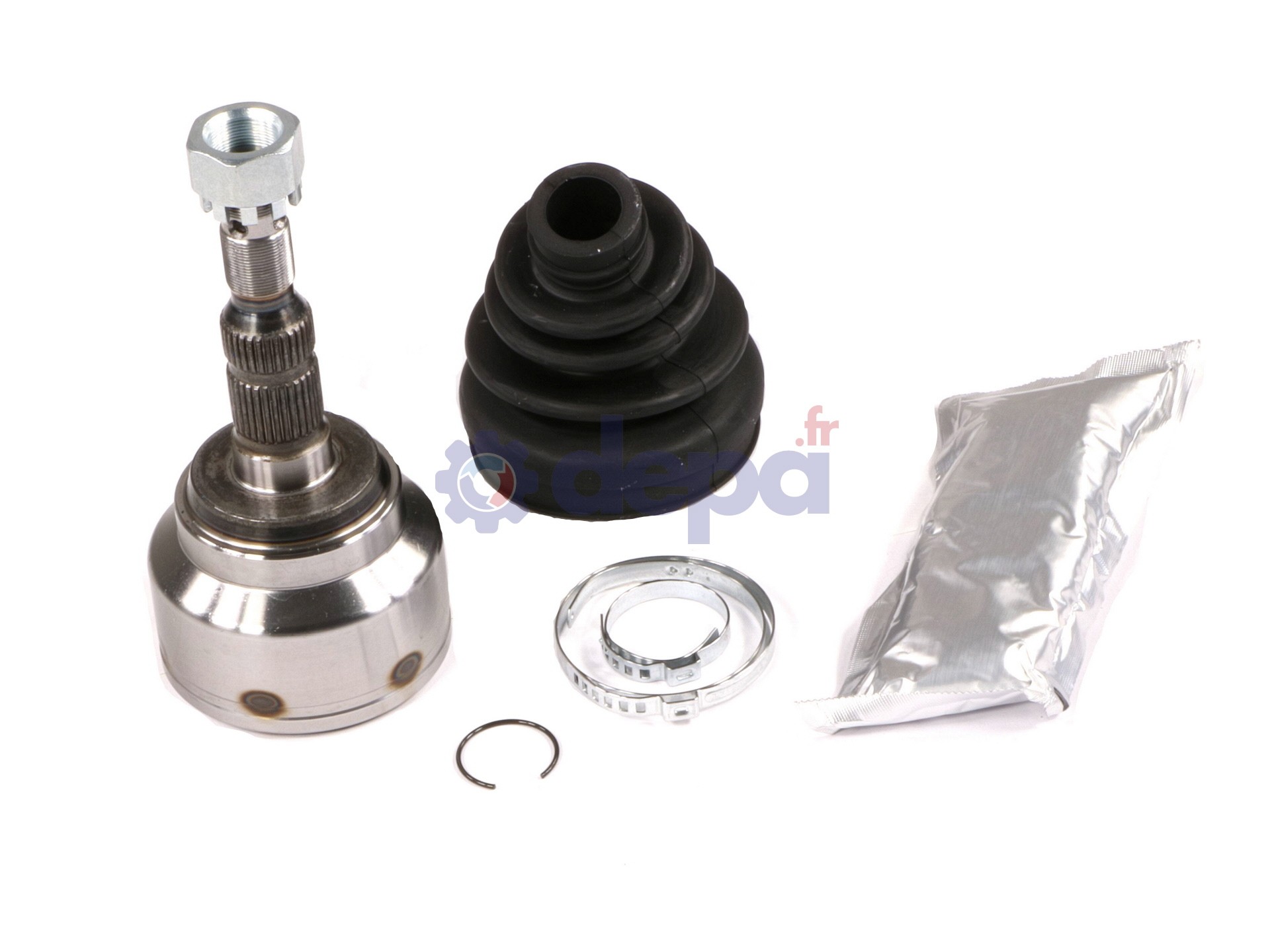

OPEL ASTRA 2/ZAFIRA

Name: OPEL ASTRA 2/ZAFIRA
Brand: Depa
SKU: 3331602
Price: 245.37 EUR
Availability: InStock

Ref : 3331602

Matching vehicles :

ASTRA G - VECTRA B - ZAFIRA A

Family :TR

Height : 21.5 mm

Compressed length : 590 mm

ABS on the vehicle : Optional

Thread pitch type : 20X100

Nut type : Crown

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 34.9 mm

Outer spline diameter : 29 mm

Housing diameter : 86 mm

Length of the gearbox output without seal seat : 80 mm

Number of external splines : 27

Number of splines on inner race : 35

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 89.7 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 33

Nombre de cannelures sur la noix : 35

Observations : 8 balls

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 88 mm

Diameter (little) : 22 mm

Length : 88 mm

Number of grooves : 1

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

Fixation	COTE ROUE	EC003
CV joint	COTE ROUE	JO16
CV joint	COTE BOITE	CBMO16
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	5020

Equivalence to manufacturer references

OPEL : 24404966
OPEL : 374455
OPEL : 9200333
OPEL : 93171792
VAUXHALL : 24404966
VAUXHALL : 9200333
VAUXHALL : 93171792
