Catalog

Search by vehicle

Category :

Transmission

Return

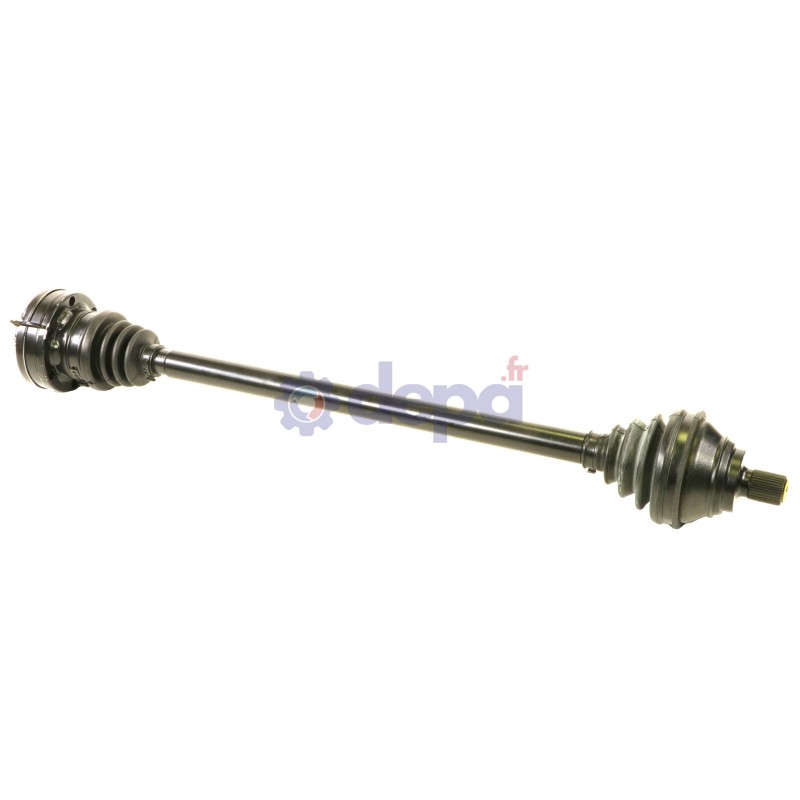

AUDI/SEAT/VOLKSWAGEN

Name: AUDI/SEAT/VOLKSWAGEN
Brand: Depa
SKU: 3370300
Price: 192.47 EUR
Availability: InStock

Ref : 3370300

Matching vehicles :

TOURAN - PASSAT 4 - GOLF V - SIROCCO COUPE

Family :TR

Round flange diameter 1 : 108 mm

Compressed length : 795 mm

ABS on the vehicle : Yes

COTE ROUE

Housing diameter : 98 mm

Nombre de cannelures sur la noix : 27

Outer spline diameter : 28.5 mm

Shoulder diameter : 59 mm

Number of external splines : 36

Type and position (snap ring/circlip) : Internal snap ring

COTE BOITE

Number of splines on inner race : 28

Outer diameter (boot side) : 108 mm

Flange thickness : 35 mm

Number of mounting points : 6

Outer diameter (gearbox side) : 108 mm

Mounting hole diameter : 10 mm

Sealing kit	COTE ROUE	T3047
		5026
		5026
		5026
		5026
		5026
		5026
	COTE BOITE	6036
		6133
		6020
		6022
		6020
		6022
		6020
		6022
CV joint	COTE ROUE	JSE12
		JW01
		JW011
		JSE12
		JW01
		JW011
	COTE BOITE	FL32
		FL32
		FL32
		FL32
		FL32
		FL32
FIXATION	COTE ROUE	VI005
FIXATION	COTE ROUE	VI003

Equivalence to manufacturer references

SEAT : 7N0407764C
VOLKSWAGEN : 1K0407272RR
SEAT : 1K0407764LX
AUDI : 1K0407764DX
VOLKSWAGEN : 1K0407272TM
VOLKSWAGEN : 1K0407272TP
VOLKSWAGEN : 5N0407762F
AUDI : 1K0407272RE
VOLKSWAGEN : 5Q0407762TX
SEAT : 1K0407272RB
VOLKSWAGEN : 5N0407762FX
VOLKSWAGEN : 5Q0407272DS
SEAT : 7N0407764QX
VOLKSWAGEN : 1K0407272TJ
VOLKSWAGEN : 1K0407272EN
SEAT : 1K0407762PX
SEAT : 7N0407764Q
SEAT : 1K0407272NJ
VOLKSWAGEN : 5N0407766B
VOLKSWAGEN : 1K0407764TX
VOLKSWAGEN : 1K0407764QX
VOLKSWAGEN : 1K0407454DX
VOLKSWAGEN : 1K0407762BX
SKODA : 1K0407272PM
SEAT : 7N0407764CX
AUDI : 1K0407272RF
VOLKSWAGEN : 5N0407766BX
VOLKSWAGEN : 1K0407272EK
AUDI : 1K0407272KF
SEAT : 1K0407272KF
SKODA : 1K0407272KF
VOLKSWAGEN : 1K0407272KF
