Catalog

Search by vehicle

Category :

Transmission

Return

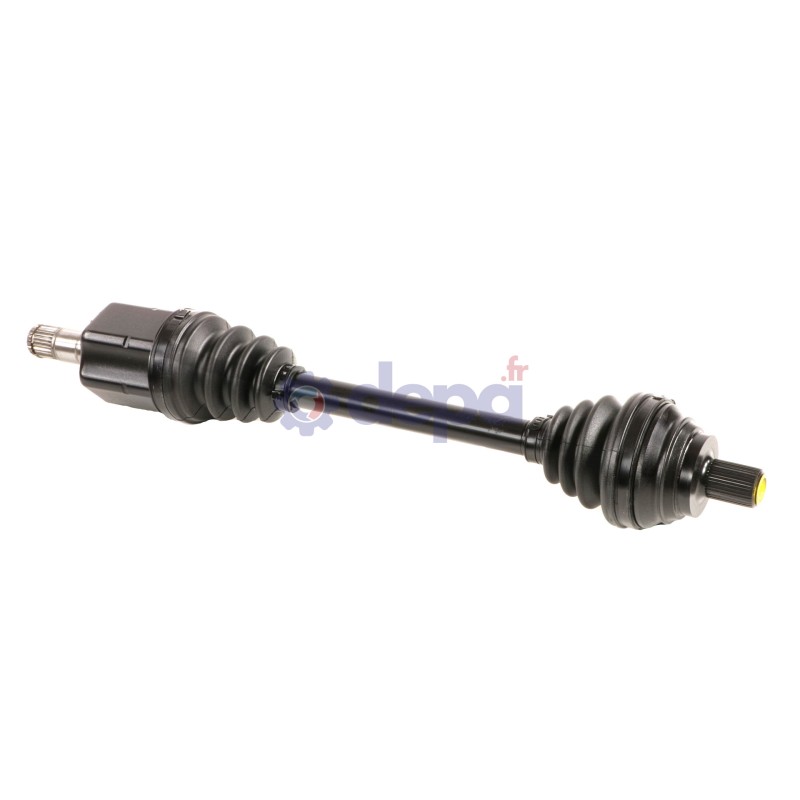

VOLKSWAGEN GOLF V/AUDI A3 II AUTOMATIC TRANSMISSION

Name: VOLKSWAGEN GOLF V/AUDI A3 II AUTOMATIC TRANSMISSION
Brand: Depa
SKU: 3371202
Price: 236.6 EUR
Availability: InStock

Ref : 3371202

Matching vehicles :

A3 SPORTBACK - TOLEDO 3 - GOLF V - ALTEA

Family :TR

Compressed length : 590 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 31 mm

Outer spline diameter : 26.5 mm

Housing diameter : 71 mm

Length of the gearbox output without seal seat : 50 mm

Number of external splines : 26

Number of splines on inner race : 32

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28.5 mm

Diamètre du bol : 90 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 36

Nombre de cannelures sur la noix : 30

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 69 mm

Diameter (little) : 23 mm

Beads thickness : 11 mm

Length : 85 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 41.5 mm

Height : 21 mm

Number of splines : 32

Sealing kit	COTE ROUE	T3044
	COTE ROUE	5038
	COTE BOITE	6084
	COTE BOITE	6084
Fixation	COTE ROUE	VI003
CV joint	COTE ROUE	JW02
CV joint	COTE BOITE	CBMW12T
Tripod joint	COTE BOITE	TRIW19
Tripod joint	COTE BOITE	TRIW19

Equivalence to manufacturer references

AUDI : 1K0407271BD
AUDI : 1K0407271PJ
SEAT : 1K0407271BD
SEAT : 1K0407271CQ
SKODA : 1K0407271BD
SKODA : 1K0407271PJ
SKODA : 1K0407453KX
SKODA : 1K0407453LX
VOLKSWAGEN (SVW) : 1K0407271BD
VOLKSWAGEN (SVW) : 1K0407271PJ
VOLKSWAGEN (SVW) : 1K0407451PX
VOLKSWAGEN (SVW) : 1K0407451RX
VOLKSWAGEN (SVW) : 5Q0407761SX
