Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

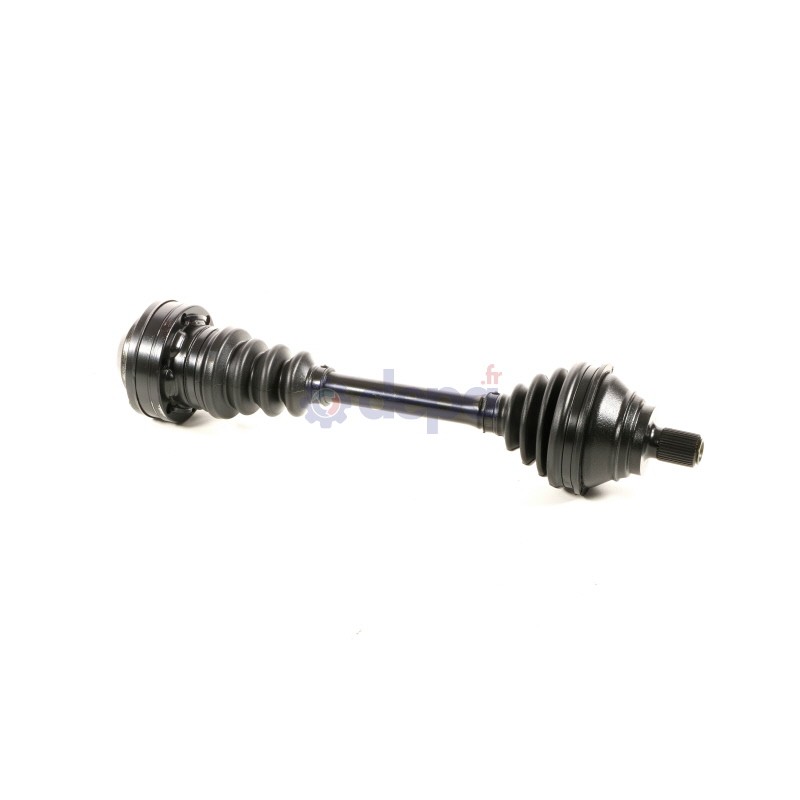

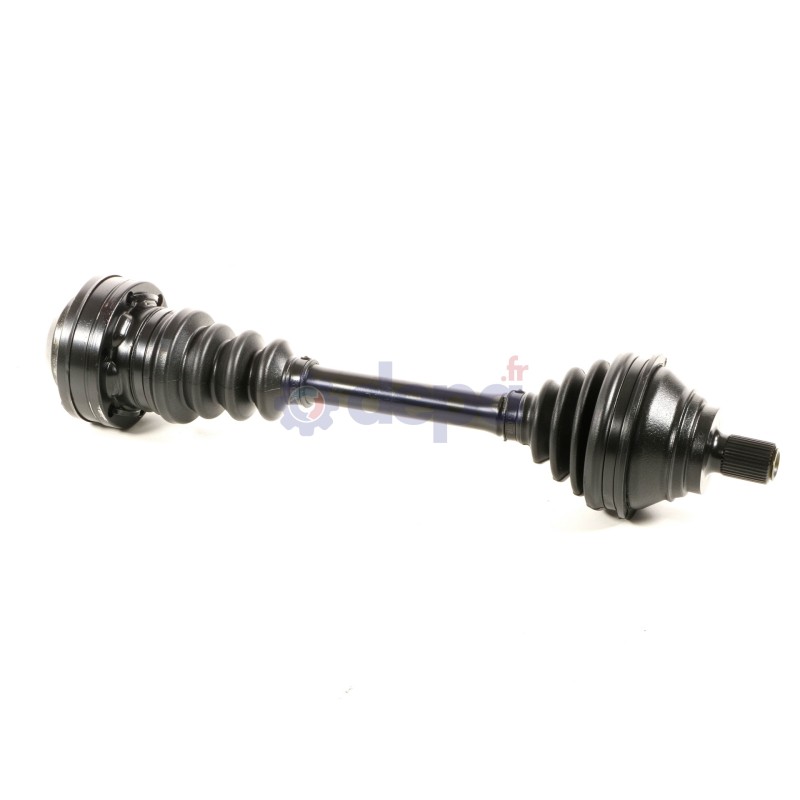

VW GOLF V GTI AUTOMATIC TRANSMISSION LEFT-SIDE

Name: VW GOLF V GTI AUTOMATIC TRANSMISSION LEFT-SIDE
Brand: Depa
SKU: 3371852
Price: 245.88 EUR
Availability: OutOfStock

Ref : 3371852

Family :TR

Round flange diameter 1 : 108 mm

Compressed length : 495 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Mounting hole diameter : 10 mm

Outer diameter (gearbox side) : 108 mm

Outer diameter (boot side) : 108 mm

Flange thickness : 35 mm

Number of splines on inner race : 28

Number of mounting points : 6

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 28.5 mm

Housing diameter : 98 mm

Shoulder diameter : 59 mm

Number of external splines : 36

Nombre de cannelures sur la noix : 27

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 107.5 mm

Diameter (little) : 24 mm

Length : 120 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

KITS ETANCHEITE TR neuf	COTE ROUE	T3047
	COTE ROUE	5026
	COTE BOITE	6036
		6022
		6133
FIXATION	COTE ROUE	VI003
JOINT HOMO Echange	COTE ROUE	JW011
	COTE ROUE	JW01
	COTE BOITE	FL32

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 1K0407271EG
