Catalog

Search by vehicle

Category :

Transmission

Return

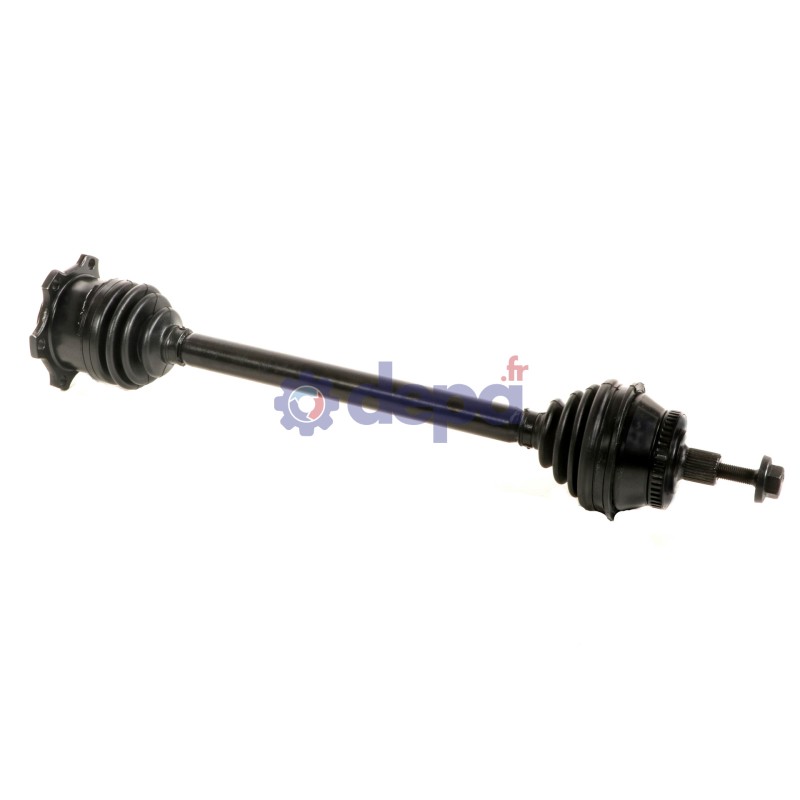

VOLKSWAGEN PASSAT/AUDI A4 TDI

Name: VOLKSWAGEN PASSAT/AUDI A4 TDI
Brand: Depa
SKU: 3375200
Price: 194.67 EUR
Availability: InStock

Ref : 3375200

Matching vehicles :

PASSAT 3 - A4 - PASSAT 2 - SUPERB I

Family :TR

Compressed length : 625 mm

ABS on the vehicle : Yes

Nut type : Washer

COURONNE ABS COTE ROUE

Outer diameter : 81 mm

Inner diameter : 77 mm

Width : 11 mm

Number of teeth : 45

JOINT HOMOCINETIQUE COTE BOITE

Outer diameter (gearbox side) : 90 mm

Outer diameter (boot side) : 130 mm

Number of splines on inner race : 34

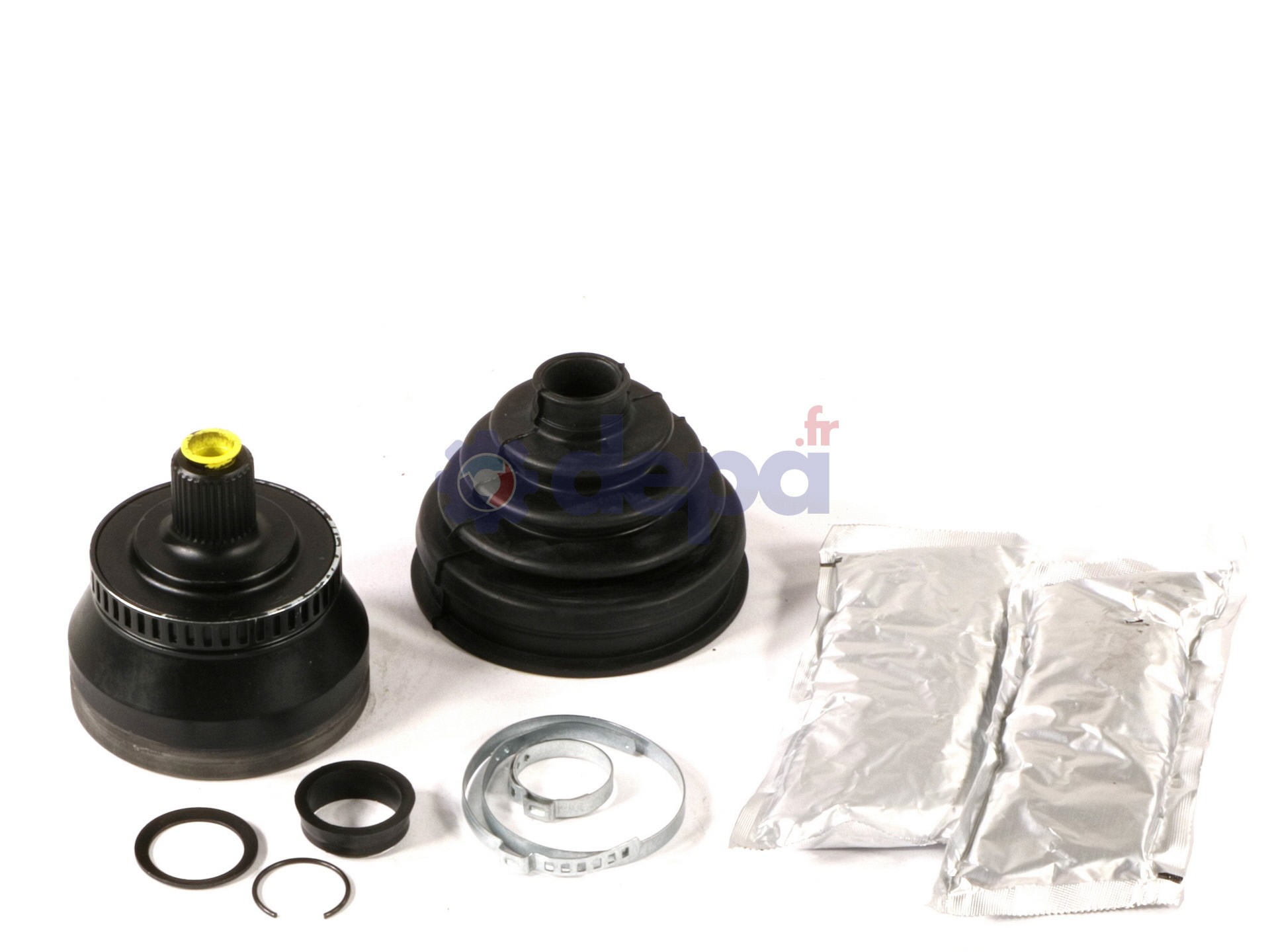

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 27 mm

Housing diameter : 98 mm

Shoulder diameter : 53 mm

Number of external splines : 33

Nombre de cannelures sur la noix : 27

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 88 mm

Diameter (little) : 22 mm

Length : 88 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 41 mm

Height : 24 mm

Number of splines : 34

Sealing kit	COTE ROUE	5026
	COTE BOITE	6056
	COTE BOITE	5020
Fixation	COTE ROUE	VI005
CV joint	COTE ROUE	JW52
CV joint	COTE BOITE	CBW54
Tripod joint	COTE BOITE	TRIAL66
Transmission seal		B4560
ABS ring		COU033

Equivalence to manufacturer references

AUDI : 8D0407272BQ
VOLKSWAGEN (SVW) : 8D0407272BJ
VOLKSWAGEN (SVW) : 8D0407272EK
