Catalog

Search by vehicle

Category :

Transmission

Return

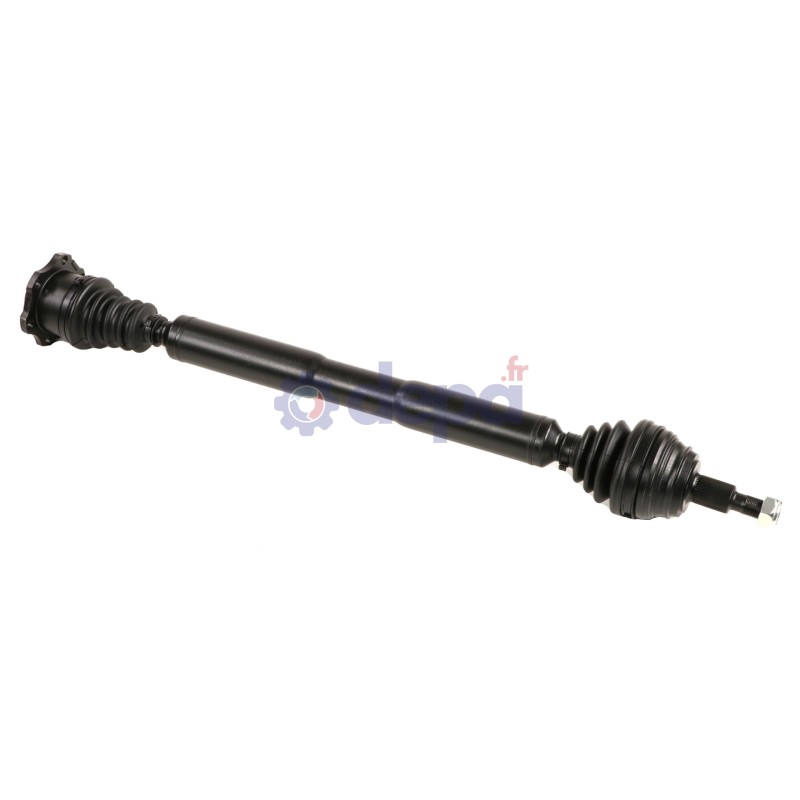

VOLKSWAGEN GOLF IV/AUDI TT I

Name: VOLKSWAGEN GOLF IV/AUDI TT I
Brand: Depa
SKU: 3376100
Price: 223.62 EUR
Availability: InStock

Ref : 3376100

Matching vehicles :

TOLEDO 2 - GOLF IV - BORA - NEW BEETLE

Family :TR

Height : 22 mm

Compressed length : 807 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Mounting hole diameter : 10 mm

Outer diameter (gearbox side) : 74 mm

Outer diameter (boot side) : 108 mm

Number of splines on inner race : 30

Number of mounting points : 6

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 28 mm

Housing diameter : 90 mm

Shoulder diameter : 53 mm

Number of external splines : 36

Nombre de cannelures sur la noix : 30

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 68 mm

Diameter (little) : 18 mm

Length : 97 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39.5 mm

Height : 20 mm

Number of splines : 30

Sealing kit	COTE ROUE	T3044
		T3003
		T3047
		5038
	COTE BOITE	T5009
	COTE BOITE	5002
CV joint	COTE ROUE	JW83
Fixation	COTE ROUE	EC031
Tripod joint	COTE BOITE	TRIW35
Transmission seal		B4862

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 1J0407272AD
VOLKSWAGEN (SVW) : 1J0407272BT
VOLKSWAGEN (SVW) : 1J0407272CS
VOLKSWAGEN (SVW) : 1J0407452GX
VOLKSWAGEN (SVW) : 1J0407452HX
