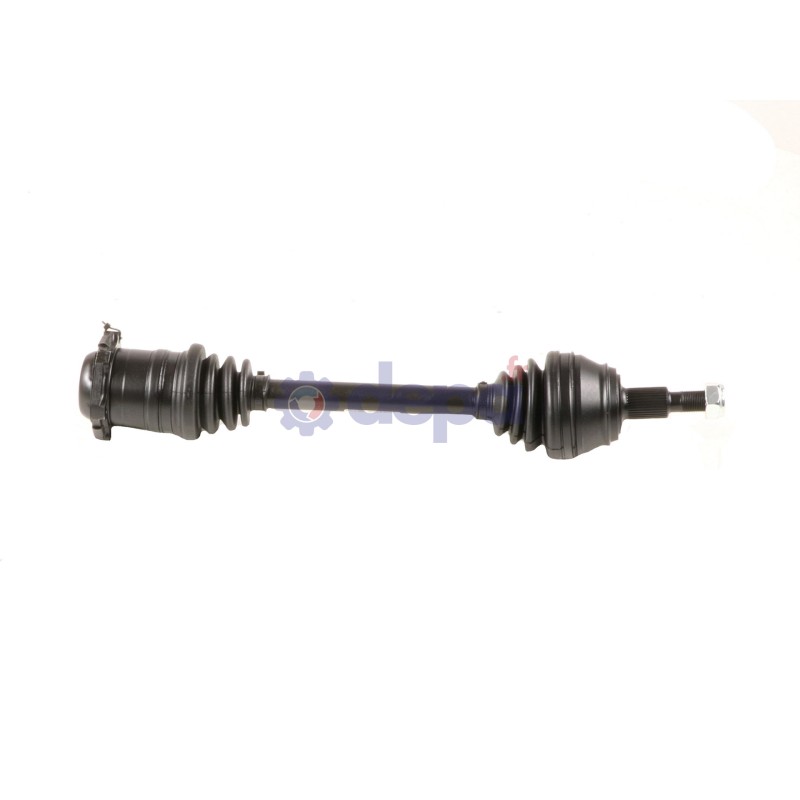

VW GOLF IV/LEON/TOLEDO II LEFT-SIDE

Name: VW GOLF IV/LEON/TOLEDO II LEFT-SIDE
Brand: Depa
SKU: 3376402
Price: 227.92 EUR
Availability: InStock

Ref : 3376402

Matching vehicles :

TOLEDO 2 - LEON - BORA - GOLF IV

Family :TR

Height : 22 mm

Compressed length : 545 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Mounting hole diameter : 8 mm

Outer diameter (gearbox side) : 74 mm

Outer diameter (boot side) : 100 mm

Flange thickness : 10 mm

Number of mounting points : 6

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 28 mm

Housing diameter : 90 mm

Shoulder diameter : 53 mm

Number of external splines : 36

Number of splines on inner race : 30

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 68 mm

Diameter (little) : 18 mm

Length : 97 mm

Number of grooves : 1

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39.5 mm

Height : 20 mm

Number of splines : 30

Sealing kit	COTE ROUE	T3003
		T3047
		T3044
		5038
	COTE BOITE	T5009
		5002
		5002
CV joint	COTE ROUE	JW83
Fixation	COTE ROUE	EC031
Tripod joint	COTE BOITE	TRIW35
Transmission seal		B4862

Equivalence to manufacturer references

AUDI : 1J0407271BG
AUDI : 1J0407271CJ
AUDI : 1J0407271GD
AUDI : 1J0407451J
AUDI : 1J0407451NV
AUDI : 1J0407451NX
AUDI : 1J0407451TV
SEAT : 1J0407271BG
SEAT : 1J0407271CJ
SEAT : 1J0407271GD
SEAT : 1J0407451J
SEAT : 1J0407451NV
SEAT : 1J0407451NX
SEAT : 1J0407451TV
SEAT : 1J0407451TX
SKODA : 1J0407271BG
SKODA : 1J0407271CJ
SKODA : 1J0407271GD
SKODA : 1J0407451J
SKODA : 1J0407451NV
SKODA : 1J0407451NX
SKODA : 1J0407451TV
VOLKSWAGEN (SVW) : 1J0407271BG
VOLKSWAGEN (SVW) : 1J0407271CJ
VOLKSWAGEN (SVW) : 1J0407271GA
VOLKSWAGEN (SVW) : 1J0407271GD
VOLKSWAGEN (SVW) : 1J0407271JL
VOLKSWAGEN (SVW) : 1J0407451J
VOLKSWAGEN (SVW) : 1J0407451JX
VOLKSWAGEN (SVW) : 1J0407451NV
VOLKSWAGEN (SVW) : 1J0407451NX
VOLKSWAGEN (SVW) : 1J0407451TV
VOLKSWAGEN (SVW) : 1J0407451TX
VOLKSWAGEN (SVW) : 1J0407452NX
VOLKSWAGEN (SVW) : JZW407451DX
