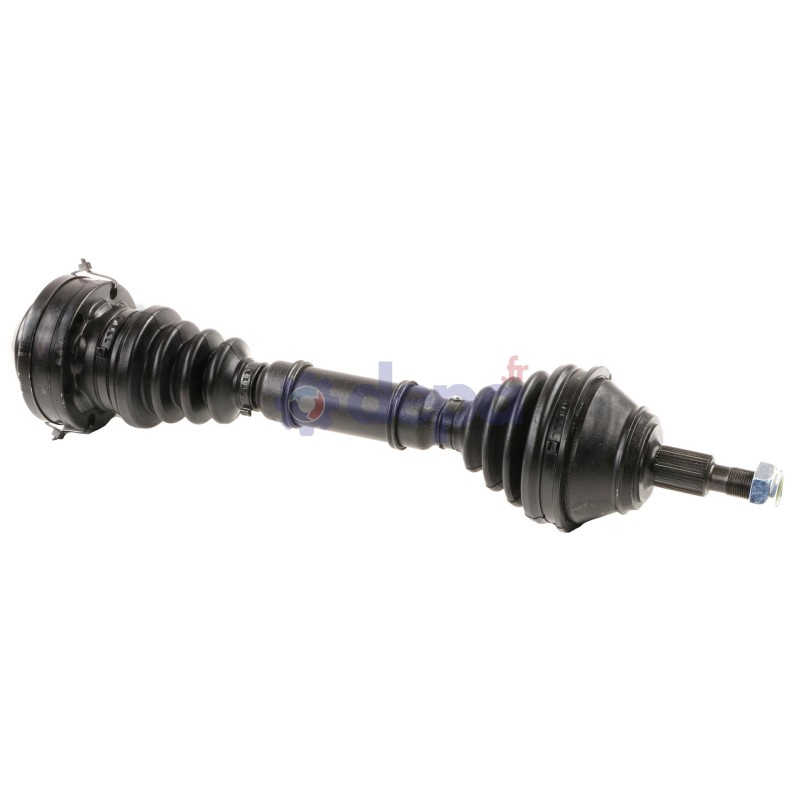

VW GOLF IV/SEAT LEON/A3 TDI G

Name: VW GOLF IV/SEAT LEON/A3 TDI G
Brand: Depa
SKU: 3376502
Price: 218.44 EUR
Availability: InStock

Ref : 3376502

Matching vehicles :

BORA - LEON - TOLEDO 2 - GOLF IV

Family :TR

Compressed length : 523 mm

Round flange diameter 1 : 108 mm

ABS on the vehicle : Yes

COTE BOITE

Outer diameter (gearbox side) : 108 mm

Mounting hole diameter : 10 mm

Number of mounting points : 6

Flange thickness : 35 mm

Number of splines on inner race : 28

Outer diameter (boot side) : 108 mm

COTE ROUE

Outer spline diameter : 28 mm

Type and position (snap ring/circlip) : Internal snap ring

Housing diameter : 98 mm

Shoulder diameter : 53 mm

Number of external splines : 36

Observations : With nut

Nombre de cannelures sur la noix : 27

Sealing kit	COTE ROUE	T3044
		T3047
		5026
		5026
	COTE BOITE	6133
		6022
		6036
CV joint	COTE ROUE	JW65
	COTE ROUE	JW65
	COTE BOITE	FL93
		FL32
		FL32
FIXATION	COTE ROUE	EC031
Transmission seal		B4862

Equivalence to manufacturer references

VOLKSWAGEN : 1J0407453FX
VOLKSWAGEN : 1J0407271LN
VOLKSWAGEN : JZW407449MX
VOLKSWAGEN : 1J0407451GX
VOLKSWAGEN : 1J0407451PX
VOLKSWAGEN : 1J0407451PV
