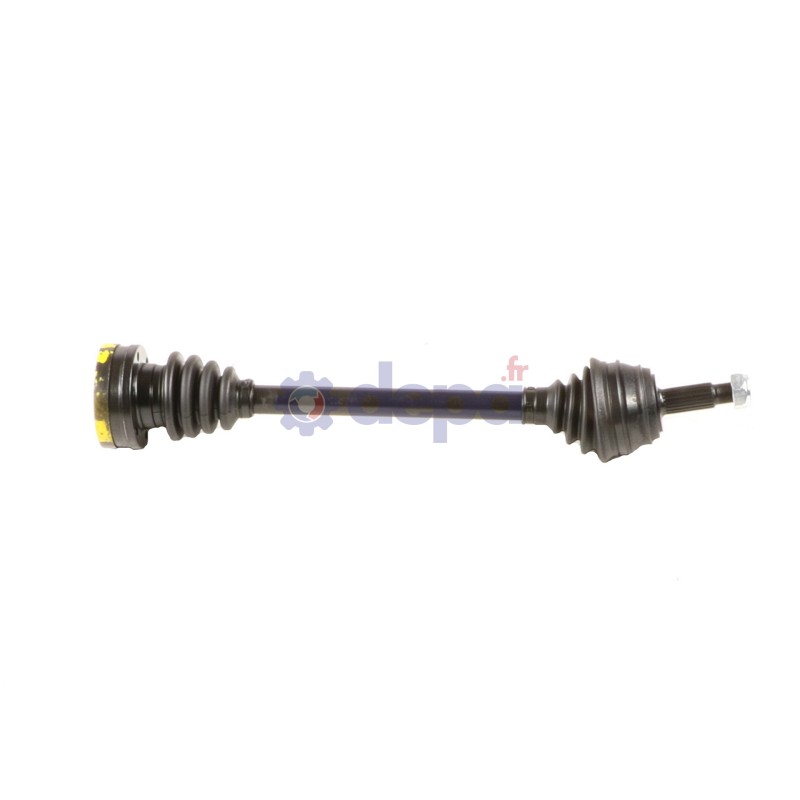

VW GOLF III LEFT-SIDE

Name: VW GOLF III LEFT-SIDE
Brand: Depa
SKU: 3378002
Price: 191.35 EUR
Availability: OutOfStock

Ref : 3378002

Matching vehicles :

VENTO - GOLF III

Family :TR

Round flange diameter 1 : 94 mm

Height : 16.5 mm

Compressed length : 584 mm

ABS on the vehicle : No

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Outer diameter (gearbox side) : 94 mm

Number of splines on inner race : 33

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 24 mm

Housing diameter : 80 mm

Shoulder diameter : 51 mm

Number of external splines : 22

Nombre de cannelures sur la noix : 30

Type and position (snap ring/circlip) : Internal snap ring

JONC COTE ROUE

Outer diameter : 25 mm

Thickness : 2 mm

SOUFFLET COTE BOITE

Diameter (big) : 94 mm

Diameter (little) : 21 mm

Length : 97 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 75 mm

Diamètre (petit) : 20 mm

Longueur : 83 mm

Type de matière : NÉOPRÈNE

Sealing kit	COTE ROUE	T3046
	COTE ROUE	5050
	COTE BOITE	T5001
		T5008
		6017
CV joint	COTE ROUE	JW96
	COTE ROUE	JNCT030
	COTE BOITE	FL96
Fixation	COTE ROUE	EC005
Transmission seal		B4862
Transmission seal		B4060

Equivalence to manufacturer references

AUDI : 1H0407449X
VOLKSWAGEN (SVW) : 1H0407271
VOLKSWAGEN (SVW) : 1H04072710V
VOLKSWAGEN (SVW) : 1H0407271H
VOLKSWAGEN (SVW) : 1H0407271V
VOLKSWAGEN (SVW) : 1H0407271X
VOLKSWAGEN (SVW) : 1H0407449X
