Catalog

Search by vehicle

Category :

Transmission

Return

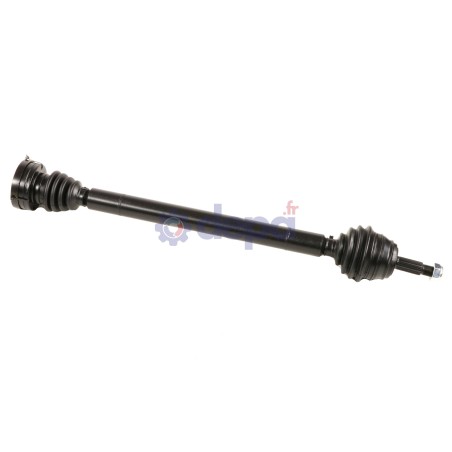

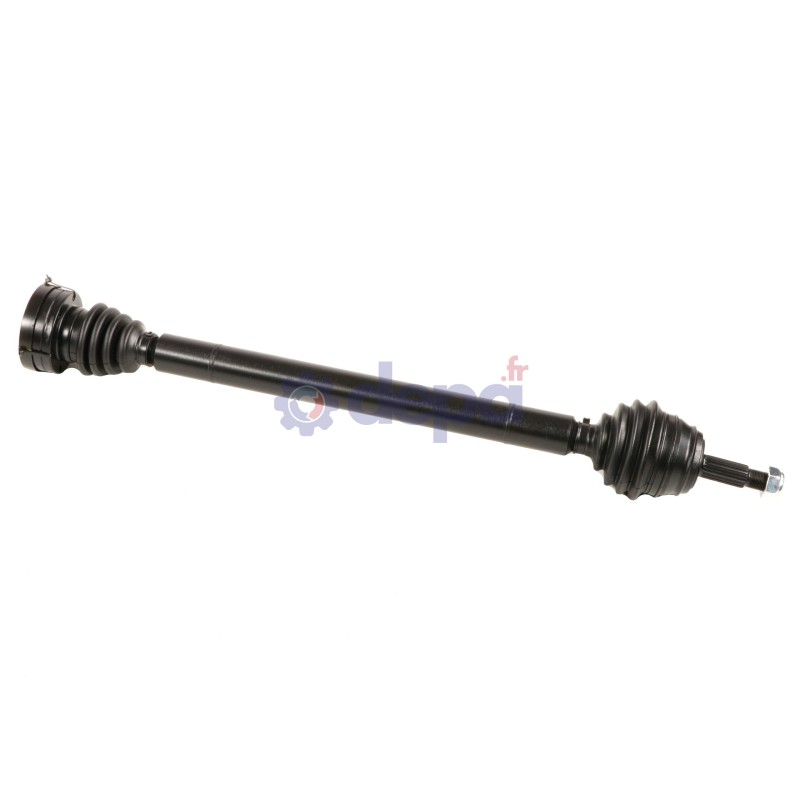

VW GOLF III/ VENTO/PASSAT RIGHT-SIDE

Name: VW GOLF III/ VENTO/PASSAT RIGHT-SIDE
Brand: Depa
SKU: 3378100
Price: 182.04 EUR
Availability: InStock

Ref : 3378100

Matching vehicles :

GOLF III - VENTO - PASSAT - GOLF IV

Family :TR

Round flange diameter 1 : 94 mm

Height : 16.5 mm

Compressed length : 795 mm

ABS on the vehicle : No

Thread pitch type : 20X150

Nut type : Lock

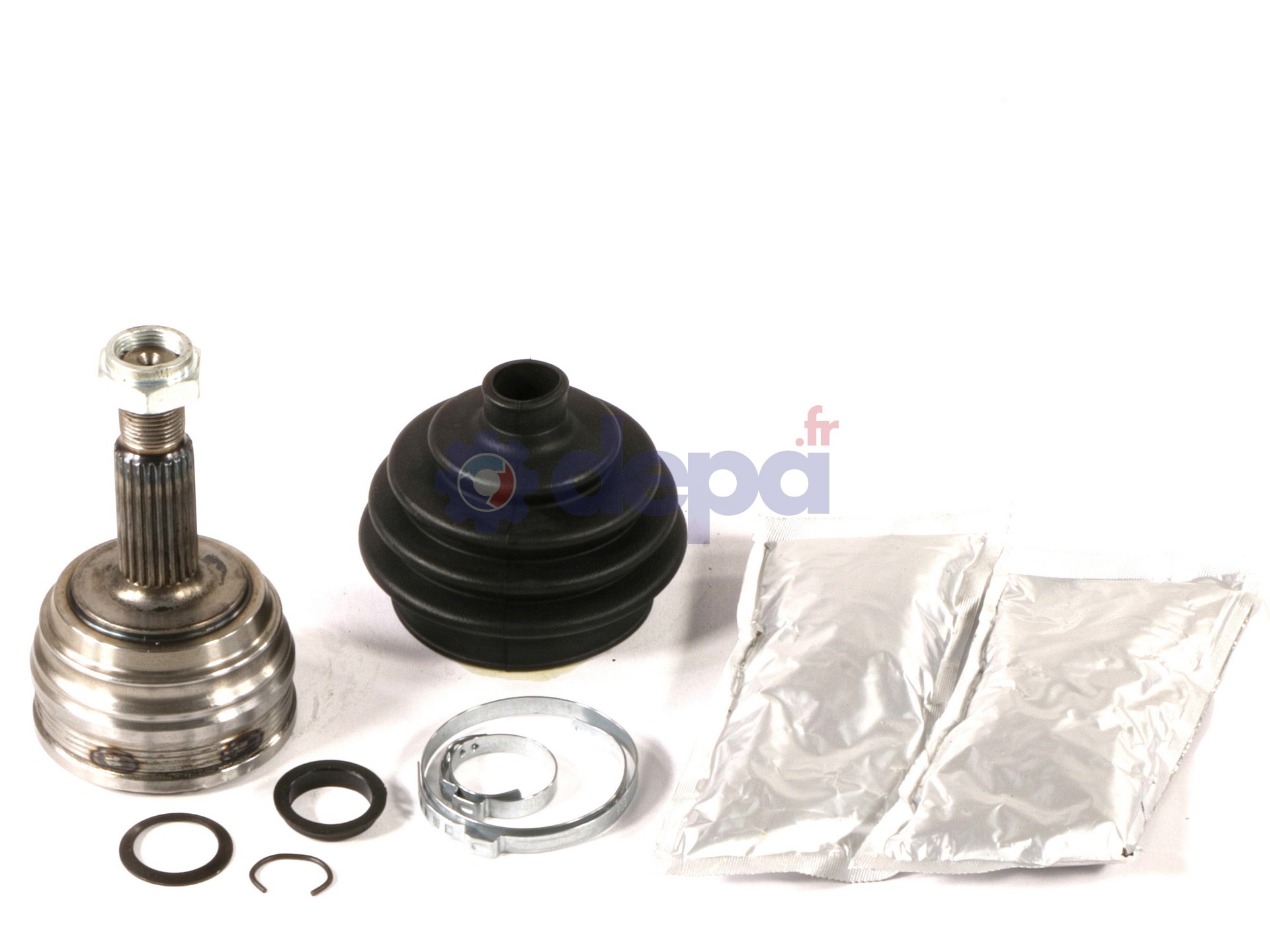

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 24 mm

Housing diameter : 80 mm

Shoulder diameter : 51 mm

Number of external splines : 22

Number of splines on inner race : 30

Type and position (snap ring/circlip) : Internal snap ring

JOINT HOMOCINETIQUE GENERAL

Outer diameter (gearbox side) : 94 mm

Nombre de cannelures sur la noix : 33

JONC COTE ROUE

Outer diameter : 25 mm

Thickness : 2 mm

SOUFFLET COTE ROUE

Diameter (big) : 75 mm

Diameter (little) : 20 mm

Length : 83 mm

Type of material : Neoprene

CV joint	GENERAL	FL96
	COTE ROUE	JNCT030
	COTE ROUE	JW96
Sealing kit	COTE ROUE	T3046
	COTE ROUE	5050
	COTE BOITE	6017
		T5008
		T5001
Fixation	COTE ROUE	EC005
Transmission seal		B4060
Transmission seal		B4862

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 1H0407272
VOLKSWAGEN (SVW) : 1H0407272AB
VOLKSWAGEN (SVW) : 1H0407272AD
VOLKSWAGEN (SVW) : 1H0407272Q
VOLKSWAGEN (SVW) : 1H0407272QV
VOLKSWAGEN (SVW) : 1H0407272QX
VOLKSWAGEN (SVW) : 1H0407272X
VOLKSWAGEN (SVW) : 1H040727QX
VOLKSWAGEN (SVW) : 1H0407450CX
VOLKSWAGEN (SVW) : 357407272E
VOLKSWAGEN (SVW) : 357407272EX
VOLKSWAGEN (SVW) : JZW407450BX
VOLKSWAGEN (SVW) : JZW407450CX
