Catalog

Search by vehicle

Category :

Transmission

Return

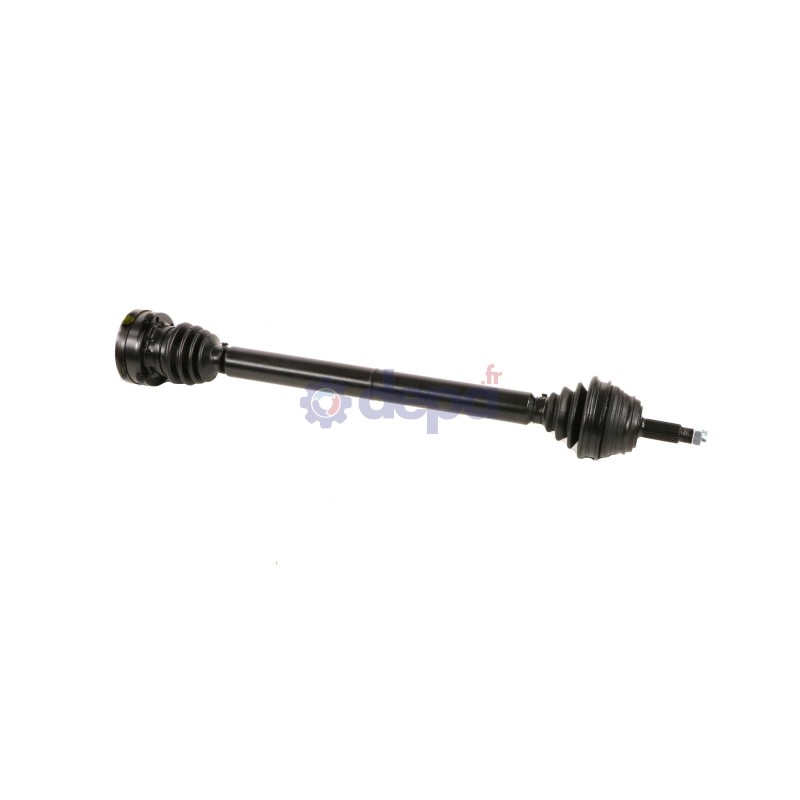

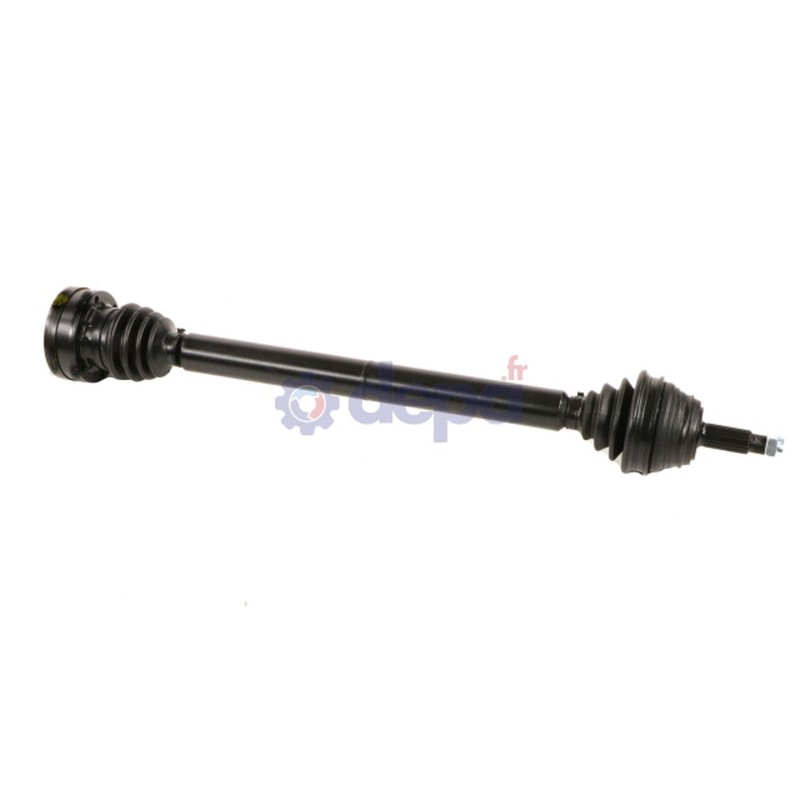

AUDI/SEAT/VOLKSWAGEN

Name: AUDI/SEAT/VOLKSWAGEN
Brand: Depa
SKU: 3378200
Price: 149.66 EUR
Availability: OutOfStock

Ref : 3378200

Matching vehicles :

GOLF III - GOLF IV - VENTO - PASSAT

Family :TR

Round flange diameter 1 : 100 mm

Height : 16.5 mm

Compressed length : 795 mm

ABS on the vehicle : No

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Mounting hole diameter : 10 mm

Outer diameter (boot side) : 100 mm

Flange thickness : 34 mm

Number of splines on inner race : 33

Number of mounting points : 6

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 24 mm

Housing diameter : 90 mm

Shoulder diameter : 53 mm

Number of external splines : 22

Nombre de cannelures sur la noix : 30

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 100 mm

Diameter (little) : 18 mm

Length : 114 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Type de matière : NÉOPRÈNE

Sealing kit	COTE ROUE	T3044
	COTE ROUE	5038
	COTE BOITE	T5009
	COTE BOITE	6018
Fixation	COTE ROUE	EC005
CV joint	COTE ROUE	JW97
CV joint	COTE BOITE	FL97
Transmission seal		B4060
Transmission seal		B4862

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 1H0407272AF
VOLKSWAGEN (SVW) : 1H0407272C
VOLKSWAGEN (SVW) : 1H0407272CV
VOLKSWAGEN (SVW) : 1H0407272M
VOLKSWAGEN (SVW) : 1H0407272MV
VOLKSWAGEN (SVW) : 1H0407272MX
VOLKSWAGEN (SVW) : 1H0407272N
VOLKSWAGEN (SVW) : 1H0407450BX
VOLKSWAGEN (SVW) : 357407272A
VOLKSWAGEN (SVW) : 357407272B
VOLKSWAGEN (SVW) : 357407272F
VOLKSWAGEN (SVW) : 357407272L
VOLKSWAGEN (SVW) : 357407272M
VOLKSWAGEN (SVW) : 357407272MV
VOLKSWAGEN (SVW) : 357407272MX
VOLKSWAGEN (SVW) : 357407450AX
VOLKSWAGEN (SVW) : 357407450V
VOLKSWAGEN (SVW) : 357407450X
VOLKSWAGEN (SVW) : JZW407450AX
VOLKSWAGEN (SVW) : JZW407450DX
VOLKSWAGEN (SVW) : JZW407450EX
