Catalog

Search by vehicle

Category :

Transmission

Return

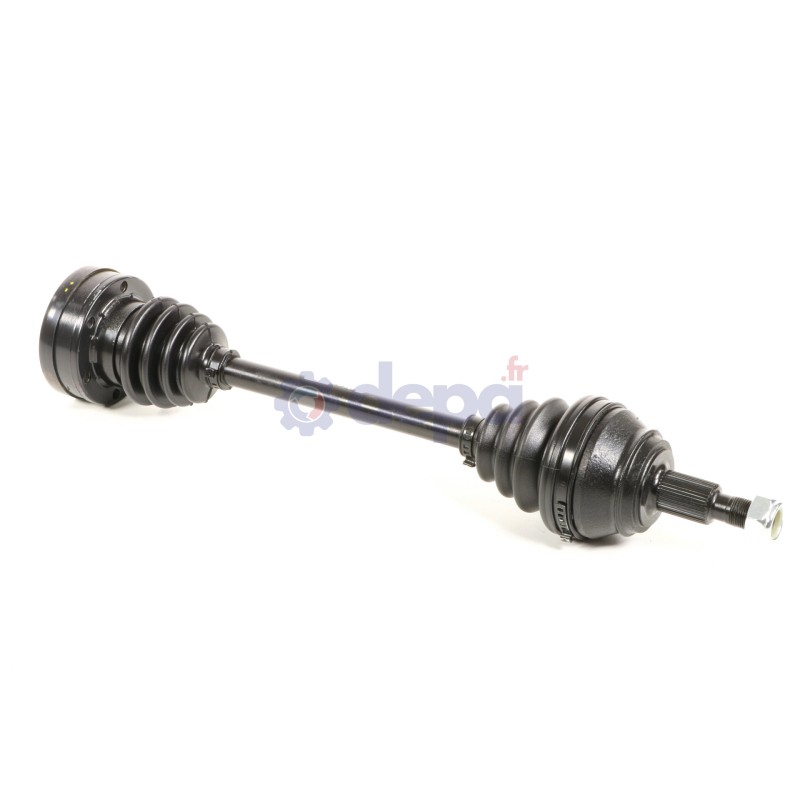

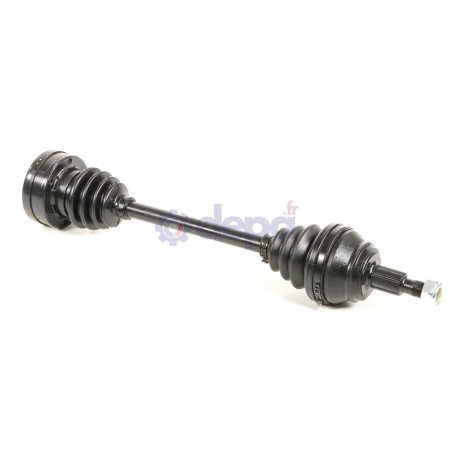

VOLKSWAGEN/AUDI/SEAT TDI

Name: VOLKSWAGEN/AUDI/SEAT TDI
Brand: Depa
SKU: 3378802
Price: 212.07 EUR
Availability: InStock

Ref : 3378802

Matching vehicles :

TOLEDO 2 - OCTAVIA - A3 - LEON

Family :TR

Round flange diameter 1 : 100 mm

Height : 22 mm

Compressed length : 558 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Mounting hole diameter : 10 mm

Outer diameter (boot side) : 100 mm

Flange thickness : 34 mm

Number of splines on inner race : 33

Number of mounting points : 6

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 28 mm

Housing diameter : 90 mm

Shoulder diameter : 53 mm

Number of external splines : 36

Nombre de cannelures sur la noix : 30

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 100 mm

Diameter (little) : 18 mm

Length : 114 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Type de matière : NÉOPRÈNE

Sealing kit	COTE ROUE	T3003
		T3044
		T3047
		5038
	COTE BOITE	T5009
	COTE BOITE	6018
Fixation	COTE ROUE	EC031
CV joint	COTE ROUE	JW83
CV joint	COTE BOITE	FL97
Transmission seal		B4862

Equivalence to manufacturer references

AUDI : 1J0407271AF
AUDI : 1J0407271AP
AUDI : 1J0407451QX
AUDI : 1J0407453DV
AUDI : 1J0407453DX
SEAT : 1J0407271AF
SEAT : 1J0407271AP
SEAT : 1J0407451AV
SEAT : 1J0407451QX
SEAT : 1J0407453DV
SEAT : 1J0407453DX
SKODA : 1J0407271AF
SKODA : 1J0407271AP
SKODA : 1J0407453DV
SKODA : 1J0407453DX
VOLKSWAGEN (SVW) : 1J0407271AF
VOLKSWAGEN (SVW) : 1J0407271AP
VOLKSWAGEN (SVW) : 1J0407271EN
VOLKSWAGEN (SVW) : 1J0407271FN
VOLKSWAGEN (SVW) : 1J0407271H
VOLKSWAGEN (SVW) : 1J0407271JD
VOLKSWAGEN (SVW) : 1J0407271QE
VOLKSWAGEN (SVW) : 1J0407271QF
VOLKSWAGEN (SVW) : 1J0407451AX
VOLKSWAGEN (SVW) : 1J0407451QX
VOLKSWAGEN (SVW) : 1J0407453DV
VOLKSWAGEN (SVW) : 1J0407453DX
