Catalog

Search by vehicle

Category :

Transmission

Return

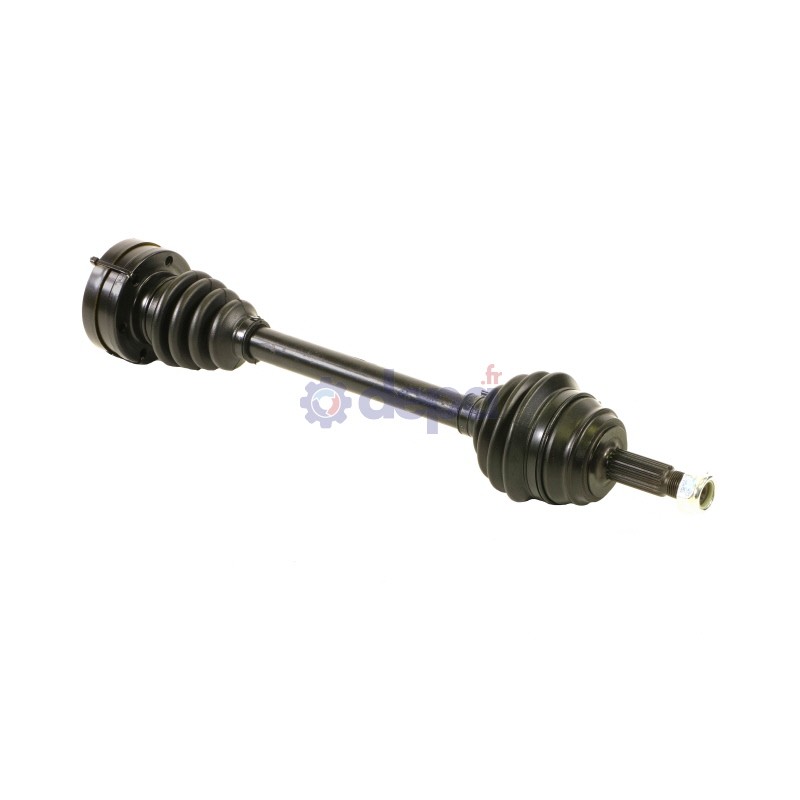

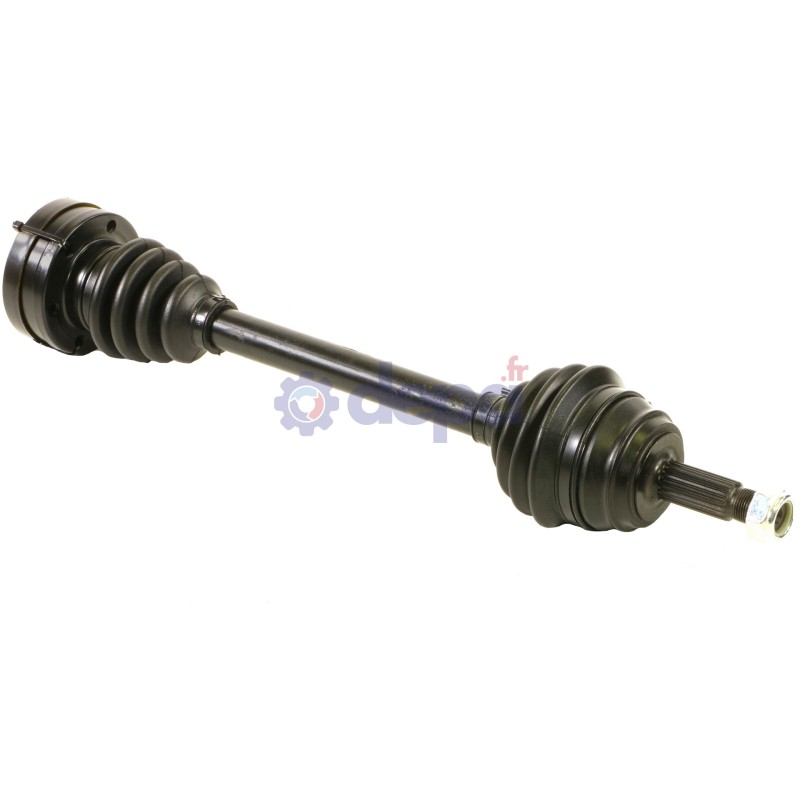

VW GOLF/CABRIOLET/JETTA LEFT-SIDE

Name: VW GOLF/CABRIOLET/JETTA LEFT-SIDE
Brand: Depa
SKU: 3379502
Price: 186.8 EUR
Availability: OutOfStock

Ref : 3379502

Matching vehicles :

CADDY 2 - GOLF II - IBIZA II - CORDOBA 1

Family :TR

Round flange diameter 1 : 94 mm

Height : 16.5 mm

Compressed length : 559 mm

ABS on the vehicle : No

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 24 mm

Housing diameter : 80 mm

Shoulder diameter : 51 mm

Number of external splines : 22

Number of splines on inner race : 30

Type and position (snap ring/circlip) : Internal snap ring

JOINT HOMOCINETIQUE GENERAL

Mounting hole diameter : 8 mm

Outer diameter (gearbox side) : 94 mm

Outer diameter (boot side) : 90 mm

Flange thickness : 32 mm

Nombre de cannelures sur la noix : 33

Number of mounting points : 6

JONC COTE ROUE

Outer diameter : 25 mm

Thickness : 2 mm

SOUFFLET COTE ROUE

Diameter (big) : 75 mm

Diameter (little) : 20 mm

Length : 83 mm

Type of material : Neoprene

CV joint	GENERAL	FL94
	GENERAL	FL96
	COTE ROUE	JNCT030
	COTE ROUE	JW96
Sealing kit	COTE ROUE	T3046
	COTE ROUE	5050
	COTE BOITE	T5008
		6017
		T5001
Fixation	COTE ROUE	EC005
Transmission seal		B4862

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 191407271
VOLKSWAGEN (SVW) : 191407271NV
VOLKSWAGEN (SVW) : 191407271NX
VOLKSWAGEN (SVW) : 6K0407271D
