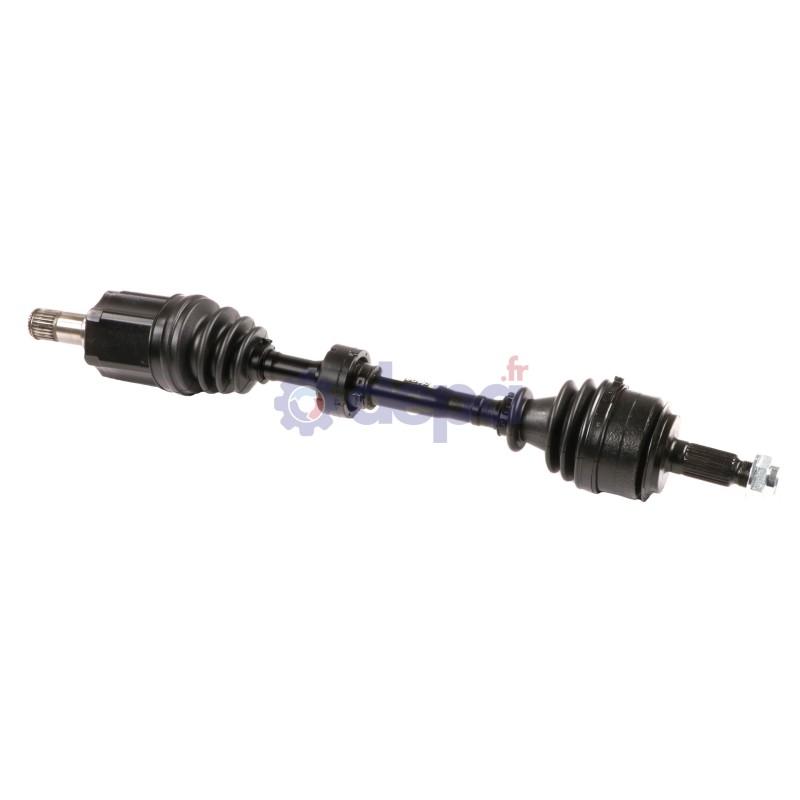

HONDA CIVIC IX LEFT-SIDE

Name: HONDA CIVIC IX LEFT-SIDE
Brand: Depa
SKU: 3382402
Price: 330.88 EUR
Availability: OutOfStock

Ref : 3382402

Matching vehicles :

CIVIC IX

Family :TR

Height : 20 mm

Compressed length : 633 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 28 mm

Housing diameter : 68 mm

Length of the gearbox output without seal seat : 57 mm

Number of external splines : 27

Number of splines on inner race : 23

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 84.6 mm

Shoulder diameter : 60 mm

Nombre de cannelures extérieures : 26

Nombre de cannelures sur la noix : 24

Observations : Threading length 17mm Ø22mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 69 mm

Diameter (little) : 23 mm

Beads thickness : 11 mm

Length : 85 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 80 mm

Diamètre (petit) : 20 mm

Longueur : 85 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

Fixation	COTE ROUE	EC020
Sealing kit	COTE ROUE	5017
Sealing kit	COTE BOITE	6084
CV joint	COTE BOITE	CBMH84GT

Equivalence to manufacturer references

HONDA : 44306TV1G12
