HONDA SHUTTLE WITH ABS LEFT-SIDE

Name: HONDA SHUTTLE WITH ABS LEFT-SIDE
Brand: Depa
SKU: 3389702
Price: 239.66 EUR
Availability: OutOfStock

Ref : 3389702

Matching vehicles :

SHUTTLE

Family :TR

Height : 25 mm

Compressed length : 567 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Washer

COURONNE ABS COTE ROUE

Outer diameter : 98 mm

Inner diameter : 88 mm

Width : 9 mm

Number of teeth : 50

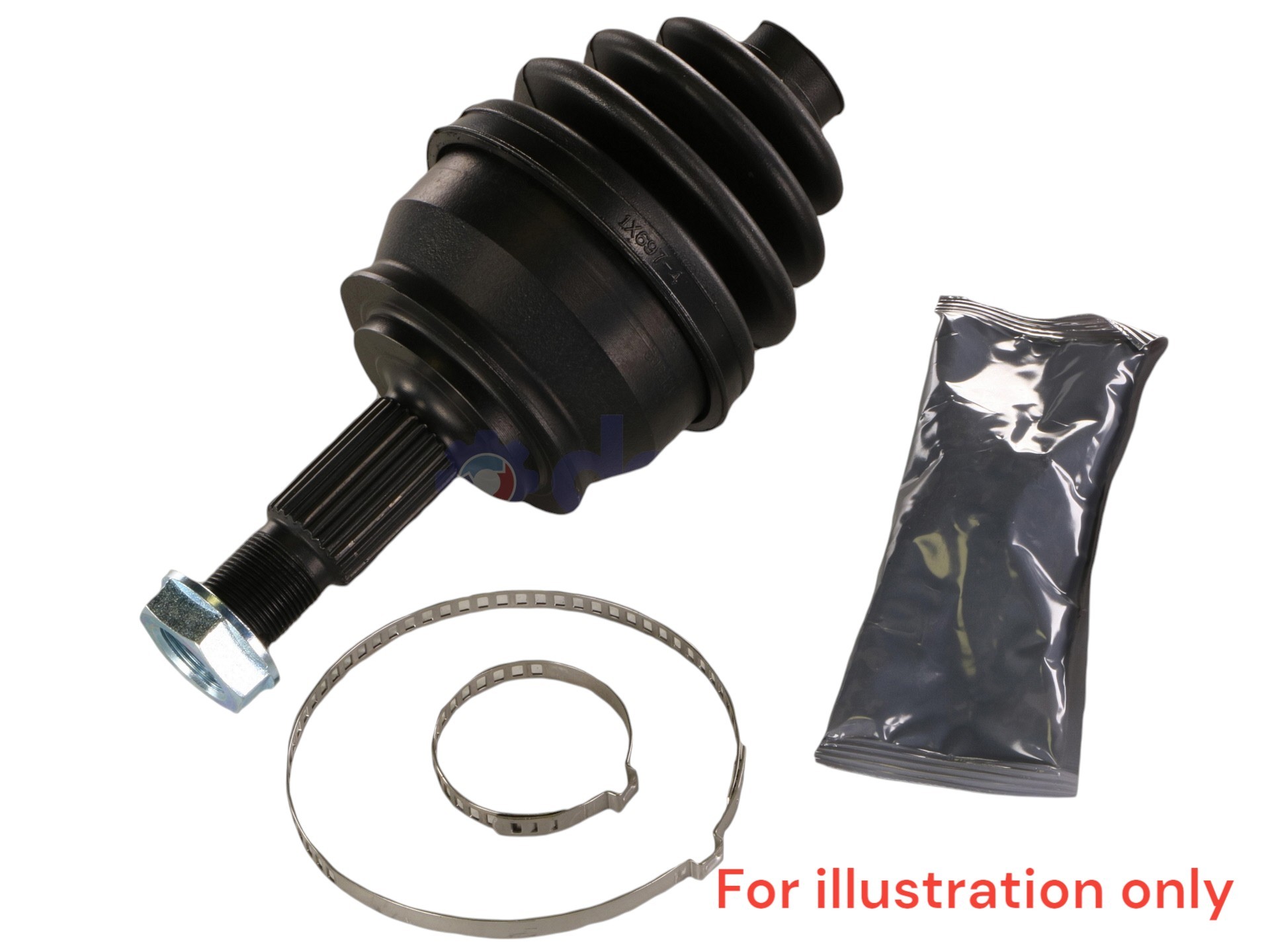

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 27.5 mm

Housing diameter : 84.5 mm

Number of internal splines : 27

Presence of a pin : No

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 29 mm

Number of external splines : 28

Number of splines on inner race : 32

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 21 mm

Length : 84 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 38 mm

Height : 28 mm

Number of splines : 32

Fixation	COTE ROUE	EC021
Fixation	COTE ROUE	EC020
CV joint	COTE ROUE	JH3050
CV joint	COTE BOITE	CBFRO08G
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6056
ABS ring		COU098
