Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

MAZDA : FTH42550X

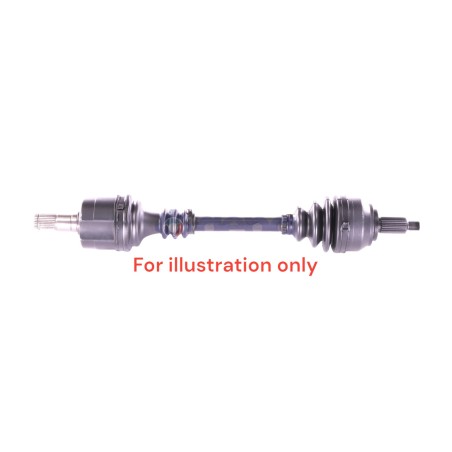

MAZDA CX-5 AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE

Name: MAZDA CX-5 AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE
Brand: Depa
SKU: 3398960
Price: 556.7 EUR
Availability: OutOfStock

Ref : 3398960

Matching vehicles :

CX-5 II - 6 III

Family :TR

Collapsed length : 1030 mm

ABS on the vehicle : Yes

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 37 mm

Outer spline diameter : 32 mm

Housing diameter : 82 mm

Length of the shaft (including bearing unit) : 440 mm

Length of the gearbox output without seal seat : 62 mm

Number of external splines : 31

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 31.8 mm

Diamètre du bol : 86.5 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 31

Number of internal splines : 35

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 76.5 mm

Diameter (little) : 25.5 mm

Beads thickness : 9 mm

Length : 89 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 46 mm

Height : 28 mm

Number of splines : 35

Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6194
CV joint	COTE ROUE	JM7860
CV joint	COTE BOITE	PALCBMA8960DT
Tripod joint	COTE BOITE	TRIN94
