Catalog

Search by vehicle

Category :

Transmission

Return

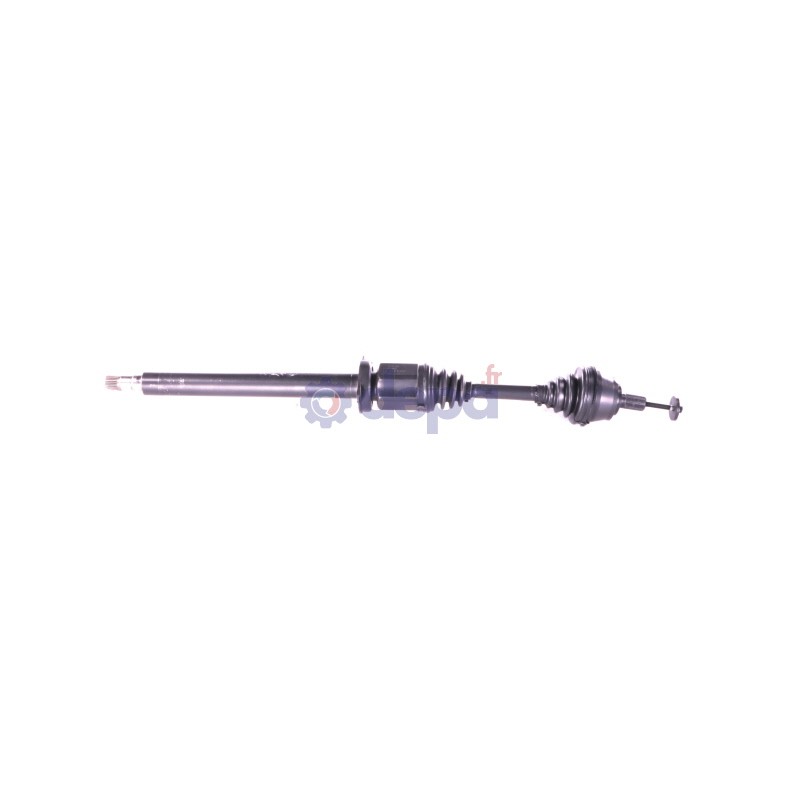

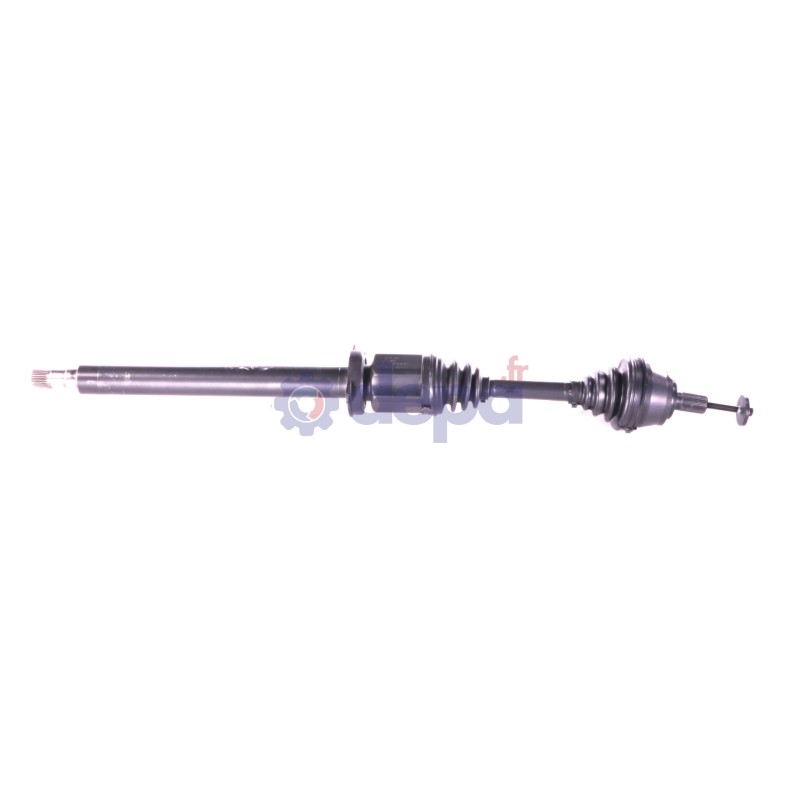

VOLVO V40 II AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: VOLVO V40 II AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3400860
Price: 247.67 EUR
Availability: InStock

Ref : 3400860

Matching vehicles :

V40 II - V40 II CROSS COUNTRY

Family :TR

Compressed length : 935 mm

Length of the shaft (including bearing unit) : 470 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 26.5 mm

Housing diameter : 71 mm

Length of the shaft (including bearing unit) : 470 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27.3 mm

Diamètre du bol : 91.2 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 36

Number of splines on inner race : 26

Observations : 6 BILLES Ø 19.86/ Ø EXT CAGE 69.7/ HT PORTEE 13 TARAUD M10 / LG CAN A EP 48

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 69 mm

Diameter (little) : 23 mm

Beads thickness : 11 mm

Length : 85 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 41.5 mm

Height : 21 mm

Number of splines : 24

CV joint	COTE ROUE	JV08
CV joint	COTE BOITE	PALCBMV0860DT
Fixation	COTE ROUE	VI001
Sealing kit	COTE ROUE	5020
Sealing kit	COTE BOITE	6084
Tripod joint	COTE BOITE	TRIFO86

Equivalence to manufacturer references

VOLVO : 31367199
VOLVO : 36010171
