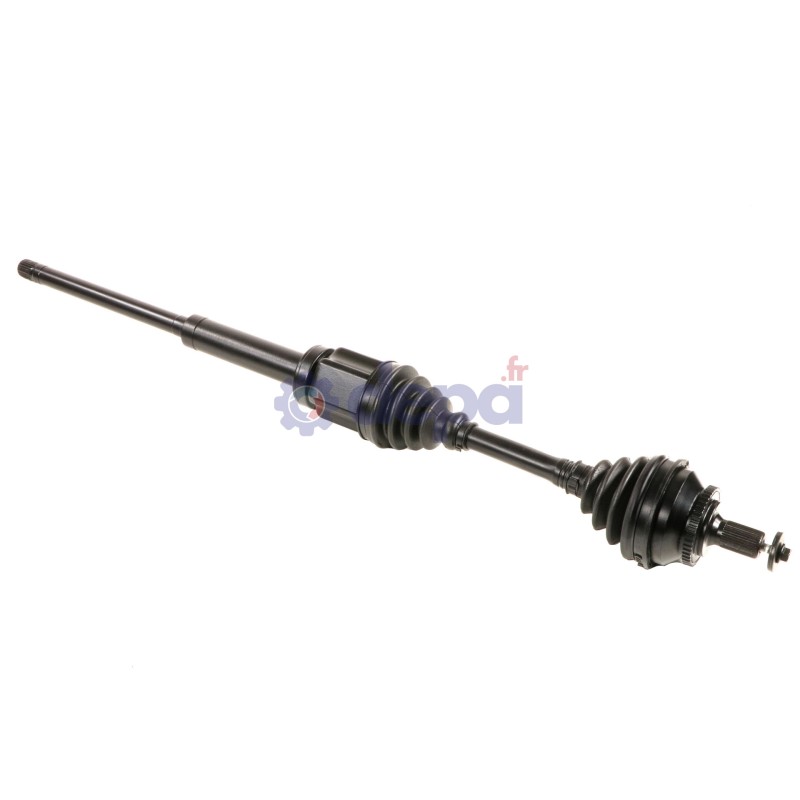

VOLVO XC70 AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE

Name: VOLVO XC70 AUTOMATIC TRANSMISSION FRONT RIGHT-SIDE
Brand: Depa
SKU: 3406560
Price: 326.55 EUR
Availability: OutOfStock

Ref : 3406560

Matching vehicles :

XC70 I - V70 II

Family :TR

Compressed length : 1005 mm

Length of the shaft (including bearing unit) : 512 mm

ABS on the vehicle : Yes

Nut type : Washer

COURONNE ABS COTE ROUE

Outer diameter : 81 mm

Inner diameter : 72 mm

Width : 8 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 34 mm

Outer spline diameter : 26.5 mm

Housing diameter : 77 mm

Length of the shaft (including bearing unit) : 515 mm

Length of the gearbox output without seal seat : 290 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27.5 mm

Diamètre du bol : 98 mm

Shoulder diameter : 56.5 mm

Nombre de cannelures extérieures : 36

Number of splines on inner race : 27

Observations : Screw Ø8mm

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Diamètre extérieur : 75 mm

Diamètre intérieur : 49 mm

Width : 19 mm

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 22 mm

Beads thickness : 9.5 mm

Length : 116 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 26

Sealing kit	COTE ROUE	T3030
		T3049
		5026
	COTE BOITE	6059
Fixation	COTE ROUE	VI001
CV joint	COTE ROUE	JV62
CV joint	COTE BOITE	PALCBMV5680
Bearing	COTE BOITE	RLT009
Tripod joint	COTE BOITE	TRIAL70
ABS ring		COU032

Equivalence to manufacturer references

VOLVO : 30783102
VOLVO : 36000536
VOLVO : 8252053
VOLVO : 8603875
