Catalog

Search by vehicle

Category :

Transmission

Return

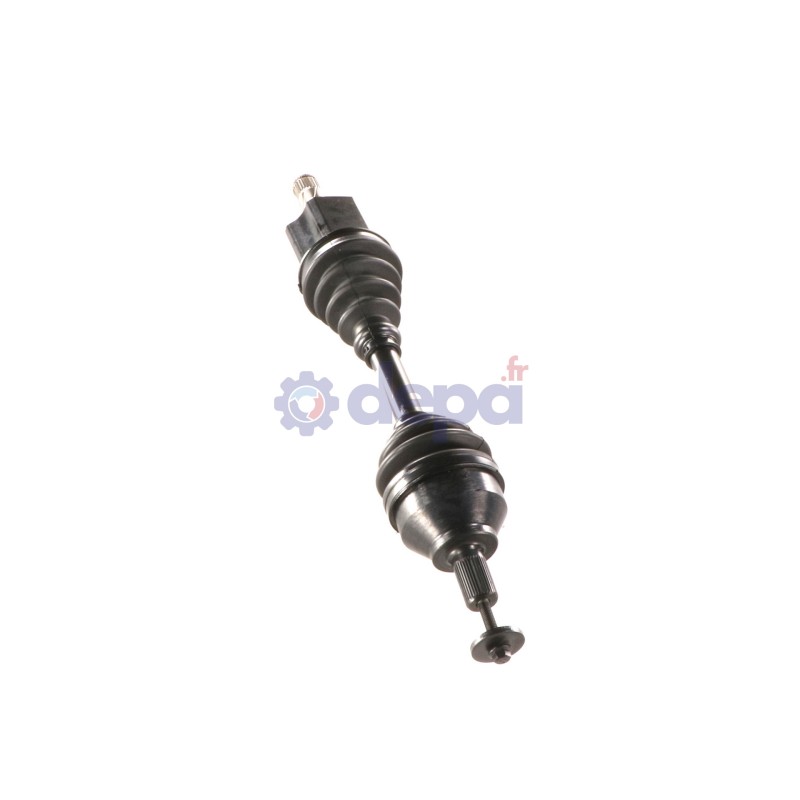

VOLVO S40 II/V50 FRONT LEFT-SIDE

Name: VOLVO S40 II/V50 FRONT LEFT-SIDE
Brand: Depa
SKU: 3406870
Price: 271.87 EUR
Availability: OutOfStock

Ref : 3406870

Matching vehicles :

V50 - S40 II

Family :TR

Compressed length : 540 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26.5 mm

Housing diameter : 73 mm

Length of the gearbox output without seal seat : 67 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 36

Number of splines on inner race : 26

Observations : Internal threading 8x125

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21 mm

Beads thickness : 9.5 mm

Length : 100 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 82 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 26

Fixation	COTE ROUE	VI001
CV joint	COTE ROUE	JFO27
CV joint	COTE BOITE	CBMFO33GT
Sealing kit	COTE ROUE	5020
	COTE ROUE	5011
	COTE BOITE	6085
		6043
		6020
		6059
Tripod joint	COTE BOITE	TRIAL70

Equivalence to manufacturer references

VOLVO : 36000438
VOLVO : 36000547
