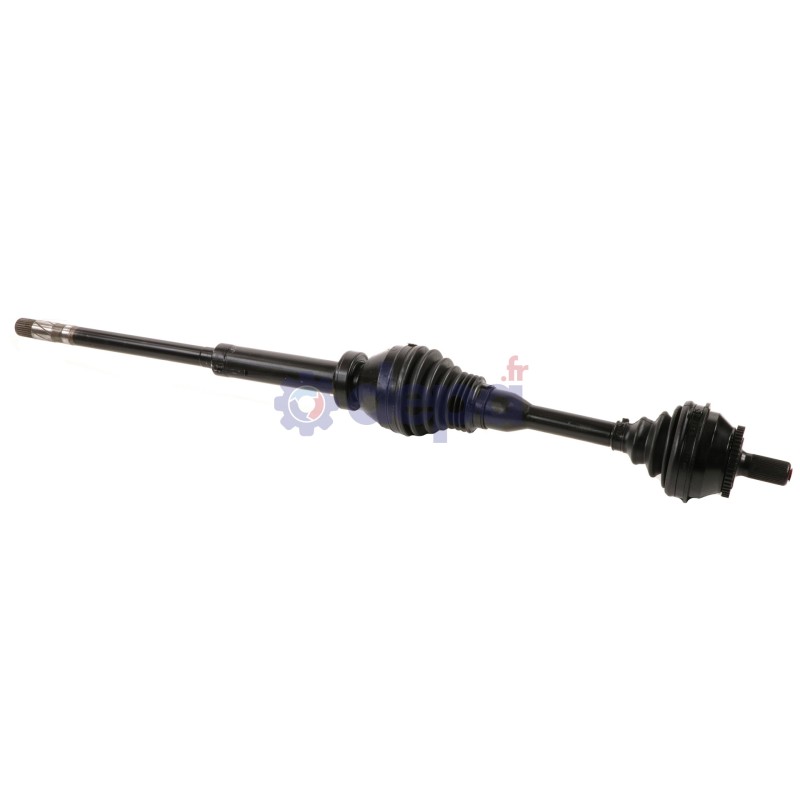

VOLVO XC90 FRONT RIGHT-SIDE

Name: VOLVO XC90 FRONT RIGHT-SIDE
Brand: Depa
SKU: 3407400
Price: 268.26 EUR
Availability: OutOfStock

Ref : 3407400

Matching vehicles :

XC90 I

Family :TR

Compressed length : 1045 mm

Length of the shaft (including bearing unit) : 528 mm

ABS on the vehicle : Yes

Nut type : Washer

COURONNE ABS COTE ROUE

Outer diameter : 81 mm

Inner diameter : 72 mm

Width : 8 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 28 mm

Outer spline diameter : 26.5 mm

Housing diameter : 106 mm

Length of the shaft (including bearing unit) : 528 mm

Length of the gearbox output without seal seat : 80 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 26.5 mm

Diamètre du bol : 98 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 36

Number of splines on inner race : 27

Observations : Please pay attention to the splines length

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Diamètre extérieur : 75 mm

Diamètre intérieur : 45 mm

Width : 19 mm

SOUFFLET COTE BOITE

Diameter (big) : 104 mm

Diameter (little) : 47 mm

Length : 125 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

Sealing kit	COTE ROUE	T3145
	COTE ROUE	5036
	COTE BOITE	T5043
Fixation	COTE ROUE	VI001
CV joint	COTE ROUE	JV70
CV joint	COTE BOITE	PALCBMV74D
Bearing	COTE BOITE	RLT033
ABS ring		COU032

Equivalence to manufacturer references

VOLVO : 8603887
