Catalog

Search by vehicle

Category :

Transmission

Return

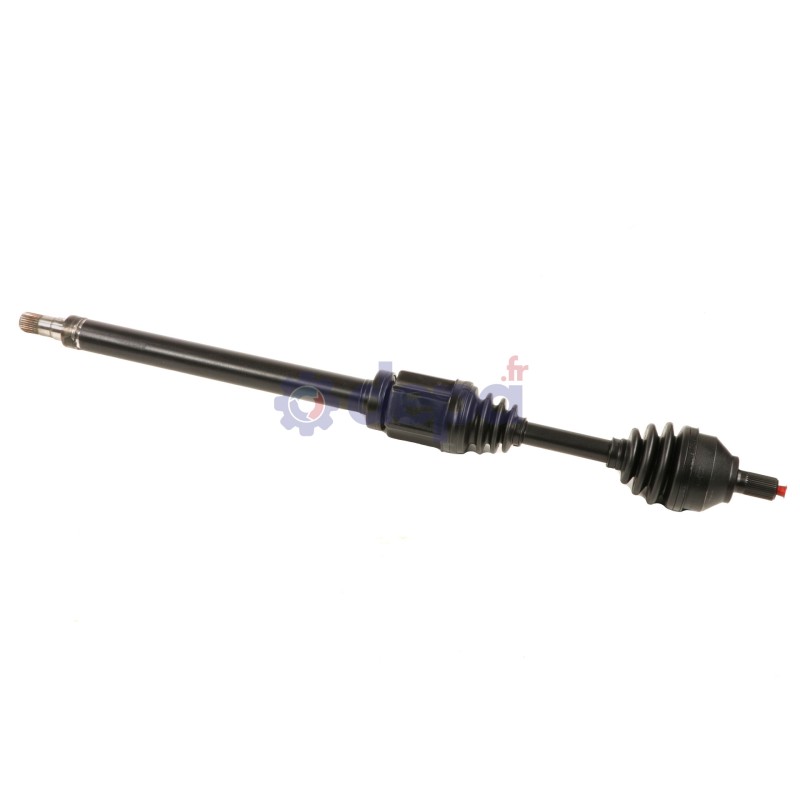

VOLVO C30 AUTOMATIC TRANSMISSION/C70/S40 II RIGHT-SIDE

Name: VOLVO C30 AUTOMATIC TRANSMISSION/C70/S40 II RIGHT-SIDE
Brand: Depa
SKU: 3408500
Price: 254.88 EUR
Availability: InStock

Ref : 3408500

Matching vehicles :

S40 II - C70 II - V50 - C30

Family :TR

Compressed length : 945 mm

Length of the shaft (including bearing unit) : 515 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 34 mm

Outer spline diameter : 26.5 mm

Housing diameter : 77 mm

Length of the shaft (including bearing unit) : 515 mm

Length of the gearbox output without seal seat : 50 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 56 mm

Nombre de cannelures extérieures : 36

Number of splines on inner race : 26

Observations : Internal threading 8x125

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Outer diameter : 75 mm

Inner diameter : 49 mm

Width : 19 mm

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 21.5 mm

Beads thickness : 14 mm

Length : 70 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 73 mm

Diamètre (petit) : 19 mm

Longueur : 82 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 26

CV joint	COTE ROUE	JFO27
CV joint	COTE BOITE	PALCBMV5660DT
Sealing kit	COTE ROUE	5011
	COTE ROUE	5020
	COTE BOITE	6085
Fixation	COTE ROUE	VI001
Bearing	COTE BOITE	RLT009
Tripod joint	COTE BOITE	TRIAL70

Equivalence to manufacturer references

VOLVO : 30735973
VOLVO : 30759763
VOLVO : 30783187
VOLVO : 30787785
VOLVO : 36000184
VOLVO : 36000450
VOLVO : 36000559
VOLVO : 36051060
VOLVO : 36051753
VOLVO : 8603825
