Catalog

Search by vehicle

Category :

Transmission

Return

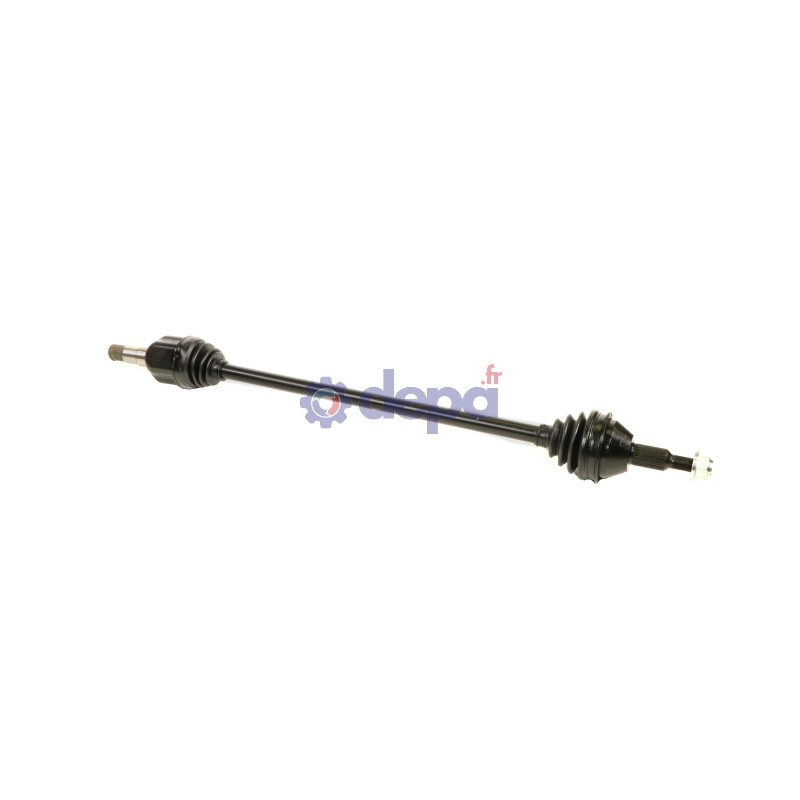

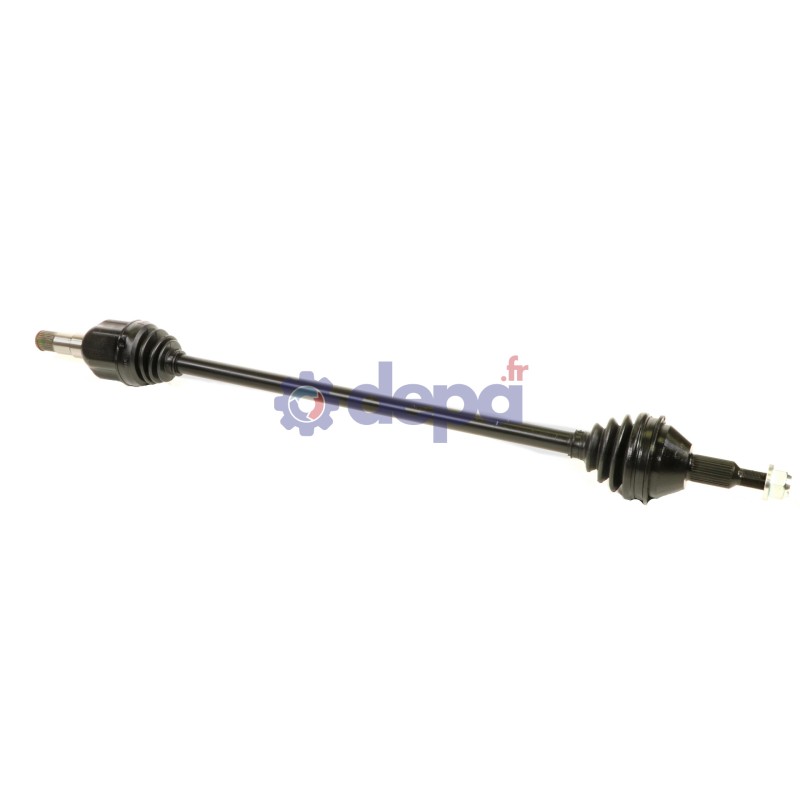

GRAND VOYAGER V AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: GRAND VOYAGER V AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3410100
Price: 246.99 EUR
Availability: InStock

Ref : 3410100

Matching vehicles :

GRAND VOYAGER V - VOYAGER

Family :TR

Height : 26 mm

Compressed length : 1060 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 31.5 mm

Housing diameter : 81 mm

Length of the gearbox output without seal seat : 73 mm

Number of external splines : 29

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 32.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 55 mm

Nombre de cannelures extérieures : 32

Number of splines on inner race : 34

Observations : PJS AU BOUT 105 / LC46

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 28.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 47.3 mm

Height : 22 mm

Number of splines : 34

CV joint	COTE ROUE	JCH01
CV joint	COTE BOITE	CBMCH01DT
Fixation	COTE ROUE	EC019
Sealing kit	COTE ROUE	5026
Sealing kit	COTE BOITE	6182

Equivalence to manufacturer references

CHRYSLER : K04880212AH
LANCIA : K04880212AC
LANCIA : K04880212AD
LANCIA : K04880212AE
LANCIA : K04880212AF
LANCIA : K04880212AG
LANCIA : K04880212AH
LANCIA : K68193908AA
LANCIA : K68193908AB
LANCIA : K68193908AC
