Catalog

Search by vehicle

Category :

Transmission

Return

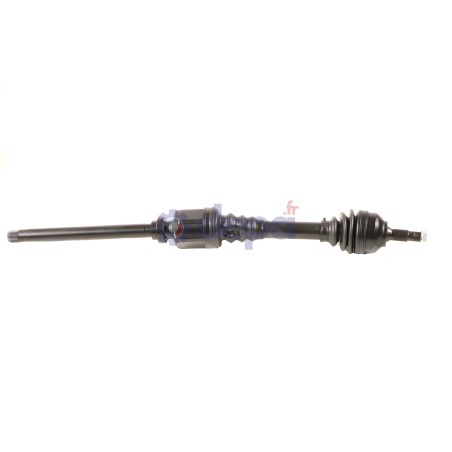

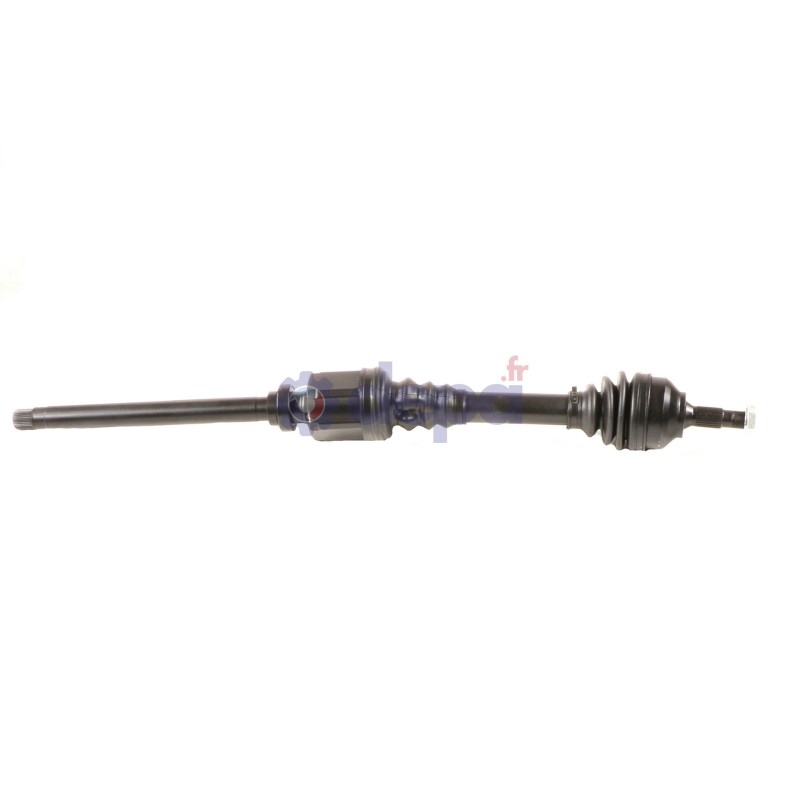

CITROEN C5 2.0 HDI AUTOMATIC TRANSMISSION RIGHT-SIDE

Name: CITROEN C5 2.0 HDI AUTOMATIC TRANSMISSION RIGHT-SIDE
Brand: Depa
SKU: 3060920
Price: 242.5 EUR
Availability: InStock

Ref : 3060920

Matching vehicles :

Family :TR

Height : 13.5 mm

Compressed length : 960 mm

Length of the shaft (including bearing unit) : 380 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 28 mm

Housing diameter : 77 mm

Length of the shaft (including bearing unit) : 380 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 90 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 74 mm

Diameter (little) : 38 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 45 mm

Height : 22 mm

Number of splines : 26

Sealing kit	COTE ROUE	T3070
	COTE ROUE	5020
	COTE BOITE	6114
	COTE BOITE	6114
CV joint	COTE ROUE	JC0920
CV joint	COTE BOITE	PALCBMP2720DT
Fixation	COTE ROUE	EC008
Tripod joint	COTE BOITE	TRIP27
Bearing		RLT005

Equivalence to manufacturer references

CITROËN : 3273PA
CITROËN : 3273PC
CITROËN : 3273RQ
CITROËN : 3273RR
PEUGEOT : 3273PA
