Catalog

Search by vehicle

Category :

Transmission

Return

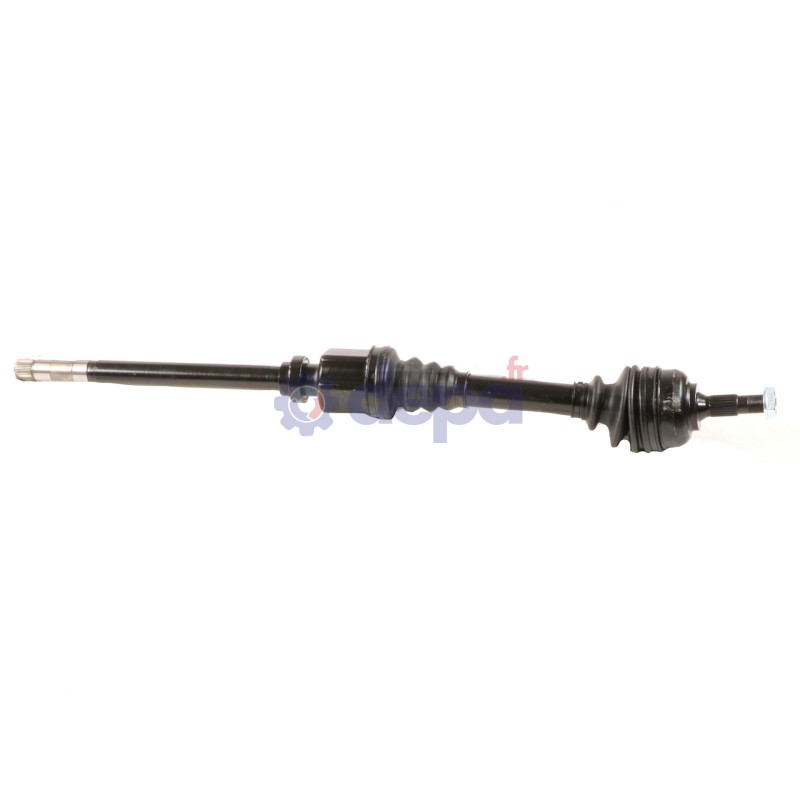

CITROEN C5 HDI RIGHT-SIDE

Name: CITROEN C5 HDI RIGHT-SIDE
Brand: Depa
SKU: 3060940
Price: 233.43 EUR
Availability: InStock

Ref : 3060940

Matching vehicles :

Family :TR

Height : 13.5 mm

Length of the shaft (including bearing unit) : 400 mm

Non-compressed length : 980 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 32 mm

Outer spline diameter : 28 mm

Housing diameter : 77 mm

Length of the shaft (including bearing unit) : 400 mm

Length of the gearbox output without seal seat : 83 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 90 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 26

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 16 mm

SOUFFLET COTE BOITE

Diameter (big) : 74 mm

Diameter (little) : 38 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 92 mm

Diamètre (petit) : 25 mm

Longueur : 128 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 45 mm

Height : 22 mm

Number of splines : 26

Sealing kit	COTE ROUE	T3070
		5102
		5024
		5008
	COTE BOITE	6114
Fixation	COTE ROUE	EC008
CV joint	COTE ROUE	JC0920
	COTE ROUE	JC09
	COTE BOITE	PALCBMP27DT
	COTE BOITE	PALCBMC0940DT
Tripod joint	COTE BOITE	TRIAL70
Tripod joint	COTE BOITE	TRIP27
Bearing	COTE BOITE	RLT005

Equivalence to manufacturer references

CITROËN : 3273GZ
CITROËN : 3273NT
CITROËN : 3273RN
CITROËN : 3273RP
PEUGEOT : 3273GZ
PEUGEOT : 3273NT
PEUGEOT : 3273RP
