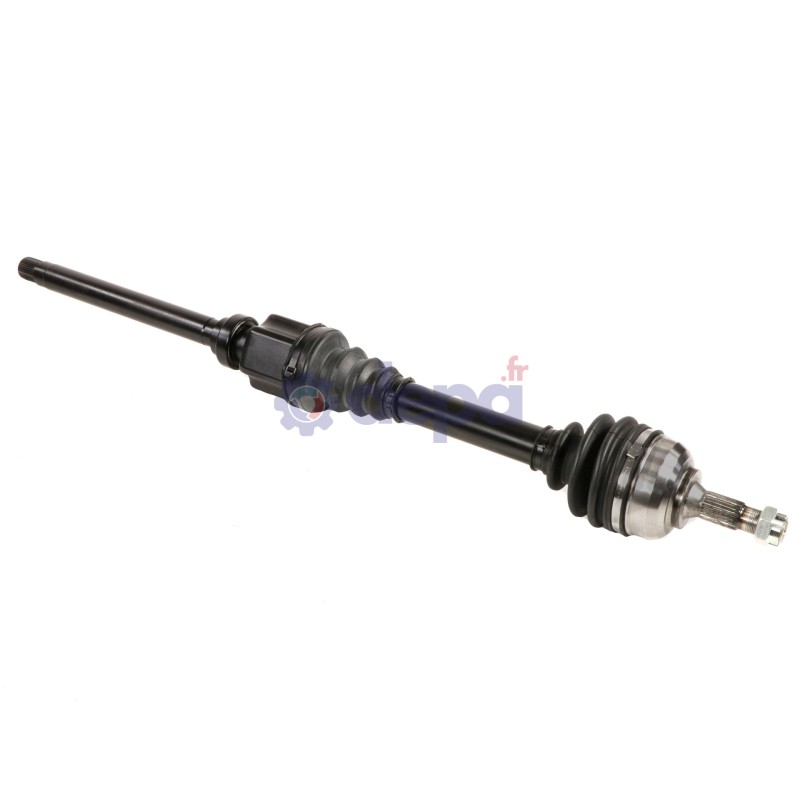

CITROEN C5 RIGHT-SIDE

Name: CITROEN C5 RIGHT-SIDE
Brand: Depa
SKU: 3060960
Price: 242.5 EUR
Availability: InStock

Ref : 3060960

Matching vehicles :

Family :TR

Height : 13.5 mm

Compressed length : 945 mm

Length of the shaft (including bearing unit) : 337 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 28 mm

Housing diameter : 73 mm

Length of the shaft (including bearing unit) : 337 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 100 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 39

Observations :

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 16 mm

SOUFFLET COTE BOITE

Diameter (big) : 74 mm

Diameter (little) : 38 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 96 mm

Diamètre (petit) : 36 mm

Longueur : 96 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 43 mm

Height : 22 mm

Number of splines : 26

Sealing kit	COTE ROUE	T3071
		T3070
		5102

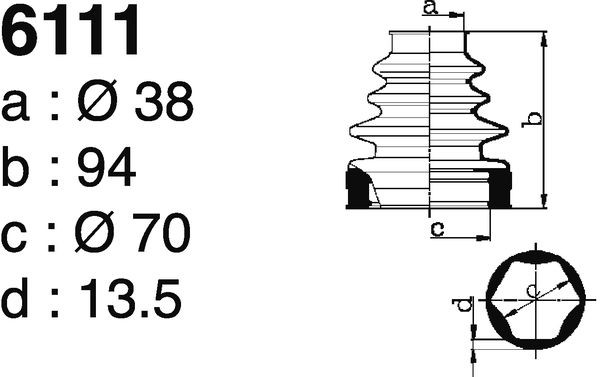

	COTE BOITE	6111
		6114
		6114
CV joint	COTE ROUE	JC09
	COTE ROUE	JC54
	COTE BOITE	PALCBMC0960
Fixation	COTE ROUE	EC008
Bearing	COTE BOITE	RLT005
Bearing		RLT005
Tripod joint	COTE BOITE	TRIAL70

Equivalence to manufacturer references

CITROËN : 32738T
CITROËN : 32738V
CITROËN : 3273EK
PEUGEOT : 32738T
PEUGEOT : 32738V
PEUGEOT : 9642877280
