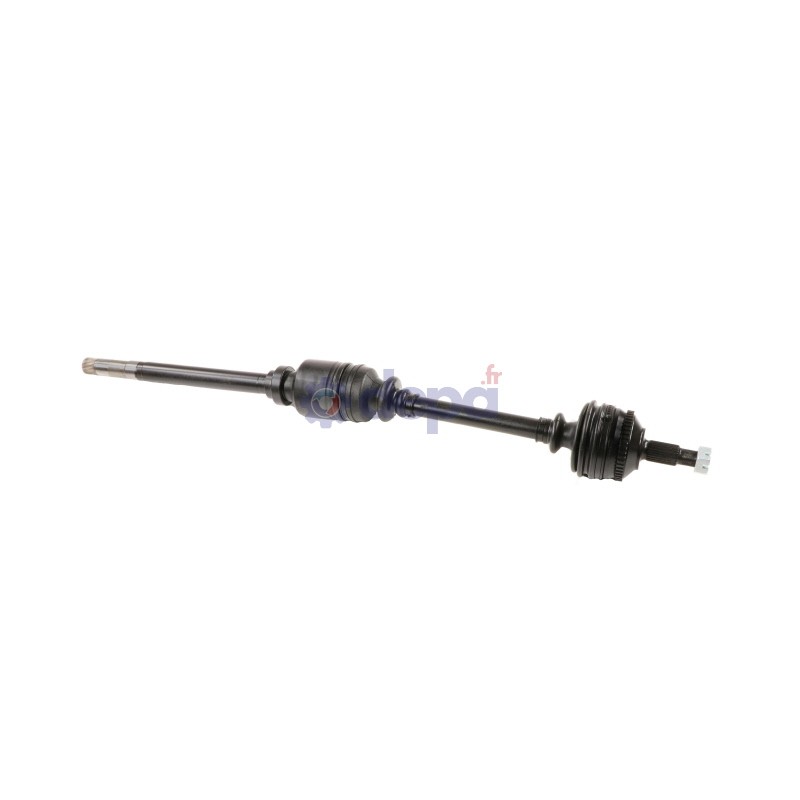

CITROEN C8 807 ULYSSE II RIGHT-SIDE

Name: CITROEN C8 807 ULYSSE II RIGHT-SIDE
Brand: Depa
SKU: 3061000
Price: 207.55 EUR
Availability: InStock

Ref : 3061000

Matching vehicles :

ULYSSE 2 - 807 - PHEDRA - C8

Family :TR

Compressed length : 995 mm

Length of the shaft (including bearing unit) : 370 mm

ABS on the vehicle : Yes

COTE ROUE

Number of external splines : 27

Type and position (snap ring/circlip) : Centered snap ring

Shoulder diameter : 58 mm

Housing diameter : 93 mm

Number of splines on inner race : 28

Diamètre des cannelures extérieures : 29.5 mm

COTE BOITE

Seal seat diameter : 32 mm

Length of the gearbox output without seal seat : 86 mm

Length of the shaft (including bearing unit) : 370 mm

Nombre de cannelures extérieures : 37

Outer spline diameter : 28 mm

Diamètre du bol : 89 mm

Sealing kit	COTE ROUE	T5023
		5020
		5059
	COTE BOITE	6035
		6064
		6065
		6115
CV joint	COTE ROUE	JC10
	COTE ROUE	JC45
	COTE BOITE	PALCBMC44D
	COTE BOITE	PALCBMC44D
FIXATION	COTE ROUE	EC008
TRIAXE	COTE BOITE	TRIC44
TRIAXE	COTE BOITE	TRIC11
ROULEMENT	COTE BOITE	RLT005
ROULEMENT	COTE BOITE	RLT005

Equivalence to manufacturer references

CITROËN : 3273GQ
CITROËN : 3273AX
PEUGEOT : 3273AY
PEUGEOT : 3273TF
PEUGEOT : 3273GR
LANCIA : 9645248980
FIAT : 1401317488
FIAT : 1485691080
LANCIA : 1401317488
LANCIA : 1485691080
CITROËN : 3283TFC
PEUGEOT : 3283TFC
